Equipped with BIPOD sorting grippers, offering a powerful maximum gripof 240kg and precise handling of 1-25 mm plates, reducing unloadingtime by 60%!
One-click start and fully automated task execution,effectively saving 3-4 operators and reducing laborcosts by 80%!
Seamless integration with factory ERP, MES, and AGVsystems for production task management, real-timemonitoring, and automatic reporting.

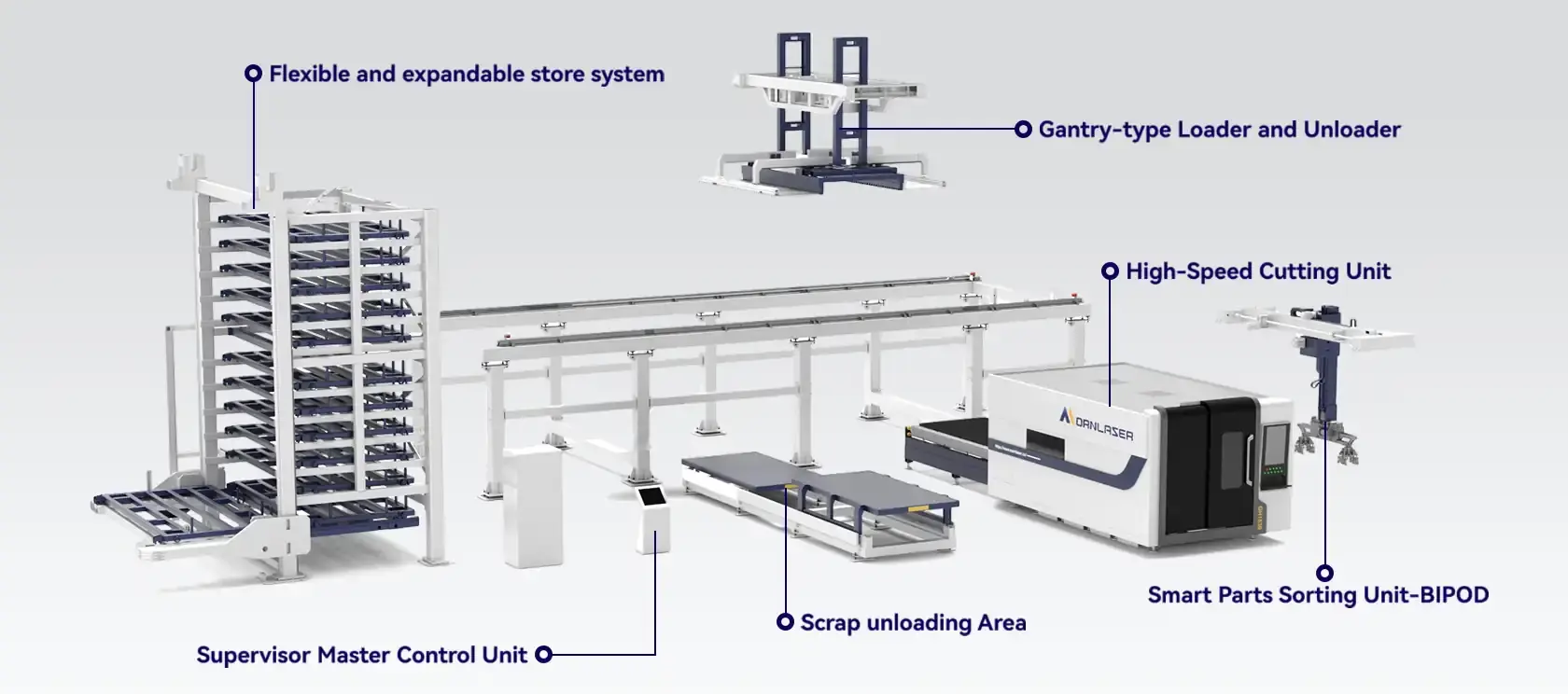

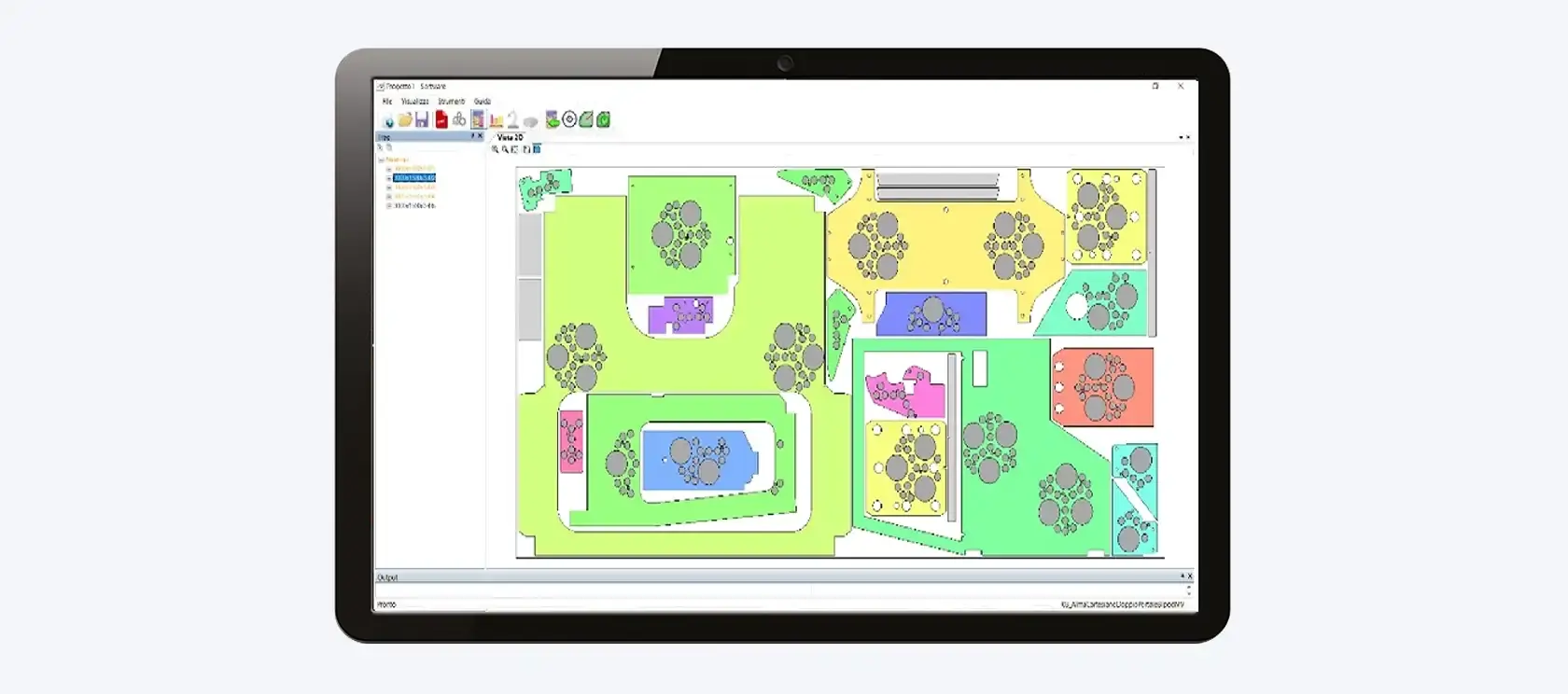

The machine is equipped with a complete software suite, covering nesting.material warehouse management, cutting execution, sorting, stacking andintelligent master control, forming a fully integrated system.

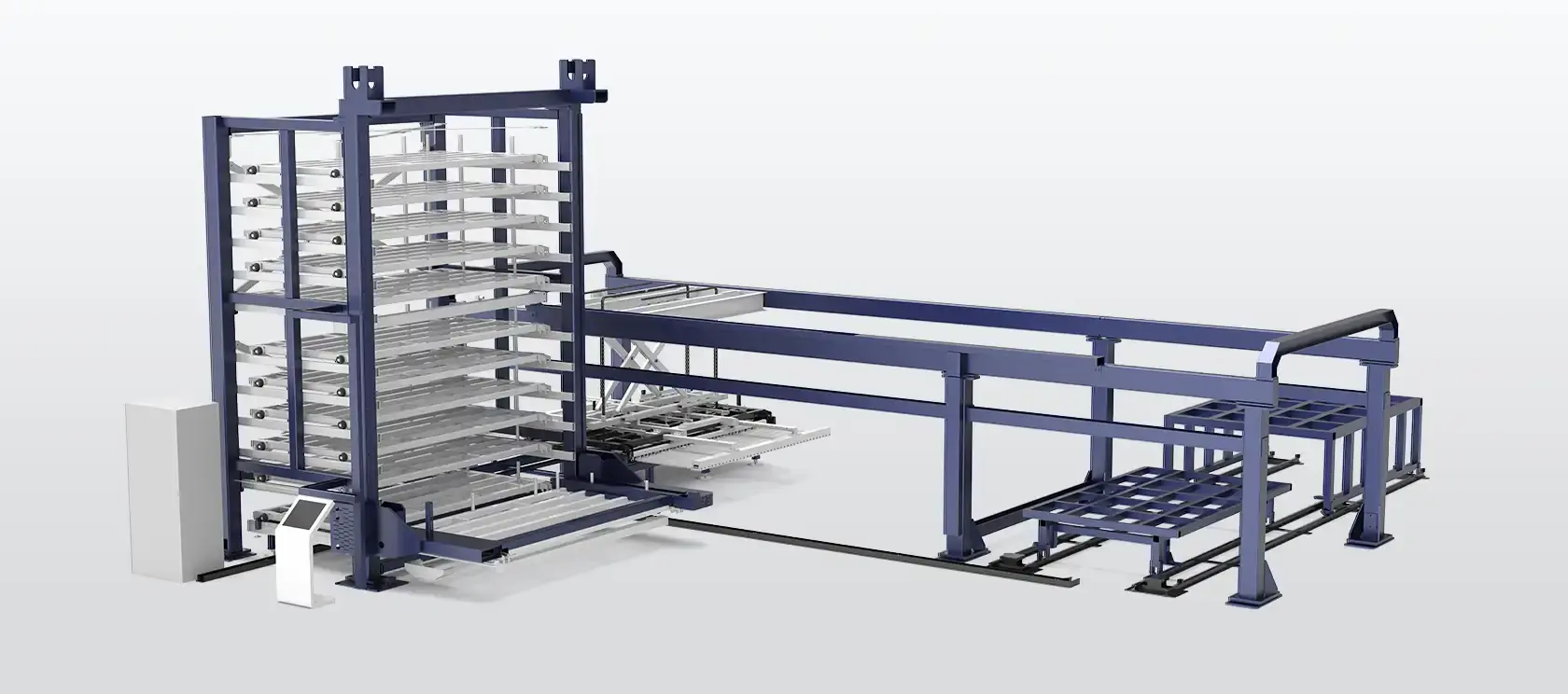

4-15 levels (adjustable according to customer requirements)
Maximum load capacity per cargo space: 5 tons
Allowable stacking sheet size: 3000mmx1500mm, 4000mmx2000mm, 6000mmx2500mm
Servo-driven system with positioning accuracy of +0.5 mm
High-density vacuum matrix suction cups, providing full coverage of the gripping area

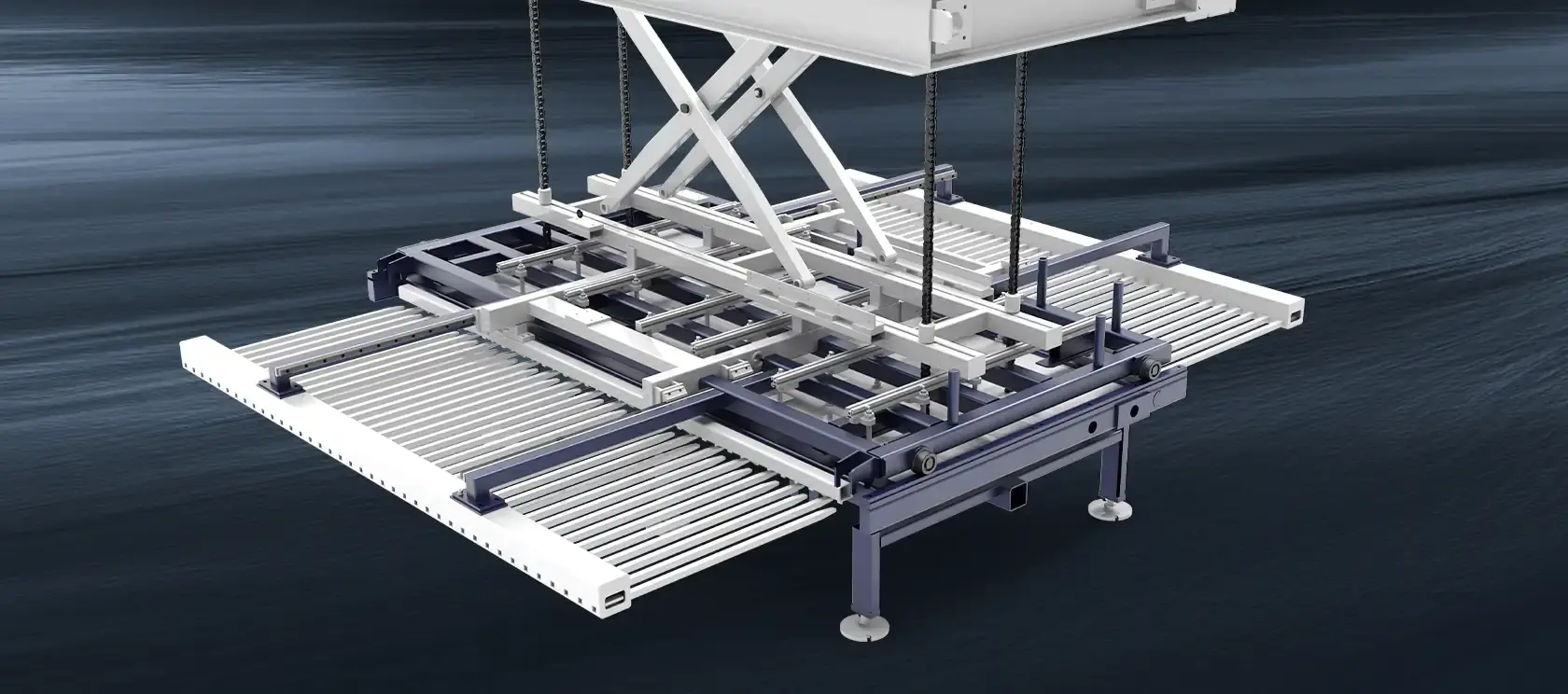

Automatic sheet separation and cornering device
Single-sheet detection device
Power-off and air-off anti-fall function
Maximum gripping force: 240Kg
Positioning accuracy: +0.5mm
Maximum gripping size: 2500mmx1000mm
Minimum gripping size: 150mmx150mm
Multi-axis linkage for fast and efficient operation
Automatically generates gripper pick-up positions
Automatic planning of gripper sorting paths
Automatic generation of stacking position data
| GH3015 Model |
GH4020 Model |
GH6025 Model |
|---|---|---|
| 1-14mm Carbon steel sorted sheet thickness |
1-16mm Carbon steel sorted sheet thickness |
1-25mm Carbon steel sorted sheet thickness |
| Standalone type Load-unload manipulator type |
Composite type Load-unload manipulator type |
Composite type Load-unload manipulator type |
| 500KG Max adsorption weight of load-unload manipulator |
1000KG Max adsorption weight of load-unload manipulator |
2000KG Max adsorption weight of load-unload manipulator |
| Max grab size: 2500mm*1000mm Min grab size: 150mm*150mm Max grabbing weight: 240KG Octopus gripper selection: M002B2510(Standard) |
Max grab size: 2500mm*1000mmMin grab size: 150mm*150mmMax grabbing weight: 240KG Octopus gripper selection: M002B2510(Standard) |
Max grab size: 2500mm*1000mmMin grab size: 150mm*150mmMax grabbing weight: 240KG Octopus gripper selection: M002B2510(Standard) |
| 10 (adiustable per customer) Stereo warehouse layers |
10 (adiustable per customer) Stereo warehouse layers |
10 (adiustable per customer) Stereo warehouse layers |
| 3000KG Max net load per stereo warehouse layer |
5000KG Max net load per stereo warehouse layer |
5000KG Max net load per stereo warehouse layer |
| 3000*1500mm Max allowable stacking size (stereo warehouse) |
4000*2000mm Max allowable stacking size (stereo warehouse) |
6000*2500mm Max allowable stacking size (stereo warehouse) |
| 1250*1250mm Max allowable stacking size (stereo warehouse) |
1250*1250mm Max allowable stacking size (stereo warehouse) |
1250*1250mm Max allowable stacking size (stereo warehouse) |
