Precise bevels formed in one cut, super productivity sharpens your competitive edge.

Fiber Laser Bevel Cutting Machine

V / X / Y/ K
Bevels and other bevels
±45°
Cutting angles
30mm
Maximum steel cutting thickness
20000w
Maximum laser power
Fiber Laser Bevel Cutting Machine
Benefits you can get from our metal plate laser bevel cutting machine
Streamlined process
Ultra-high processing efficiency
Superior bevel accuracy
Reduced bevel process cost
Video Thumbnail

Restart cutting automatically locates the breakpoint, allowing cutting to resume from any breakpoint.

An industry-leading intelligent bus system, stable and reliable, easy to debug, ensures production safety, offers rich features, and delivers outstanding performance.

Create ±45° cutting bevels without the need for additional processing or adjustments, improving efficiency by 75% compared to traditional methods.

Power-off Memory

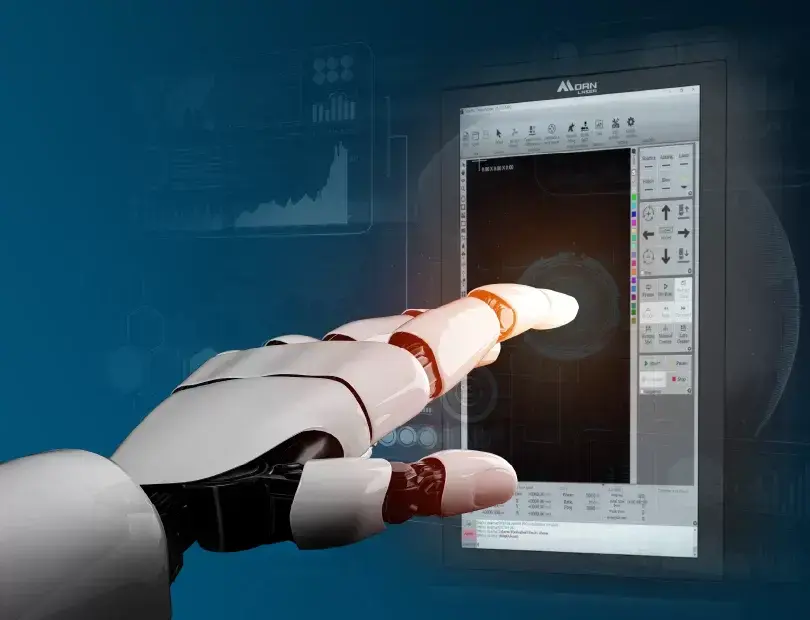

Intelligent Bus System

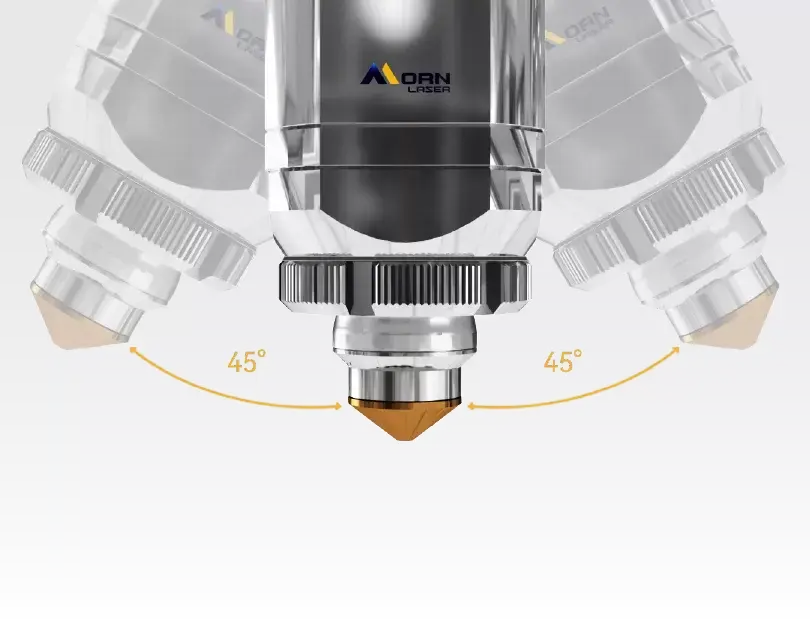

±45° Bevel Cutting

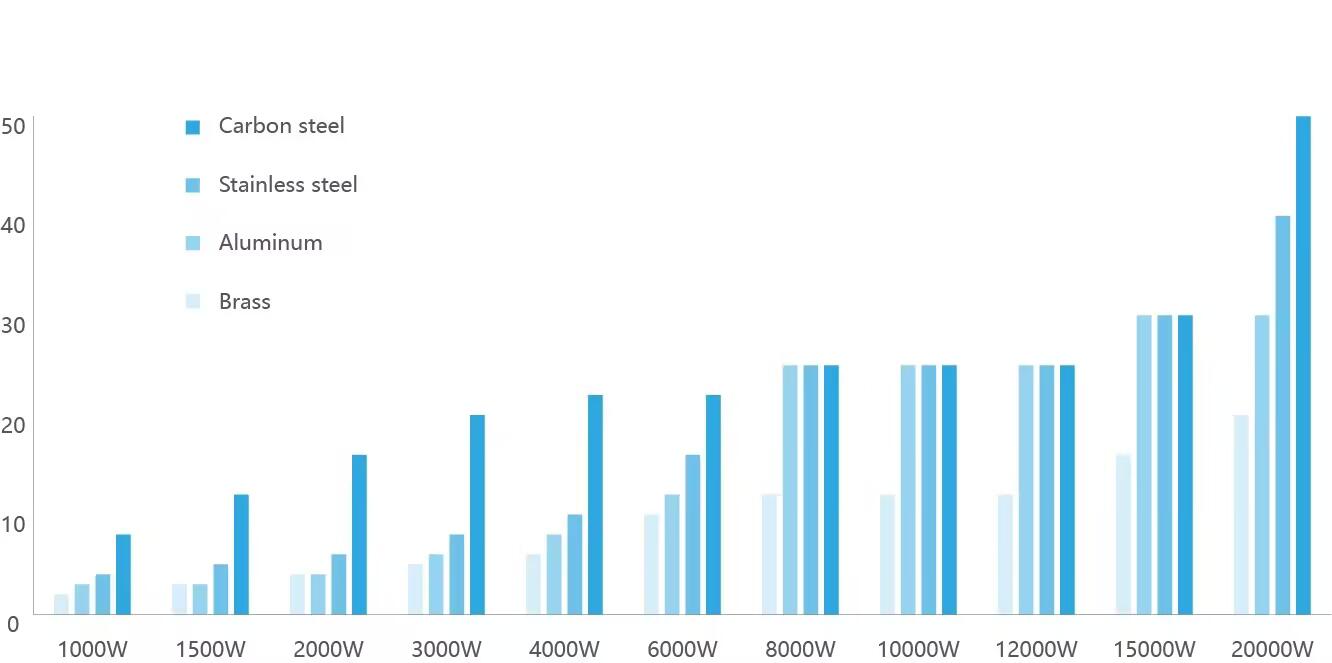

Technical Data Cutting Parameters
ModelFL3015FL4020FL6025FL12020FL12025FL14031
Working Area (Customizable)3000*1500mm4000*2000mm6000*2500mm 12000*2000mm12000*2500mm14000*3100mm
Laser Power6000W/12000W/20000W/30000W/40000W/60000W
Bevel Angle±45° (Expandable)
Repeat Positioning Accuracy±0.02mm
Maximum Idle Speed120m/min
Maximum Acceleration Speed1G
Power SupplyAC380V 50HZ AC220V 60HZ


You may also find these topics interesting

Product Image

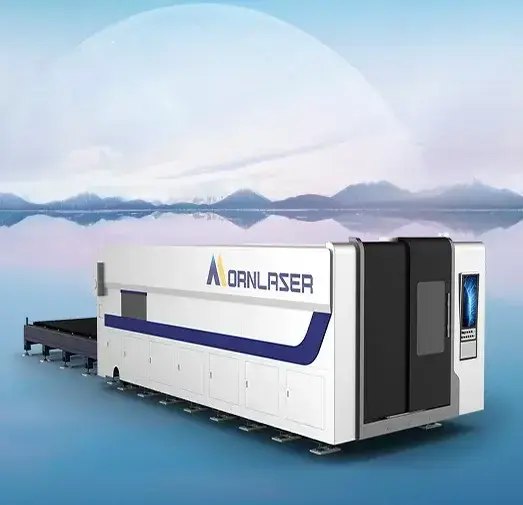

Full Enclosed Fiber Laser Cutting Machine

With an integrated design, no disassembly is needed for delivery, and it can be directly put into a container, saving shipping cost.

FIND OUT MORE
Product Image

Sheet and Tube Fiber Laser Cutting Machine

Change instantly from sheet to tube without the need for additional setup or tooling. Use your time making products instead of making changeovers. It’s the ideal way to maximize your return on investment.

FIND OUT MORE
Product Image

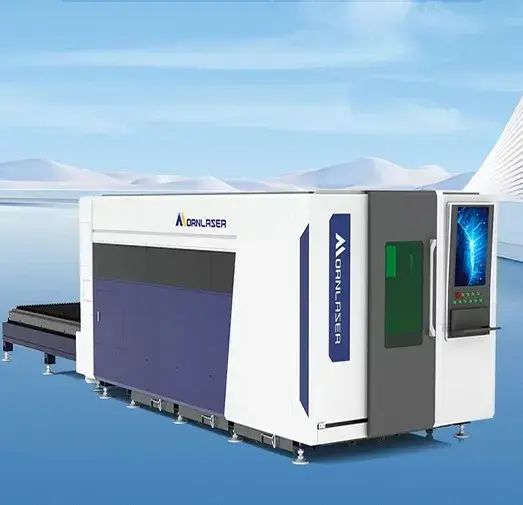

Full Cover Fiber Laser Cutting Machine
