Electro Hydraulic CNC Press Brake

Name: Electro Hydraulic CNC Press Brake
Brand: Morn Laser
Price: 24000 USD
Availability: InStock

Benefits you can get from our CNC sheet metal bending machine

Stable performance

Easy operation

High efficiency

Energy saving

The push-pull upper module quick clamping device offers high precision and easy module changes, significantly boosting production speed.

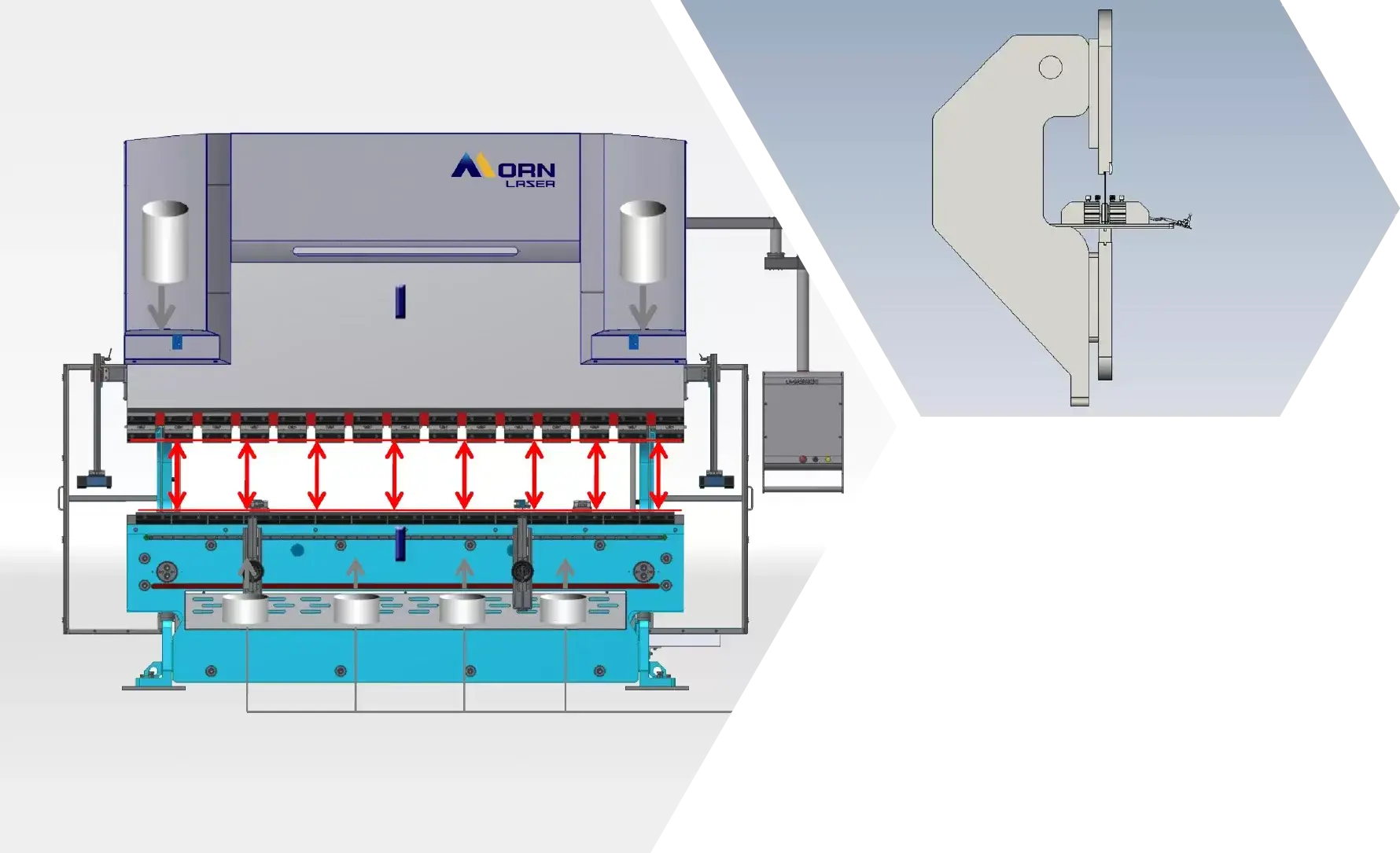

Eliminates slider deformation effects, with automatic compensation adjustments for easy and accurate operation.

Automatically detects angle errors and adjusts cylinder stroke configuration, offering high displacement accuracy and fast response speed.

Quick Clamping Device

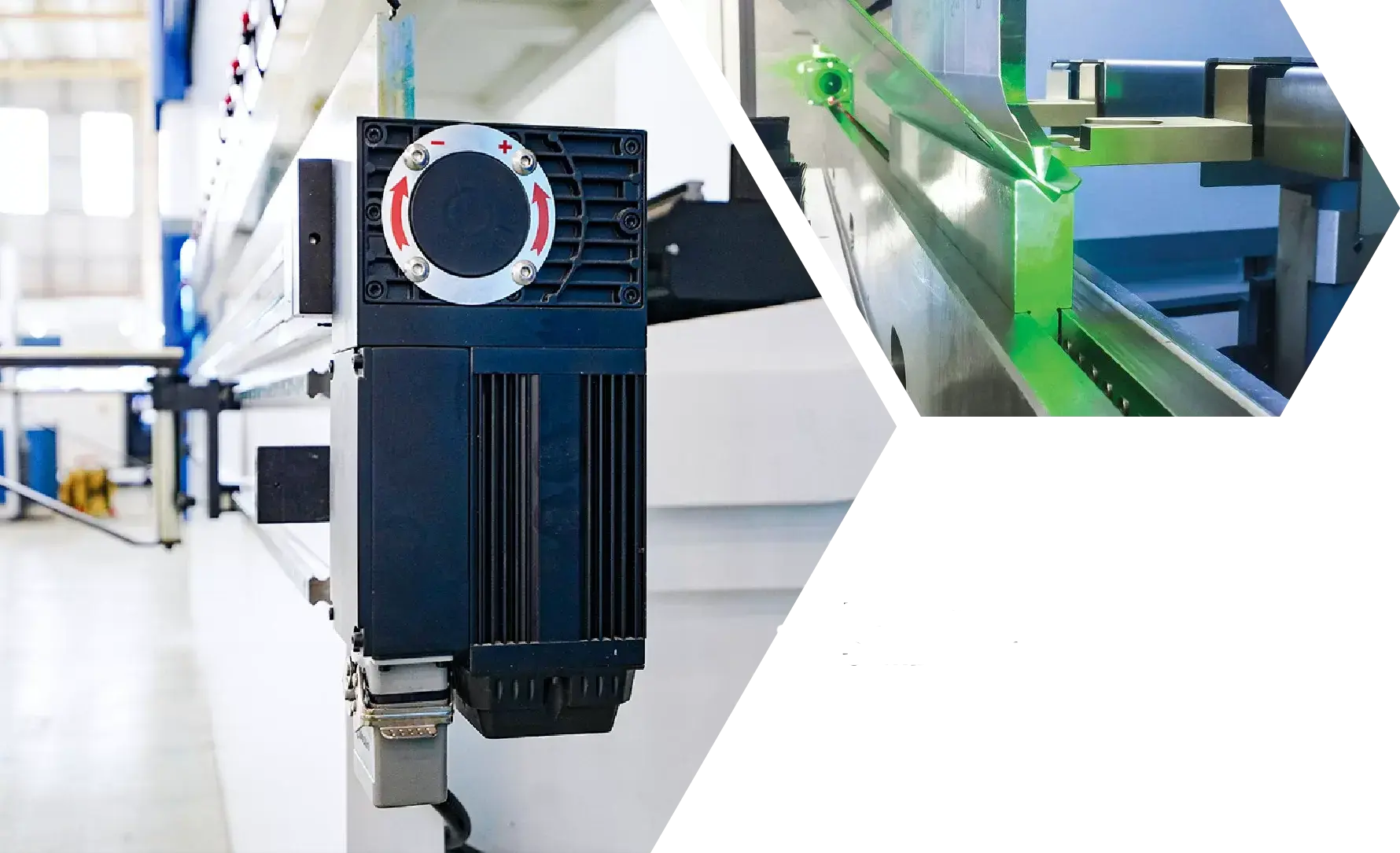

Mechanical Deflection Compensation

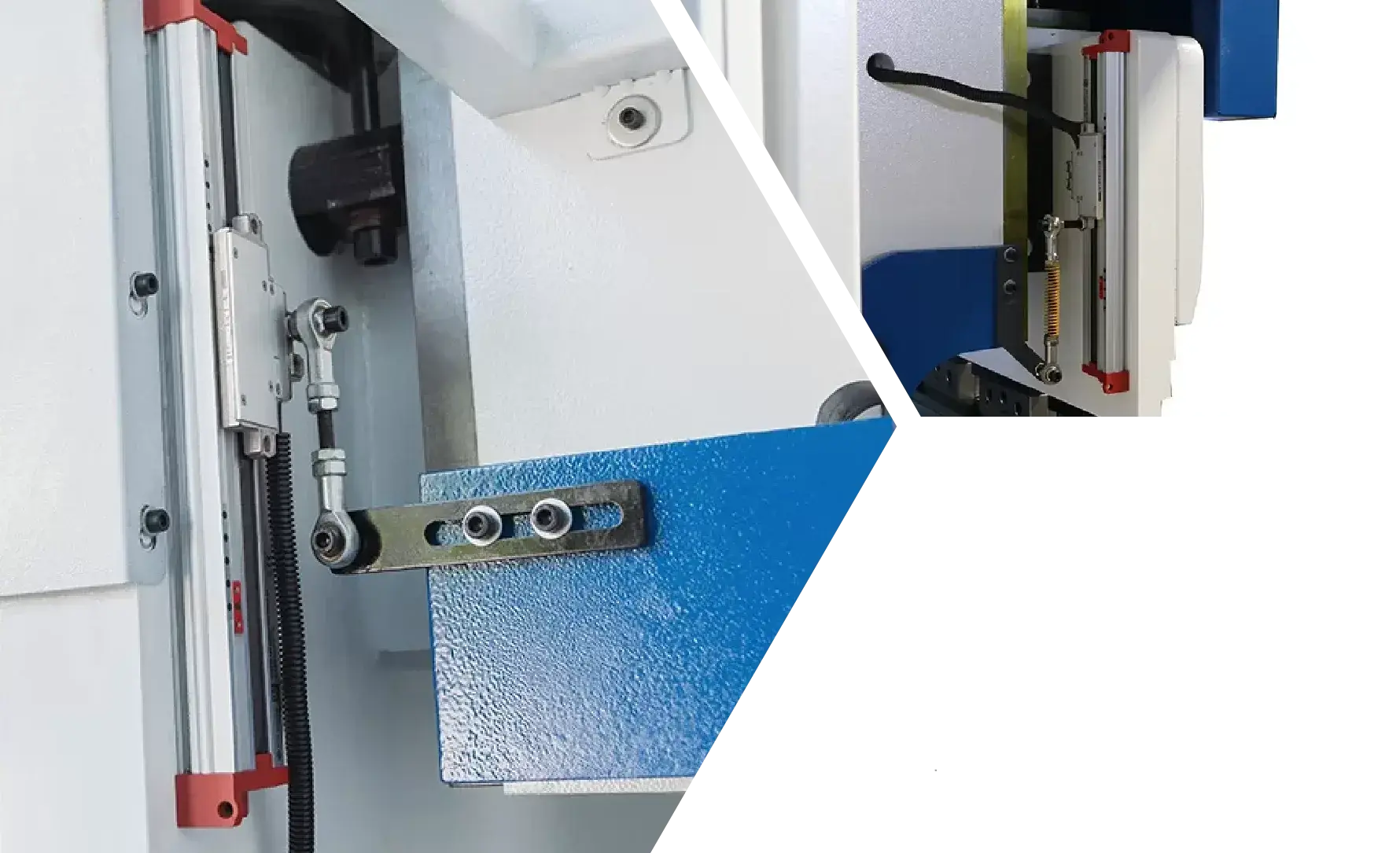

Optical Scale

Technical Data Features

Machine Type	30T/1600	40T/2500	63T/2500	80T/2500	100T/5000	125T/2500	160T/5000	200T//4000	250T/4000
Nominal Force (KN)	300	400	630	800	1000	1250	1600	2000	2500
Worktable length (mm)	1600	2500	2500	2500	5000	2500	5000	4000	4000
Poles Distance (mm)	1340	2000	2000	2000	4000	2000	4000	3100	3100
Throat Depth (mm)	180	220	300	300	400	400	400	400	400
Slider Travel (mm)	80	120	120	120	160	160	200	200	250
Height of Max Open (mm)	250	320	370	370	410	410	460	470	550

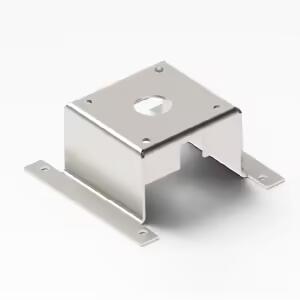

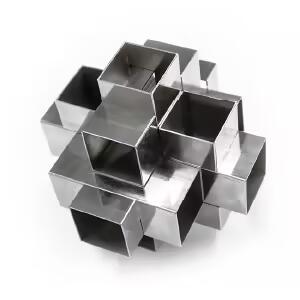

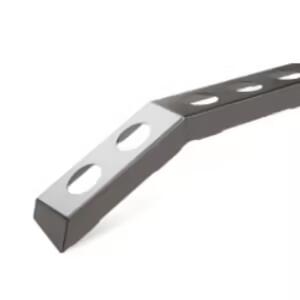

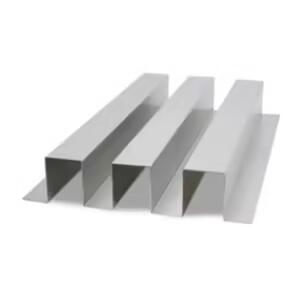

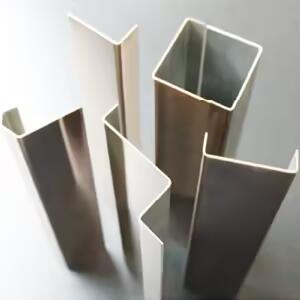

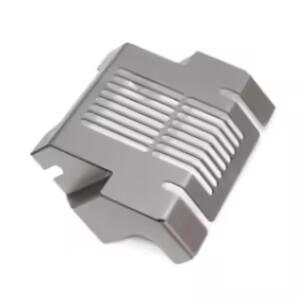

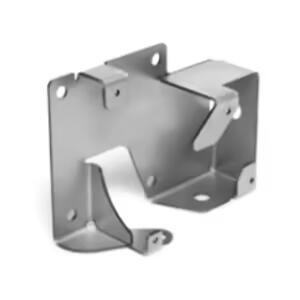

Application & bending samples

Favored by automotive manufacturing, construction engineering, machinery manufacturing, sheet metal processing, and construction industriesthis CNC press brake is perfect for bending metal plates, including carbon steel, stainless steel, aluminum, and copper.

Application & bending samples

You may also find these topics interesting

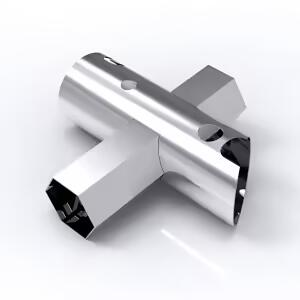

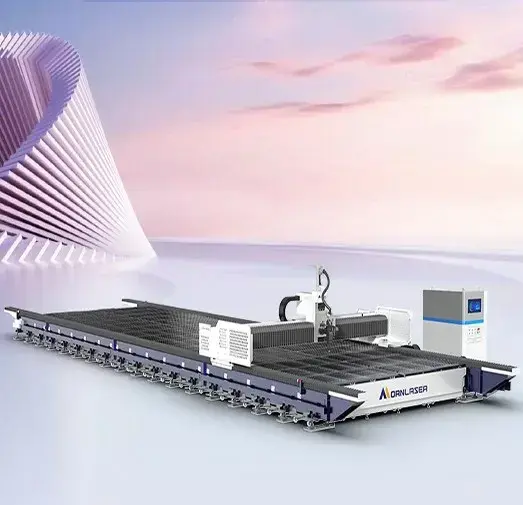

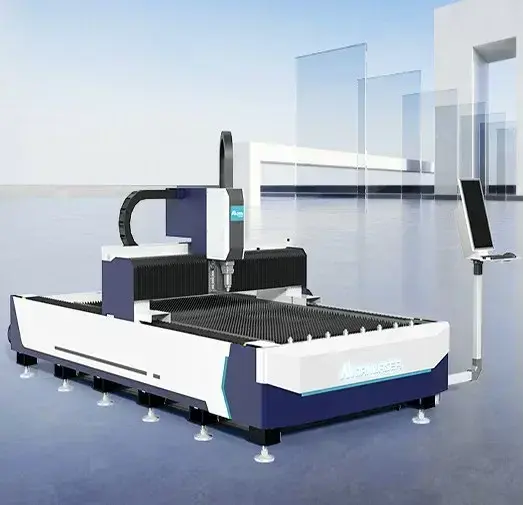

Sheet fiber laser cutting machine

Cutting and then unloading takes up valuable time and effort, automate this process with Morn Laser’s exchange table sheet laser cutter and become more efficient! With just an immediate switch, you will keep your production line flowing with no stop.

FIND OUT MORE

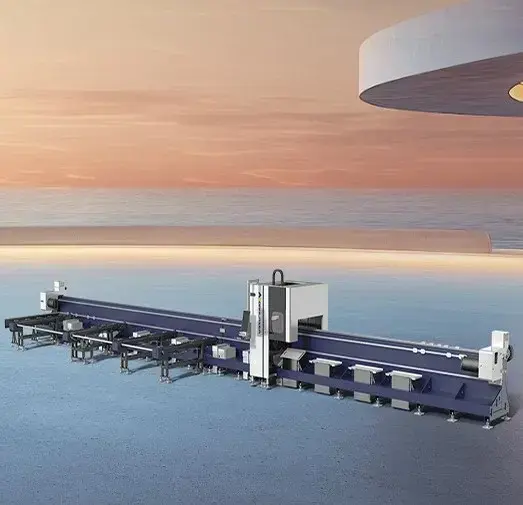

Three-chuck Tube Laser Cutting Machine

Three-chuck linkage cutting boosts your tube utilization with virtually no tailings. Three-position tube clamping plus follow-up supports ensure stable tube feeding and prevent long tubes from bending. As a result, you profit from high cutting precision, great efficiency and low material costs.

FIND OUT MORE

COMPANY

Office Address:
17F, Building 5, Qisheng Mansion High-Tech Zone, Jinan, Shandong 250101, China
Email: info@mornlaser.com
Mobile/WhatsApp/WeChat: +86 151 6916 6350

SOCIAL MEDIA

Get a Quote

Highlights	describe
Environmentally friendly and efficient operation	Energy-saving, eco-friendly, and high-efficiency CNC bending machine
Closed loop servo hydraulic system	Equipped with a unique closed-loop servo hydraulic system for superior economic performance
Top brand servo drive	Back gauge driven by a digitally controlled AC servo motor from a globally renowned brand
High precision transmission system	Precision ball screw drive with large lead, guided by linear guide rails for enhanced accuracy
