Morn fiber laser metal cutting machine delivery



Because of the high cutting performance, now Morn fiber laser metal cutter is more and more popular in the world. And we have sell many machines in the world. Morn customers are all satisfied with Morn machines, both for our machine high quality and our technical support and service.



Last week, we just delivered another MT-L1530F fiber laser cutting machineto our customer. Now we are glad to share some our Morn machine pictures with you as follow.

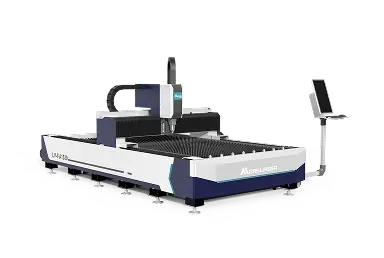

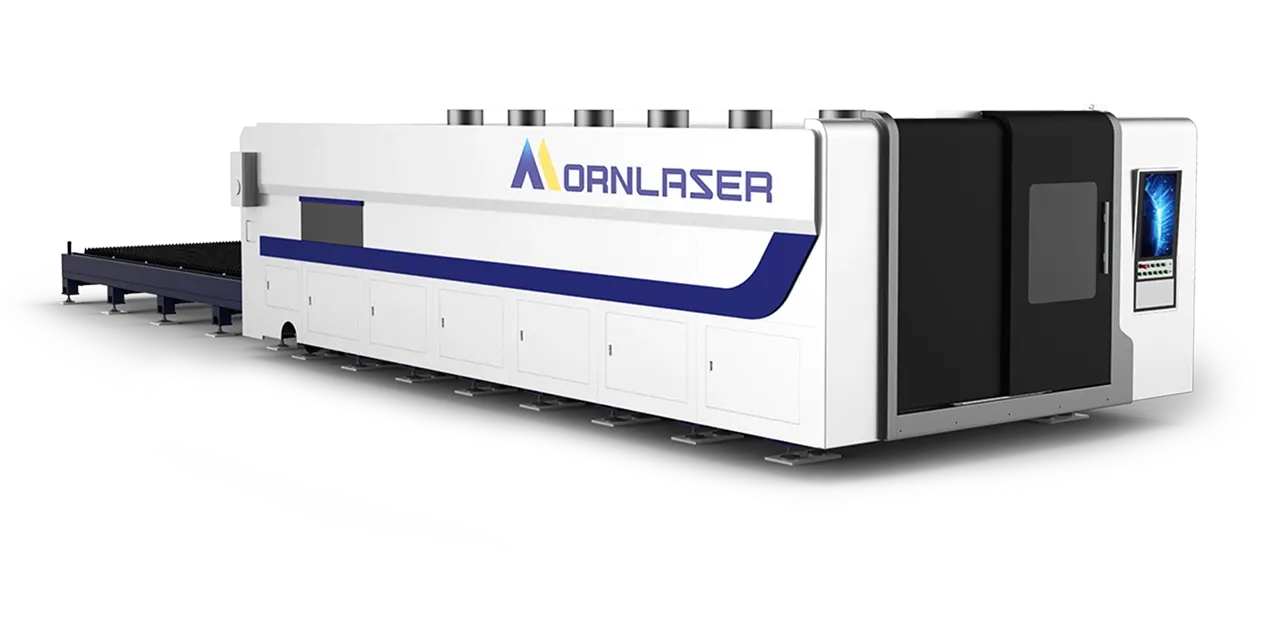

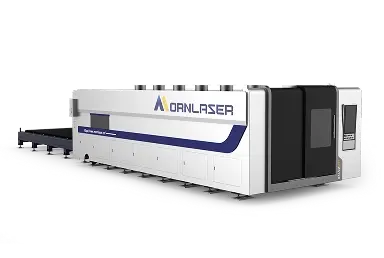

MT-L1530F fiber laser metal cutter:
Now this machine is popular in the world, because of its high working speed, and high cutting accuracy for steel metals.

MT-L1530F morn fiber metal cutting machine main features:
Great performance: identical cutting quality on any cutting point is realized through fiber transmission.
High efficiency: the rapid cutting speed is two times higher than co2 laser machines.
Low consumption: it is environment-protecting and energy-saving machine and power consumption is reduced by 20%-30% compared with co2 laser.
Maintenance-free: the machine is maintenance-free, there is almost no any part need to change often.



Morn MT-L1530F Application Material:
Professioanl for metal cutting with high accuracy, such as stainless steel, mild steel, carbon steel, iron, galvanized?steel, Tisco?manganese?steel, etc.



Morn MT-L1530F Application Industry:
Fiber laser cutting system
is widely used in the sheet metal cutting, tube metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, household appliances, decoration advertising, etc.



If you are not sure whether the fiber metal cutting machine suit to your work or not. Please feel free to contact us, and tell us your materials, size and thickness. Then we will help to check and recommend the most suitable machine configurations to you.
Welcome your inquiry for our morn laser machines.

Article Source:http://www.morntech.com/news/fiber-laser–metal-cutting-machine-delivery.html

Morn Machine:Laser Cutter Or Engraver

Good morning everyone. This is Morn News in Wednesday morning. Thanks for your attention and watching our news.



Image source: Festival gifts made by Morn CO2 Laser Machine

Last Wednesday, we introduce to you how to choose a CO2 laser engraving and cutting machine, today let us introduce to you that the difference between laser engraver and laser cutter.

Laser Cutter Or Engraver

It is also important to appreciate that there is a distinction between a laser cutter and a laser engraver. A laser cutter is mainly optimized to get the task done in the quickest time possible, which means that you may well have to compromise a little on quality in order to achieve a quicker turnaround time on the job.

If you are mainly focused on achieving a higher engraving quality as your priority, it would often be better to opt for a laser engraver, which will take longer to complete the task but deliver a better end result in terms of quality.

You will find that an engraving machine is suitable for offering you a cleaner cut on a range of materials, but they lack the same laser power as their laser counterparts, which does mean that they will not normally be able to cut through the same thickness of material.

Bear these pros and cons in mind, as it is an influential factor when deciding which type of machine to buy. In general terms, a laser cutter is often considered to be a more suitable solution if you are going to be using the machine in an industrial production environment, whereas a laser engraver gives you more options for customization, which makes it a good choice for small businesses who want that degree of flexibility.



Ok. This is Morn News on Wednesday, thanks for attention and watching, see you tomorrow, Morn News always with you!



Article Source: http://www.morntech.com/news/laser-cutter-engraver.html

Can I buy a home using laser engraver?

More and more people asked us whether can buy mini CO2 laser for home using. MORN answer is yes, of course. Actually, buying laser engraving machine is very good choice for home processing gift or craft.


CO2 laser engraving machine is the economic and intellligent laser engraving machine with small size and beautiful apperance.It has motorized table auto focus, USB offline and newest software which can support coreldraw, autocad, etc

 Low price co2 laser marking machine is not only can mark flat materials marking and engraving, but also can work on round materials, such as bottles, cups, etc. With front and back open door, the machine is also suitable for extend long materials. There has never been an easier system to set up and start using. Connect the laser to your computer or through USB, you can use it directly. Only need one machine, you can do what you want.

It is suitable for acryic, MDF, wood,plastic, fabric, leather, rubber, paper and other non metal materials cutting and engraving. It is professional for advertising industry, decoration industry, art and craft industry , etc.

And September and October is the most suitable month for buying the laser machine. MORN laser machine for sale now.The price is cheap and has a lot of free gift. The more machine you need, the more discount you get. If you pay 100% T/T before Oct., you can get more surprise.

Morn has produced laser machine for many years, we have professional designer and technician in this area. Our Morn team is sunny and positive, we will try our best to offer each customer the best service. If you have any question about he CNC router or laser machine you can contract us directly. We will try our best to help you.

Mechanical machining CNC machine tools analysis

With the rapid development of the global machinery manufacturing industry, numerical control technology in the field of mechanical processing more widely, typically associated with a variety of CNC machining equipment, numerical control machine tools from speaking alone, it can be divided into drilling and milling machining centers and milling machining key center turning center grinding centers, they are characterized by one-time business investment NPC, the machine takes up a large space, the magazine capacity of more processing time is short, high positioning accuracy, durability, reliability, product updates quickly, Basic fully enclosed structure, safety or. Now many industrialized countries in the world have been widely used in the production of CNC machine tools, today a country of production and the degree of application of CNC machine tools, has become the measure of a country’s level of industrialization and technological level of an important symbol. In addition, there are some simple CNC machine tools, such as CNC drilling CNC lathe CNC milling CNC grinding machines and other home this category. Such numerical control machine tools, also known as economic NC machine tools, which are characterized by cheap economical and practical, low-cost one-time business inputs, high positioning accuracy, processing costs less. Situation before the domestic use of CNC machine tools CNC machine tools in the early years of our country has set off a boom in the development of CNC machine tools, but at the time of the control system is mainly used discrete electronic components, unstable, unreliable and can not be stably and reliably used in production . In the introduction and absorption of foreign advanced technology, based on the Beijing Machine Tool Research Institute has developed economical CNC system and full function numerical control systems, aerospace unit developed CNC system. At present, China has been able to supply the eve of mass production type numerical control systems, can basically meet the production needs of the country Machine Tool Plant, has made people step of CNC production start of a new stage of development, reached the international advanced level in the early eighties. The use of CNC machine tools to meet the needs outlined the development of new technologies to keep up with the pulse of market development, I also have been introduced from abroad a number of CNC machine tools, foreign production of large CNC machining centers, quality is better than homemade, and domestic small economical CNC, its quality than much less abroad, the price is much better than the foreign machine.

co2 laser cutting machine ceramic substrate processing application

To the ceramic substrate is divided into separate sections, you can use laser marking machine carved (drilling) series of local (not through) high tolerance holes. About a third of these holes deep substrate to produce late ruptured fault line priority. Other techniques can also be processed passage slots on the substrate to determine the morphology and fine pattern.

Since conventional ceramic having an absorption characteristic, CO2 lasers have become the choice of laser. Pulsed CO2 laser beam energy is absorbed in the ceramic surface, resulting in local heating, melting and vaporization. Figure 2 showing a top view of an alumina 0.0045 inches crossed, indicating the use of a relatively long pulse period (about 75-300m, depending on thickness) under low energy in the Gaussian beam energy distribution in the edge, because partially melted due to the heat affected zone (HAZ).
Over the years, CO2 lasers to shift work a long time, in terms of gas and energy will consume a lot of resources, but also called for a maintenance plan. In addition, the typical pulse parameters used for this application means a sealed tube CO2 laser technology is not suitable. Overall, when after years of extensive improvements, CO2 lasers in terms of reliability and maintenance problems still located behind other technologies. During maintenance, the beam quality of these lasers is easy to change; the minimum spot size can be achieved also vulnerable to long-wave effect. Terms alone, ceramic laser beam absorption characteristics make this technology on the market segment for a long time.

laser cutting machine practice

To ensure reliable operation of laser cutting machine, extend equipment life, improve the quality of processed products, should strictly abide by the rules.
A laser cutting machine operating procedures
1, open the power supply switch, the output voltage is switched to the regulator mode, you can not use electricity.
2, turn on the machine power switch (□ ON).
3, connected to the machine control power supply (key switch).
4, until the system self-test is complete, the machine axes referenced.
5, start the chiller, check the temperature, pressure (normal pressure is 5bar).
The chiller power for 3 minutes, the compressor starts, the fan rotates and starts refrigeration cooling.
Note: Chiller heat sink to be cleaned regularly to avoid excessive dust affect work, distilled water tank replaced every four months, do not use tap water or purified water.
6, open the nitrogen bottle, oxygen bottle, check the cylinder pressure, start air compressor, cold and dry.
Note: air compressor, cold and dry filter must be drained every morning, outside the optical path of the lens side before blowing a filter must be checked at any time, without water or oil, or contaminated lenses. The need to improve the gas supply, so that compliance.
7, to be reduced to a set temperature chillers (set at 21 degrees), and then turn on the laser total power, open the low-pressure (white button).
8, when the laser panel appears the word “HV READY” when the high pressure.
9, when the laser operation panel appear the words “HV START”, the laser light is red, the upper right corner of CNC system previously displayed “LASER H-VOLTAGE NOT READY” alarm disappeared, indicating that high pressure is normal, the laser enters the standby state.
10, before cutting to confirm the material type, material thickness, material size.
Note: Check all the cutting head is very correct, cutting non-metallic materials must contact cutting head (plus non-metallic detection rings).
11, adjustment plate, so that the edge of the machine parallel to the X and Y axes and to avoid cutting head outside the working range of the plate.
12, the Z axis to cut from the starting point, the simulation program to be executed to ensure that does not appear to exceed the soft limit alerts, enter edit mode, adjust the power, speed, punching time depending on the material type and thickness.
13, to cutting carbon steel plate, choose oxygen in manual mode, adjust the barometer to cut the desired pressure value. Then check the focus position, the coaxial checking procedures to ensure that the laser beam passes through the nozzle center, Z axis servo to the plate surface, adjust the nozzle from the board to determine the distance (adjustment potentiometer control box).
14, to be above the normal, in order to switch to the execution state, cutting the workpiece.
15, where there is the process of cutting dross, slag, or other abnormal conditions return, should be suspended immediately, identify the cause, the problem is solved and then continue cutting in order to avoid damage to the device.
16, the work is completed, shut down in the following order:
1) The Commissioner laser hypertension.
2) In the laser panel is closed low pressure.
3) Disconnect the laser power supply.
4) off the chiller.
5) Disconnect the machine control power supply (key switch), disconnect the machine power switch (OFF).
6) off cold and dry.
7) off the air compressor.
8) Turn off the nitrogen and oxygen valves.
17, disconnect the power supply.

Two CNC laser cutting machine safety operation (PRC laser)
1, should be checked before starting the gathering mirror, the mirror is clean, lasers, machine tools, pneumatic, water is smooth, leaks.
2, connected to the main power tools, power chillers, air compressors and dust blower power.
3, open the laser working gas CO2, N2, He and auxiliary gas O2 cylinder valve.
4, open the cold press, cold and dry.
5, the pressure of each gas is adjusted to an appropriate value.
6, connected to the machine control power supply, laser power (note open order).
7, start laser
Closing the “laser start” switch, vacuum pump → turbines work on the machine control panel (in this case the laser cavity system pressure is maintained at 100Torr, water flow should be maintained at 13 gallons / minute, laser lighting panels work light sequence Vacuum Pump On → Compressor On → until the laser panel appears “Hold”).
8, the light
“Power Conditioning” Turn the knob counterclockwise to the minimum, ON “high pressure start” switch and “electronic shutter” open light on the machine control panel. At this work lights “high start” lights, lasers into the cold start state, about 5 minutes to start the end of the cold laser, the laser into the normal state → “lasers normal” lights.
9, before using the laser beam and the nozzle inspection coaxial circumstances to protect the gathering mirror; adjusting the focus level according to the thickness of the sheet; adjust the “pulse frequency” in the form of “up time” and “duty cycle.”
10, start-up and use, note the following:
1) In the open shutter, in addition to the workpiece to be machined, the people and other objects should not be within the scope of the laser irradiation.
2) Do not leave the operator during operation.
3) Once the abnormal findings, immediately press the emergency stop switch.
4) Always check the cooling water temperature, flow and working gas pressure.
11, at the end, turn off the machine in the following order:
1) counterclockwise rotation adjustment function “power adjustment” knob to the minimum.
2) Turn off the “electronic shutter” switch.
3) Close the “high pressure start” switch.
4) Close the “laser start” switch.
5) the turbine stopped running open “Manual Backfill” button laser board.
Manual Backfill light red → Manual Backfill lights go out, backfilled end.
6) Turn off the laser power.
7) Turn off the machine power.
8) Turn off the power chillers, air compressor and refrigeration dryer power switch.
9) off the laser working gas CO2, N2, He, auxiliary gas O2.
10) Turn off the air compressor and refrigeration dryer.
11) clean site preparation and CNC machine tools.
Three bus safety rules
1. Check
1) Make sure the threaded connection between each original and reliable.
2) Make sure the system cylinder valve, globe valve (the valve hand wheel clockwise close, counterclockwise open), a pressure reducer are closed (regulator handle counterclockwise unscrewed).
2, open
1) followed by slowly open the cylinder valve on all cylinders, open all of the high-pressure valve. Confirm primary and secondary pressure relief valve in the closed
Closed state
2) adjusting the level of the left and right sides of the regulator output pressure P1, P2, so that P1 is greater than P2 0.05-0.1Mpa, such a system is to supply the left. Adjust the output pressure of the secondary pressure reducer P within 0.4Mpa range (that is, the system output pressure P, P2 is about 1.0-1.5Mpa)
3) When the left side of the exhaust gas cylinder, regulator output pressure on the left side becomes smaller, the system will automatically switch, turn the right side of bottled gas. In this case, the right of the output pressure adjusted to P1, in the replacement of the cylinder on the left side, the left side of the reduced output pressure adjusted to P2. The system can continuously supply. Although the primary regulator output pressure changes as the left and right sides of the cylinder will be continuously adjusted to, but because there is a secondary regulator for secondary pressure, the output pressure of the system remain the same, always P.
3, the replacement of cylinders
1) wear clean gloves, beware of grease, and other debris into the pipe pollution.
2) Turn off the side of the cylinder valve and cylinder valve.
3) Release the metal hose and cylinder valves threaded connections.
4) slightly open a new bottle of cylinders, cylinder valve mouth blowing dust, and then closes.
5) The high-pressure metal hose and cylinder connection, make sure that threaded connections are tight, secure.
6) Open the bottle valve, globe valve, standby, ready to take over the other side of the gas supply.

Four laser cutting machine specification
1. Laser
1) Make sure the laser power from the power supply of “regulated output” unavailable “mains” output.
2) ensure the quality of the laser gas.
3) When changing cylinders, first clean the lip, and then open the gas to blow off the debris inside the bottle mouth.
4) In order to ensure the cleanliness of CP lasers and laser PRC front window to replace ordinary compressed nitrogen as a protective gas. The use of high purity nitrogen (99.999%) as a protective gas ROFIN laser.
5) ensure that the cooling system is reliable and stable operation, the temperature, pressure, flow to meet the requirements of the laser, so as to ensure reliable and stable operation of the laser.
6) prohibits the operation of laser openings, to ensure safety.
7) is a laser built a small room, and the outside world, to ensure that dust, indoor installation of air conditioning, cooling and dehumidification, the ambient temperature and humidity to ensure that the four seasons below the dew point
8) open access lasers, ensure high-voltage power supply is disconnected and locked. Before contact charging device, make sure that the high pressure on the ground discharged.
9) According to the state of the laser gas consumption is set to increase gas consumption, can improve the laser quality, but increases operating costs.
10) regular observation of the cooling water flow, temperature and pressure, water temperature, laser discharge current, turbine sound.
11) regularly examine the laser.
2. Water-cooled machines
1) Make sure that the water-cooled machine stable power supply, phase sequence is correct.
2) Make sure the top of the water-cooled engine cooling fan unobstructed.
3) water-cooled machine outside temperature ≥5 ℃.
4) Daily clean up the dust on the heat sink.
5) ensure that the cooling water components meet the requirements.
6) Note that the water temperature is set with the laser, respectively.
7) weekly check the water level, water quality, pipeline.
8) changes in water quality and PH value, every 3-6 months to replace cooling water.
9) each quarter cleaned once a water filter cartridge, the filter is changed once a year (PRC).
3. Host
1) strictly in accordance with the sequence of operation on, off.
2) prohibit non-qualified personnel to operate and maintain the machine.
During 3) machine work, prohibited people and goods entering the table, to ensure human safety; the operator to focus, dangerous situation to press “stop” button as soon as possible.
4) adjust the machine light path, in follow-up mode adjustment of the cutting head must be in the correct sequence of operations to ensure human safety.
5) each boot, to return to the reference point, cleaning up focusing lens, collimated beam – coaxial nozzle, open cutting assist gas bottle pressure should not be less than 1Mpa.
6) checked once a week outside of the light path shielding gas, cold road cabinet, cooling water, air compressor, cold and dry, the water discharge filter.

CO2 laser cutting detailing electromechanical integration of key technologies

CO2 laser cutting several key technologies is optical, mechanical and electrical integration, integrated technology. Parameters, machine performance and precision CNC system with a laser beam directly affect the efficiency and quality of laser cutting. Especially for high cutting accuracy or greater thickness of the part, you must understand and resolve the following key technologies:
1, focus position control technology:
Laser cutting is one of the advantages of high energy density beam, typically> 10W / cm2. Since the energy density 4 / πd2 proportional, so the focus spot diameter as small as possible, so as to produce a narrow kerf; and focal depth is proportional to the focal spot diameter and also the lens. Focusing lens focal depth is smaller, the smaller the diameter of the focus spot. But cutting spatter lens from the lens workpiece too easily damaged, so the general high-power CO2 laser cutting is widely used in industrial applications 5〃 ~ 7.5〃 “(127 ~ 190mm) focal length. The actual focal spot diameter 0.1 ~ 0.4mm between. For high-quality cutting, the effective depth of focus and the lens diameter and also cut material concerning, for example by cutting carbon 5〃 lens, the focal depth is within the range of the focal length of + 2%, which is about 5mm. So the focus control with respect to the cut surface of the material is important to take into consideration the position of the cutting quality, cutting speed and other factors, in principle, “Metallic Materials 6mm, the focus is on the surface;> 6mm steel, and focus on the surface;> 6mm stainless steel focus specific size is determined by the experiments below the surface.
Simple method to determine the focus position in the industrial production of three ways:
(1) Print method: the cutting head from the top down movement in the plastic plate laser beam printer, print the smallest diameter of the focus.
(2) the swash plate method: a vertical axis at an angle of plastic plates pull it horizontally, looking for the smallest of the laser beam focus.
(3) Blue Spark method: remove the nozzle, blowing air, the pulsed laser in a stainless steel plate, the cutting head from the top down motion until the blue spark is maximum focus.
For light path cutting machine, since the beam divergence angle, cut the proximal and distal length of time the process is different, there are some differences to focus in front of the beam size. The larger the diameter of the incident beam, the smaller the diameter of the focus spot. In order to reduce the beam size changes due to changes brought about before the focus of the focus spot size, domestic and foreign manufacturers of laser cutting system provides some special means for users to choose:
(1) collimator. This is a commonly used method in which the output of CO2 laser tube plus a parallel light beam expander process, after the beam diameter of the beam expander becomes larger divergence angle becomes smaller, so that within the proximal and distal cutting operating range before focusing beam size close to the same.
(2) adding a separate lower shaft moving the lens in the cutting head, and control it from the material to the nozzle surface (standoff) of the Z-axis is two separate parts. When moving the machine table or the optical axis, the beam axis from proximal to distal F also move the beam diameter of the focused spot is consistent throughout the processing area. As the picture shows.
(3) controls the focus lens (usually metal reflector focusing system) of water pressure. If the focus before leaving the beam size smaller focus spot diameter becomes large kwt_8wt, automatic control of water pressure to change the focus of curvature of the focal spot diameter becomes smaller.
(4) increase x, y direction compensating optical system on the light path cutting machine. That shortens the compensating optical path when cutting the distal end of the optical path increases; conversely reduced when cutting the proximal end of the optical path when the compensating increase in the optical path, the optical path length in order to maintain consistency.

CNC router

Morn is new high-tech company which is specialized in R&D,Produce and Sell CNC machines.

Our products include CNC router machine, laser engraving and cutting machine,

laser marking machine, cutting plotter,etc.Now Rotary
Cylinder Engraving Series Machines is more popular among them.

Ok, let us offer you more details about Rotary Cylinder Engraving Series Machines.multi-spindles CNC machine

Performance and Features:
Body,head and tail seat all of these are cast iron structure with high rigidity.

The other assembly parts all adopt fine iron.All the castings aare tempered,
ensuring the size accuracy,material stability and the high anti-deformation
capacity.

The CNC parts:
The machine adopts CNC module with high reliability.The programme is developed independently

by our company.In this way,it’s working stability,after-sale service and installation and deployment are secured.

The operation part:
Segment processing method and numerical control system,simple and
friendly operation interface, a full chinese characters hint and size directly to
the input of the simple method.

The main control programme:
Chinese programme and CNC programme.
The execution part: high accuracy servo motor drive,ensuring the accuracy of working size.
The feeding part: International machine tool slide and precise ball screw driving device.

V type mountain rail with high accuracy and high hardness,
strong bearing system,effectively control capacity of the linear error.

The power part:
This kind of machine adopts variable frequency speed regulation system,and can sole the

vibration problem of the wood by adjusting the rotational speed.
Applicable industries:
Rotary Cylinder Engraving Series Machines are widely used in wood cylinder products such

as buddha engraving ,furniture making,arts and crafts making,stair post making etc.

Morn’s operation objectives is Excellent quality,good faith,maximize user’s profit value.

Welcome to Morn.wood sample

Wood CNC router Machine



As the main part of CNC router machine, wood CNC router machine was also called woodworking CNC router machine because it is professional for wood engraving, wood carving, wood cutting and widely used in wooden furniture, wooden doors, wooden musical tools industries. Besides wood job processing, wood CNC router machine is also widely used for other non metal materials and soft metal materials, etc, such as acrylic, PVC, MDF, artificial stone, plastic, copper, aluminum,etc.



To meet the different requirements of different customers, Morn wood CNC router machine has lots of style for your options as well as different component, such as Italy HSD Spindle and Chinese high quality spindles, DSP controller and Nc stuidio, MACH3, NK2060, SYNTEC control systems, Japan Panasonic, Yaskawa servo drive system and Chinese stepper drive system and so on.



Jinan Morn Technology Co.,Ltd is the professional manufacture of CNC router machine for years, if you need to buy wood CNC router machine or need to know the wood CNC router machine price, pls no hesitate to contact with us. Morn is always your best choice.

Let us realize wood cnc router machine

  Wood cnc router machine is more popular in recent years. But lots of customers don’t know how to choose  the cnc router machine and don’t know about this machine,                                               so today I will introduce the wood cnc router machine to you.



I.Applicable industries:

Woodworking:Three-dimensional wave plate processing, milling engraving of cupboard door, craft wood door, paint-free door, screen and carft window.



II.Features:

1.Imported linear guide rail, double-side four ball slider, high loading capacity,smooth operation, high precision,  long lifetime. Imported ball screw,accurate engraving.

2.Optional spindles are imported NSK bearing, high speed water cooling spindle, 6KW air cooling spindleor  4.5KW water cooling spindle with stable performance.

3.Computer online NC STUDIO control system, unique intelligent forecasting algorithm. Fully elaborate the proficiency of motor, realize fast speed processing, twist and straight lines work at the same time and twist  lines are perfect.

4.Good software compatibility with Type3/Artcam/Castmate/Artcut etc.

5.Six zones vacuum table can absorb different sizes of boards.

6.Adopt high speed stepper motor and drive. Y axis adopts double motor drive,max, rapid travel rate  can reach 25m/min  and it can be increased with the vigorous cutting spindle.



We have all kinds of wood cnc router machine and many different size can meet customer’s requirements.  When you choose us, you can tell us your requirement is ok, we will recommend our most suitable model for you.



Morn group is your best choice.

Article Source From ( www.morntech.com

Click here to see wood cnc router machine working video:

https://www.youtube.com/watch?v=LOpRn671PUQ&feature=youtu.be
