Minimizes operational risks with a stable horizontal structure, ensuring safer and more reliable tube processing.
Tested machine bed delivers rigidity and long-term stability for consistent performance.
Enables high-speed cutting with precision, reducing production time and minimizing secondary finishing.
Motion control auto-focus system deliver micron-level accuracy, ensuring edges and precise fit for tube geometries.

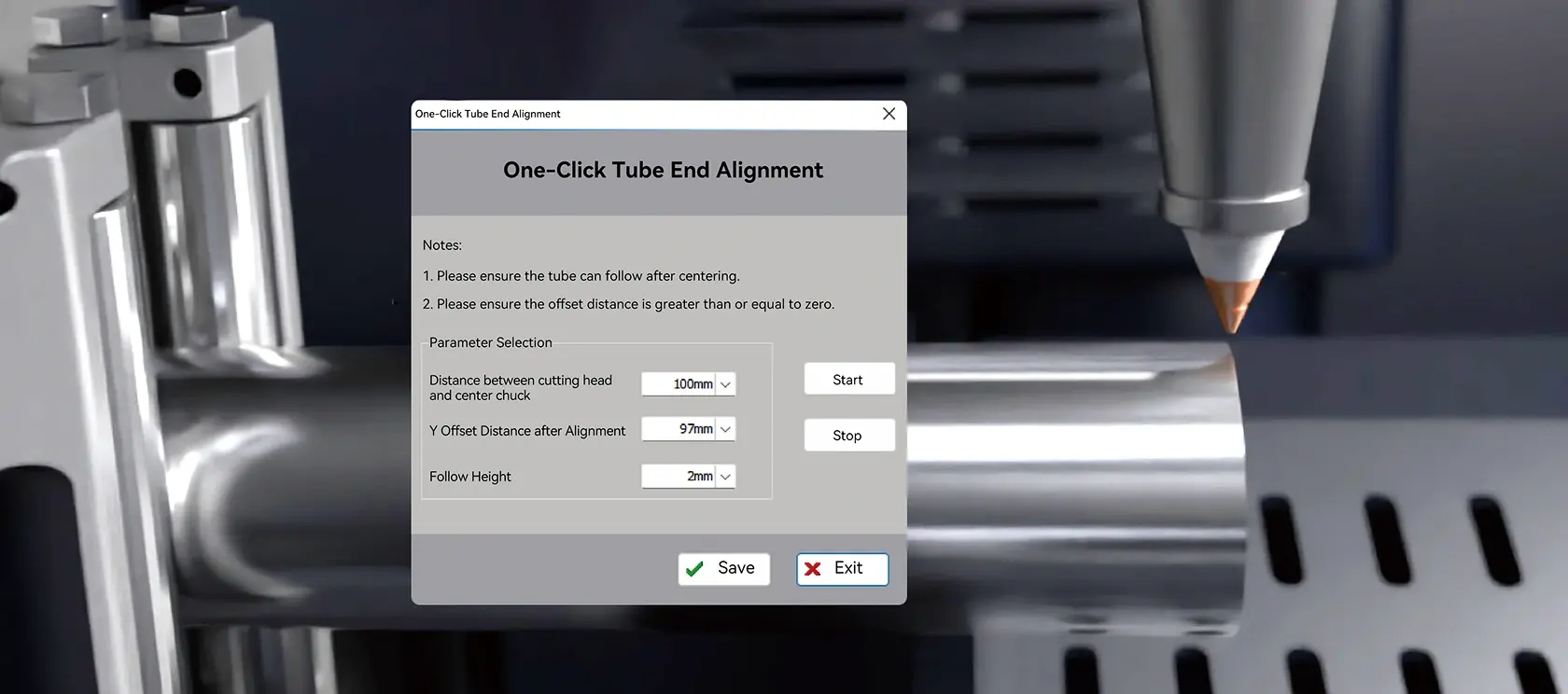

Automated positioning system quickly aligns tube ends with a single command, eliminating manual adjustment and improving processing efficiency. Ensures consistent accuracy for batch production and reduces setup time.

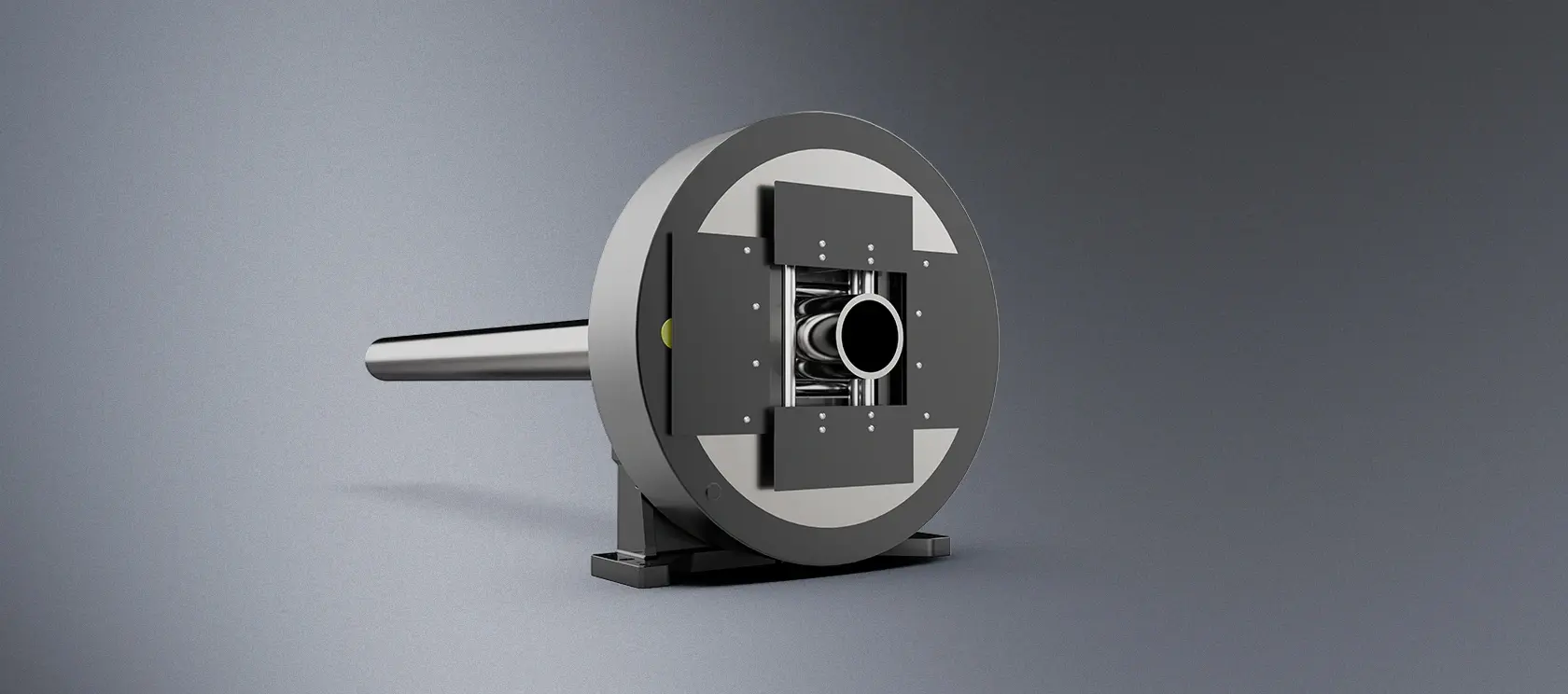

High-response pneumatic chuck automatically centers and clamps tubes of various shapes and sizes. Provides strong, stable gripping force to ensure accuracy and reliability during high-speed cutting.

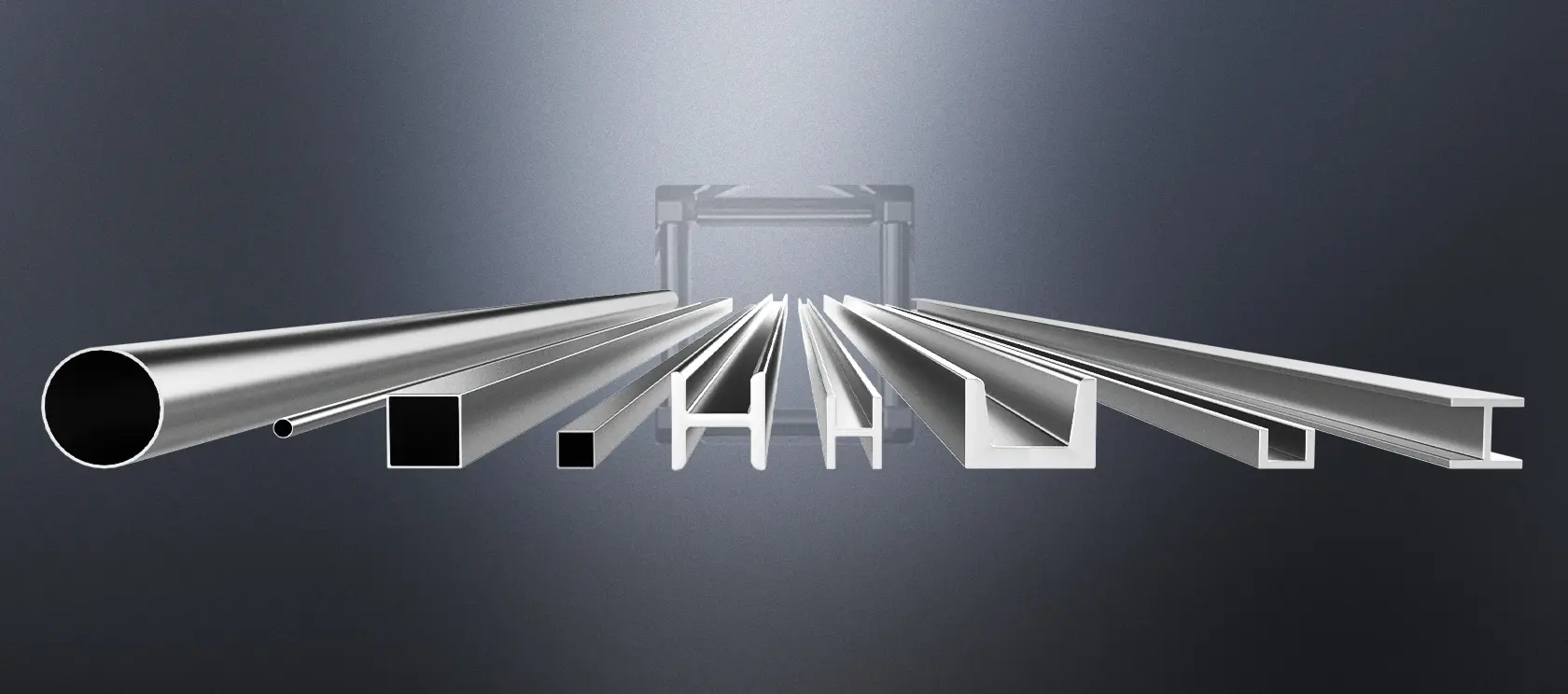

Supports a wide variety of tube shapes and sizes to meet diverse processing requirements, easily adapting to different production scenarios while maintaining stable performance and high efficiency across both small and large batch manufacturing.

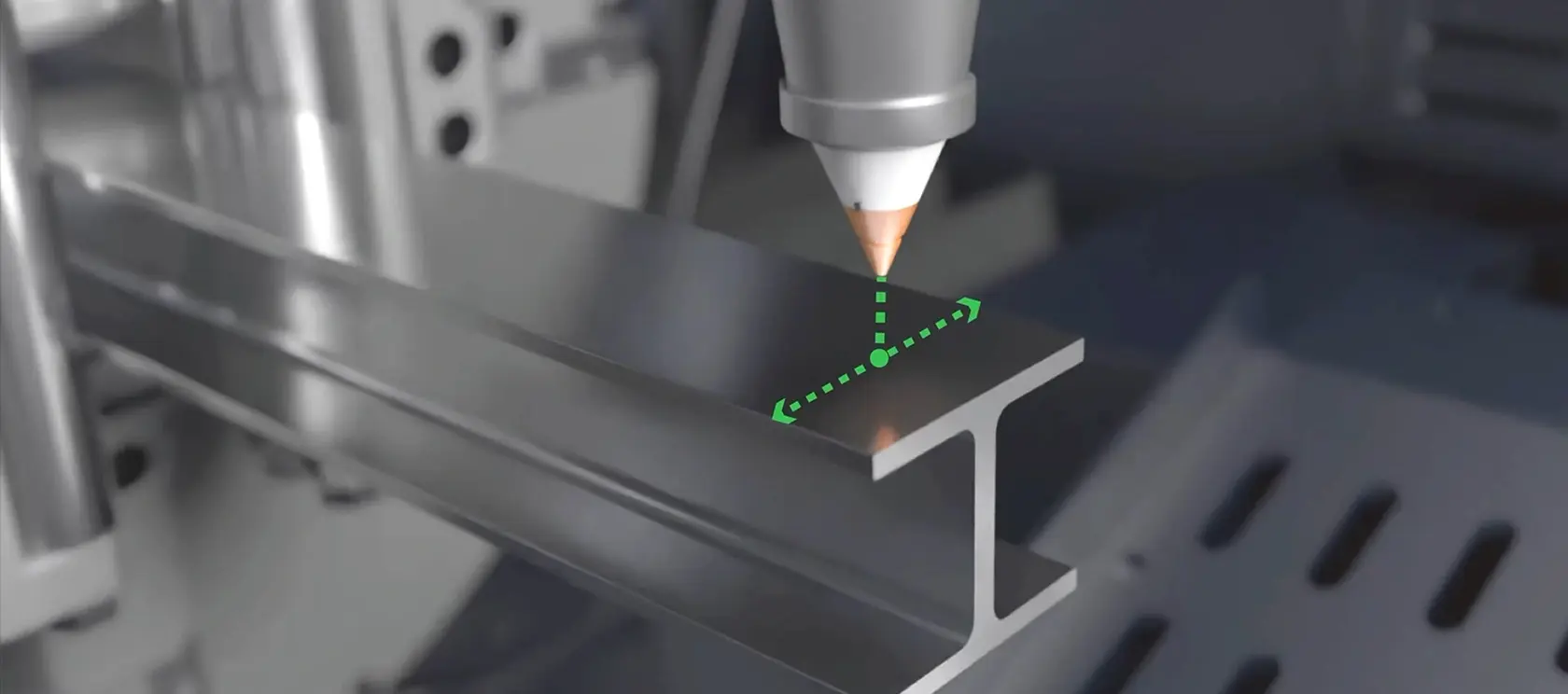

Supports automatic centering of L-beams, channel steel, I-beams, and other profiles, ensuring higher cutting accuracy and stable processing for complex structural materials.
Model | T61 | T616 | T62(240) | T63(360) |
|---|---|---|---|---|
Laser Power | 1000W-6000W | 1000W-6000W | 1000W-12000W | 1000W-20000W |
Round Tube Diameter | Φ10-Φ120mm | Φ10mm- Φ165mm | Φ10 - Φ240mm | Φ20 - Φ360mm |
Square Tube Diameter | □10*10-□120*120mm | 10mm×10mm-165mm×165mm | □10*10 - □240*240mm | □20*20 - □360*360mm |
Rectangle Tube Diameter | Side Length: 10–120mm | Side Length: 10–165 mm | Side Length: 10 - 240mm | Side Length: 20 - 360mm |
Max. Tube Weight | 100kg | 180kg | 450kg | 1500kg |
| Max. Linkage Speed | 110r/min | 110r/min | 110r/min | 80m/min |
| Max. Linkage Acceleration | 0.6G | 0.6G | 0.6G | 0.6G |
