Laser cutting machines are precision equipment that require regular maintenance to maintain optimal performance. Over time, operators often encounter power attenuation and lens contamination — two issues that directly affect cutting quality. If left unchecked, they lead to rough edges, incomplete cuts, and increased material waste. This guide provides a systematic troubleshooting approach.

Step 1: Check the Laser Power Source

When a laser cutting machine shows reduced cutting capability, start with the power source. Use a power meter to measure actual output at the machine's laser head. Compare this reading against the rated power. A deviation exceeding 10% indicates potential power supply issues or laser tube aging. If the power reading is normal but cutting performance remains poor, proceed to optical path inspection.

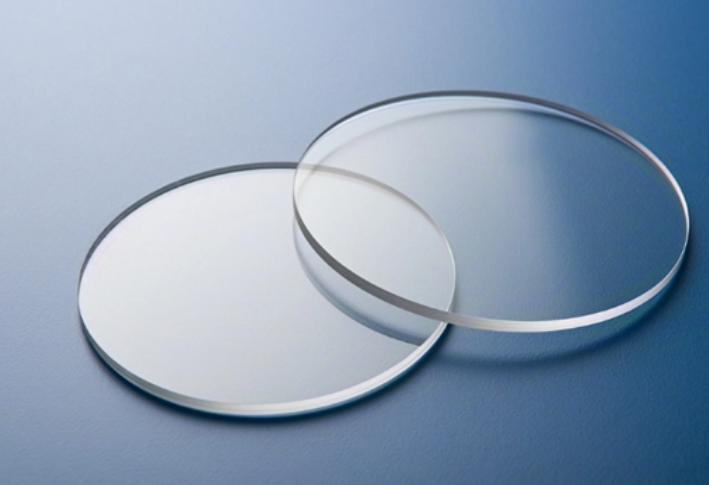

Step 2: Inspect the Protective Lens

The protective lens is the first line of defense for any laser cutting machine. Contamination here is the most common cause of power loss. Remove the lens assembly carefully and hold it under bright light. Look for dust spots, oil stains, or metal spatter. Even microscopic particles can scatter the laser beam, reducing effective energy at the cutting surface.

Cleaning procedure: Use a rubber blower to remove loose particles. Apply optical-grade cleaning solution to lint-free wipes and gently wipe from center to edge in a single direction. Never reuse wipes. Repeat until the lens appears completely clear under inspection.

Step 3: Examine the Collimating and Focusing Lenses

If power still seems insufficient after cleaning the protective lens, the collimating and focusing lenses inside the optical cavity may be contaminated. These components require more careful handling. Inspect them using the same method described above. For a laser cutting machine operating in dusty environments, these lenses typically need cleaning every 200-300 operating hours.

Step 4: Verify Beam Alignment

Contaminated or misaligned optics often produce similar symptoms. After cleaning all lenses, perform a beam alignment test. Place thermal paper at the nozzle exit and fire a short pulse. The resulting burn mark should be perfectly circular and centered. An oval or off-center pattern indicates mirror misalignment requiring adjustment.

Step 5: Monitor Cutting Parameters

After completing physical cleaning and alignment, run test cuts on standard material. Compare cutting speed, assist gas pressure, and focal position against baseline records. A properly maintained laser cutting machine should restore to within 95% of original performance.

Preventive Maintenance Schedule

Regular maintenance of your laser cutting machine not only prevents power attenuation but also extends component life. Keep a maintenance log to track cleaning dates and performance changes — this data is invaluable for diagnosing recurring issues.
