Optimized side-loading mechanism enables rapid and stable tube feeding, reducing idle time and ensuring continuous high-efficiency production with improved overall workflow stability.
Advanced motion control and auto-focus system deliver micron-level accuracy, ensuring clean edges and precise fit for complex tube geometries.
Highly automated operation minimizes manual handling, reducing labor intensity while improving overall productivity and consistency.
Integrated side-mounted loading solution supports continuous, unmanned feeding, enhancing workflow efficiency and maximizing machine uptime.

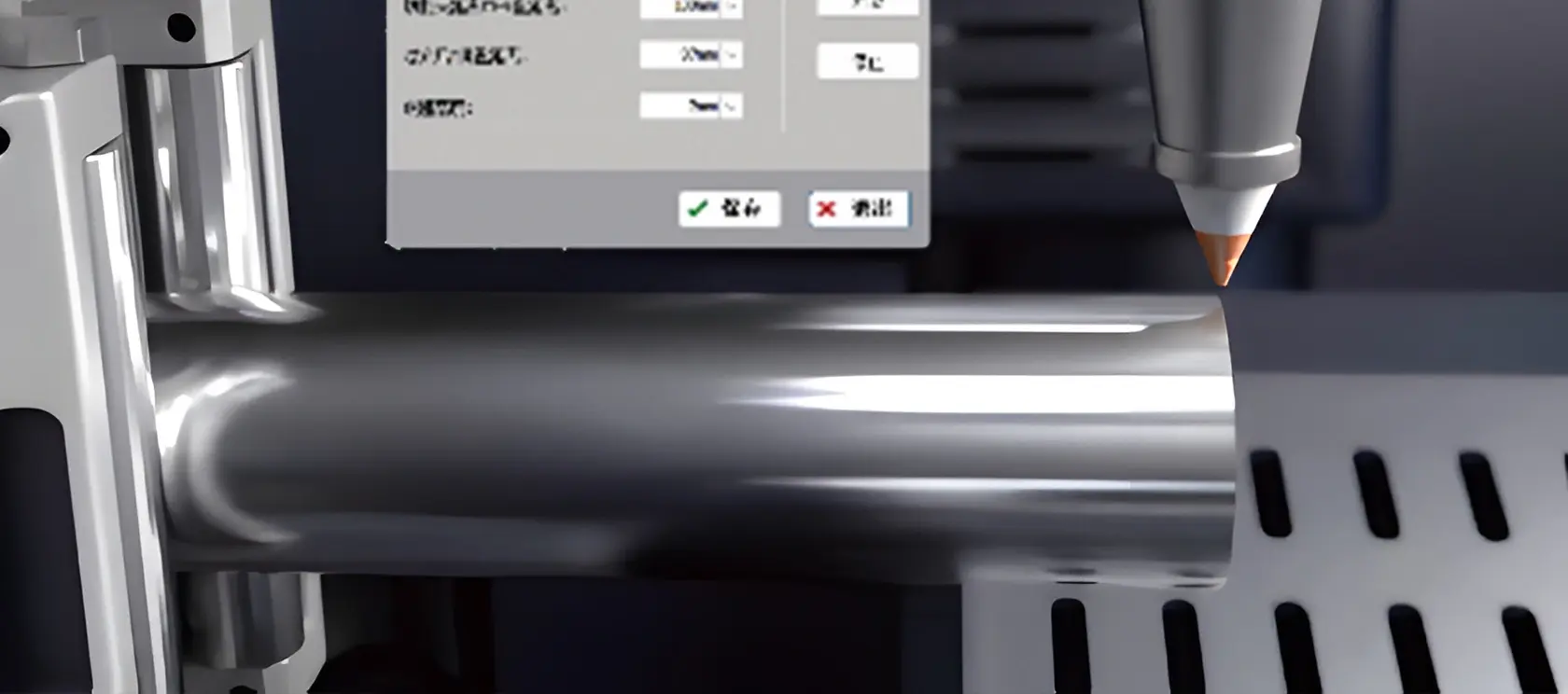

Automated positioning system quickly aligns tube ends with a single command, eliminating manual adjustment and improving processing efficiency. Ensures consistent accuracy for batch production and reduces setup time.

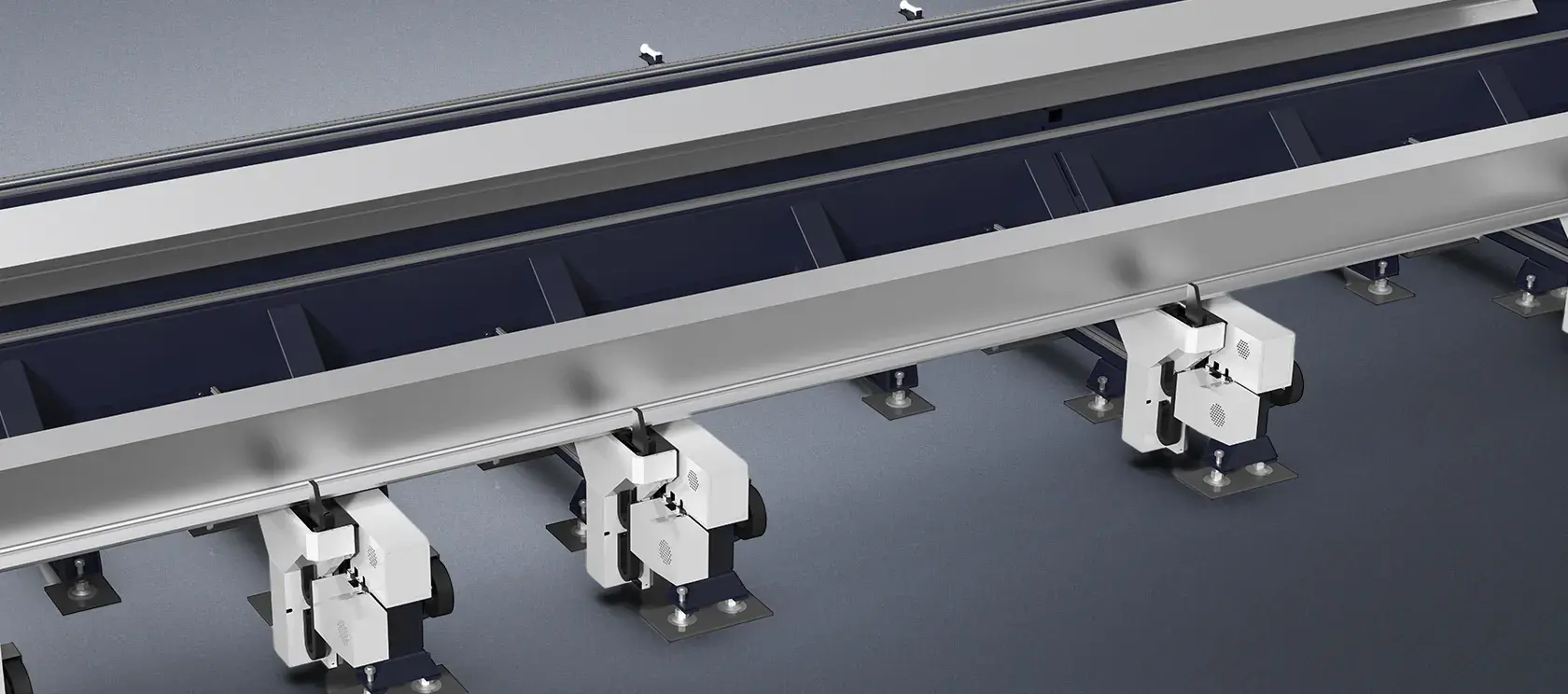

Dynamic support mechanism adjusts in real time with tube movement, preventing sagging and vibration during cutting. Enhances stability and ensures high-quality results on long and heavy tubes.

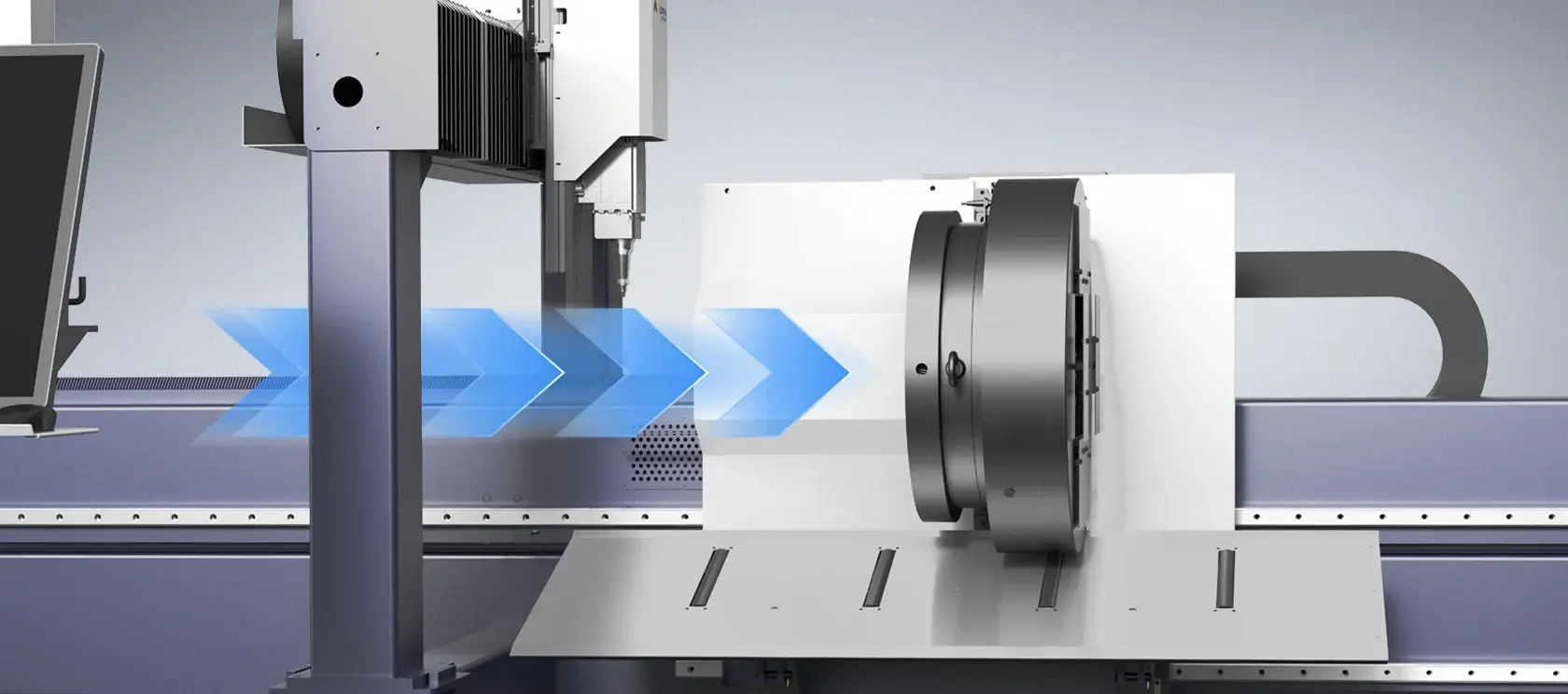

Extended chuck travel enables maximum material utilization, achieving near zero tail material and minimizing waste. Improves cost efficiency while maintaining precise and stable clamping performance.

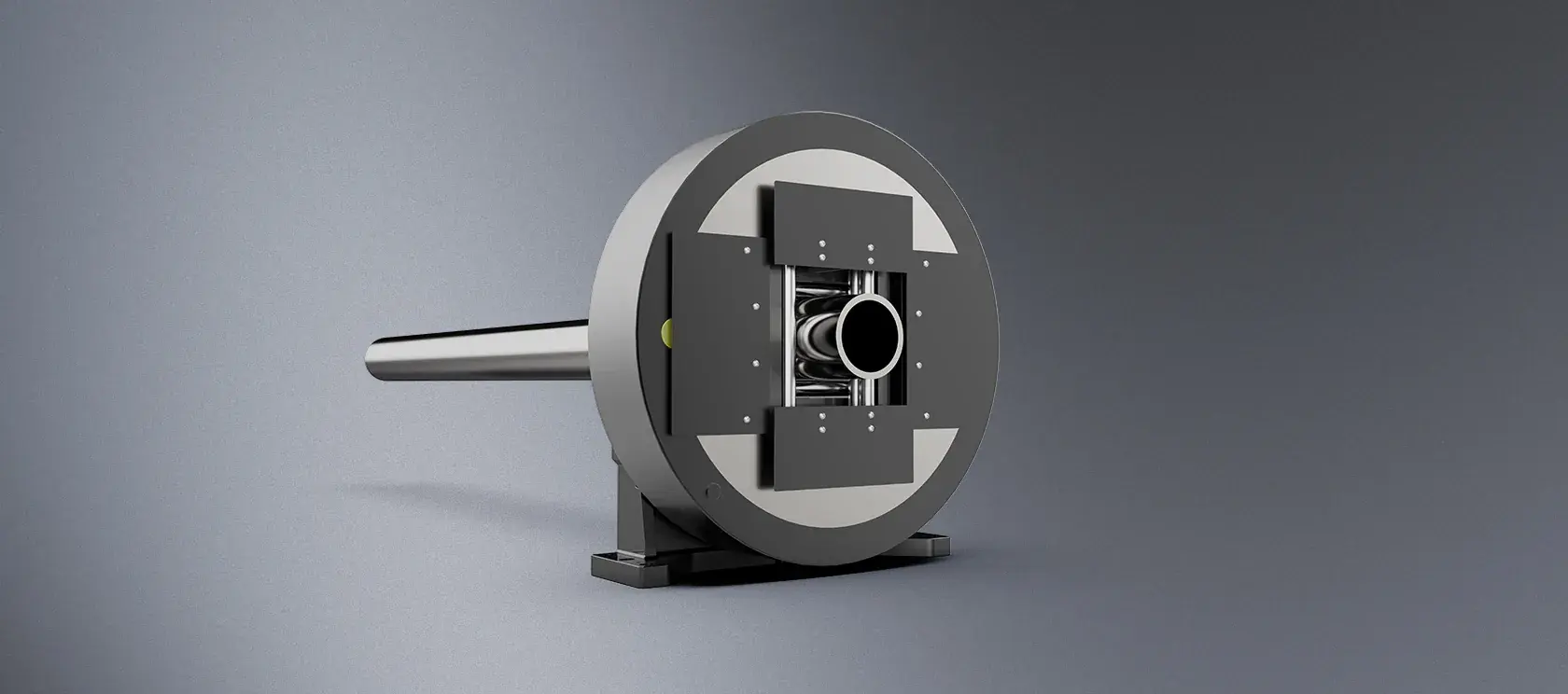

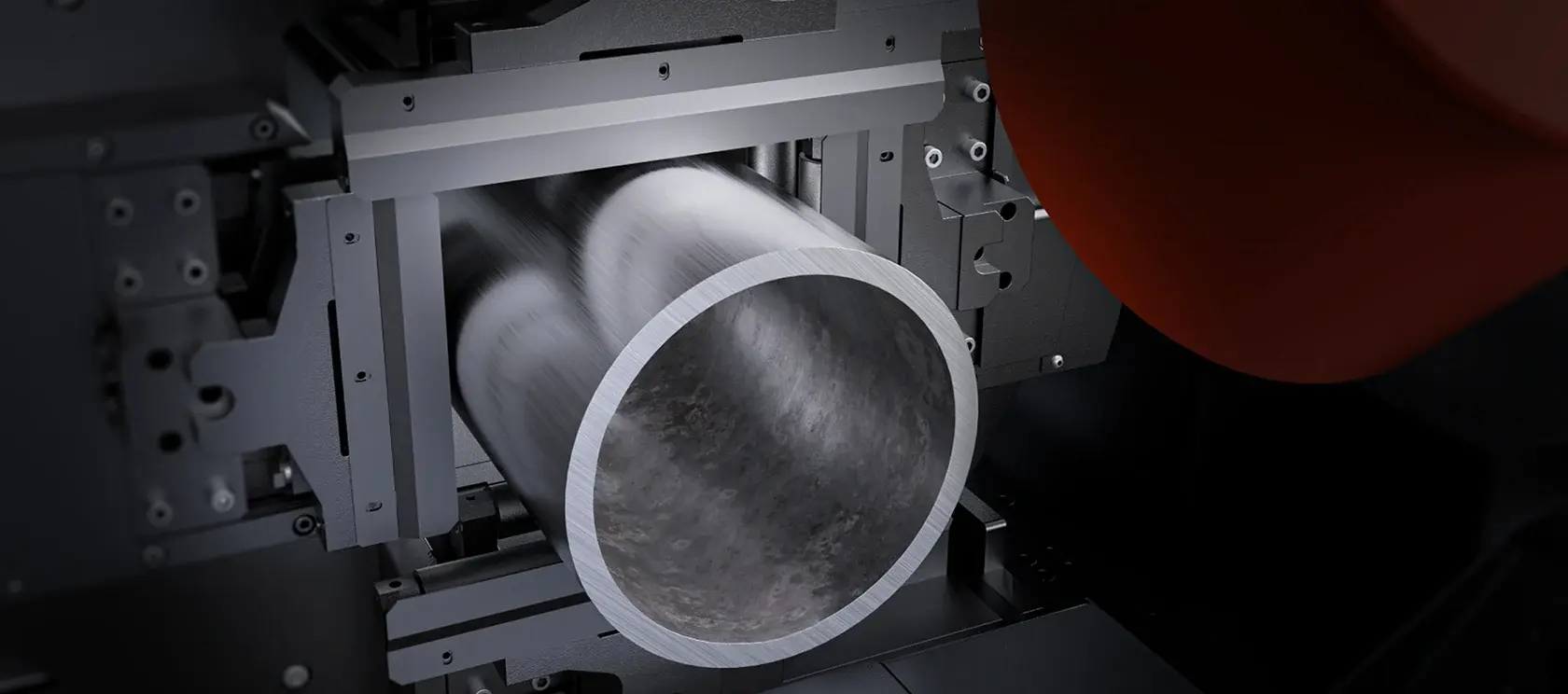

20–240 mm wide clamping range without jaw replacement. Sealed design prevents fume and slag intrusion, while rear chuck air blowing improves extraction and reduces dust buildup for stable, low-maintenance operation.
Model | N-S61 | N-S62 | N-H61 | N-H62 | N-HL63 |
|---|---|---|---|---|---|
Laser Power | 1000W-12000W | 1000W-12000W | 1000W-12000W | 1000W-12000W | 1000W-20000W |
Bevel Cutting Angle | ±45° | ±45° | ±45° | ±45° | ±45° |
Round Tube Diameter | Φ10-Φ120mm | Φ10-Φ240mm | Φ10-Φ120mm | Φ15-Φ240mm | Φ20-Φ360mm |
Square Tube Diameter | □10*10-□120*120mm | □10*10-□240*240mm | □10*10-□120*120mm | □10*10-□240*240mm | □20*20-□360*360mm |
Max. Tube Weight | 100kg | 450kg | 100kg | 450kg | 1500kg |
Max. Chuck Speed | 200r/min | 110r/min | 200r/min | 110r/min | 80r/min |
Max. Linkage Acceleration | 1.5G | 0.8G | 1.5G | 0.8G | 0.6G |
