Lens condition directly determines cutting quality on any laser cutting machine. Contaminated or damaged lenses reduce power delivery, cause rough edges, and eventually lead to failed cuts. But how often should you actually replace them? The answer depends on the lens type, operating environment, and maintenance discipline. This guide breaks down replacement intervals for each lens on your laser cutting machine.

Understanding the Three Main Lenses

A typical laser cutting machine uses three critical optical components:

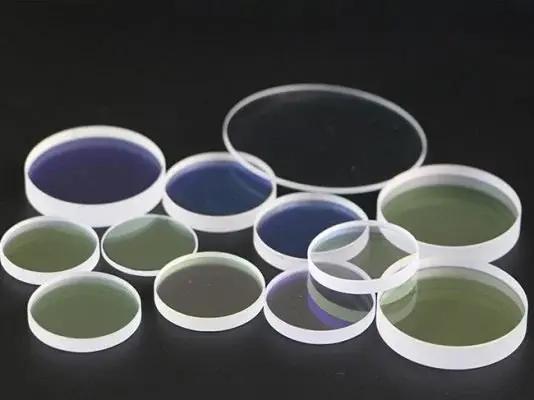

1. Protective lens – The outermost barrier, exposed to spatter and dust

2. Focusing lens – Shapes the beam to a precise focal point

3. Collimating lens – Aligns the beam from the source

Each has a different lifespan and replacement cycle.

Protective Lens: Replace Based on Condition, Not Calendar

The protective lens on your laser cutting machine is a consumable item. Under normal conditions, it should be inspected daily and cleaned as needed.

Typical replacement interval: Every 1-3 months for single-shift operation. Heavy production (24/7) may require replacement every 2-4 weeks.

Replace immediately if you observe:

• Deep pitting or burn marks from spatter

• Cloudy or hazy appearance after cleaning

• Visible cracks or coating damage

• Persistent contamination that cleaning cannot remove

Important note: A scratched protective lens scatters the beam, reducing cutting power on your laser cutting machine. Never continue using a damaged lens to save cost—the resulting poor cut quality and potential damage to the focusing lens cost far more.

Focusing Lens: Replace When Performance Degrades

The focusing lens sits inside the cutting head, protected from direct spatter but still vulnerable to gradual contamination. On a well-maintained laser cutting machine, this lens typically lasts longer than the protective lens.

Typical replacement interval: Every 6-12 months, depending on environment and usage intensity.

Signs replacement is needed:

• Power output drops despite clean protective lens

• Beam alignment cannot be achieved

• Visible coating degradation or discoloration

• Cleaning no longer restores performance

Collimating Lens: Longest Service Life

The collimating lens is furthest from the cutting zone and least exposed to contamination. On most laser cutting machine models, it lasts considerably longer.

Typical replacement interval: Every 12-24 months, or when power output testing reveals significant degradation.

Factors That Shorten Lens Life

How to Extend Lens Life on Your Laser Cutting Machine

• Clean daily: Wipe the protective lens before the first cut and after each job

• Use proper materials: Only optical-grade solution and lint-free wipes

• Never touch lens surfaces: Skin oils permanently damage coatings

• Check gas purity: Contaminated assist gas accelerates lens degradation

• Maintain fume extraction: Effective smoke removal keeps optics cleaner

• Store spares properly: Keep replacement lenses in original packaging until installation

When to Replace vs. When to Clean

Not every dirty lens needs replacement. Follow this decision process for your laser cutting machine:

1. Inspect under bright light

2. Clean using proper technique

3. Re-inspect after cleaning

4. Test cut a sample piece

5. Replace only if cleaning fails to restore performance or physical damage is present

Cost vs. Consequence

A replacement lens costs a fraction of what a damaged focusing lens or reduced production costs. When in doubt on your laser cutting machine, replace the protective lens. It is designed to be sacrificial—protecting the more expensive optics inside.

Keep a Replacement Log

Track installation dates and cutting hours for every lens on your laser cutting machine. After a few replacement cycles, you will identify your specific consumption pattern and can order spares proactively rather than reacting to sudden failures.

Summary

Regular inspection and disciplined cleaning remain the best strategies for maximizing lens life on your laser cutting machine. Replace based on condition and performance—not strictly on calendar dates.
