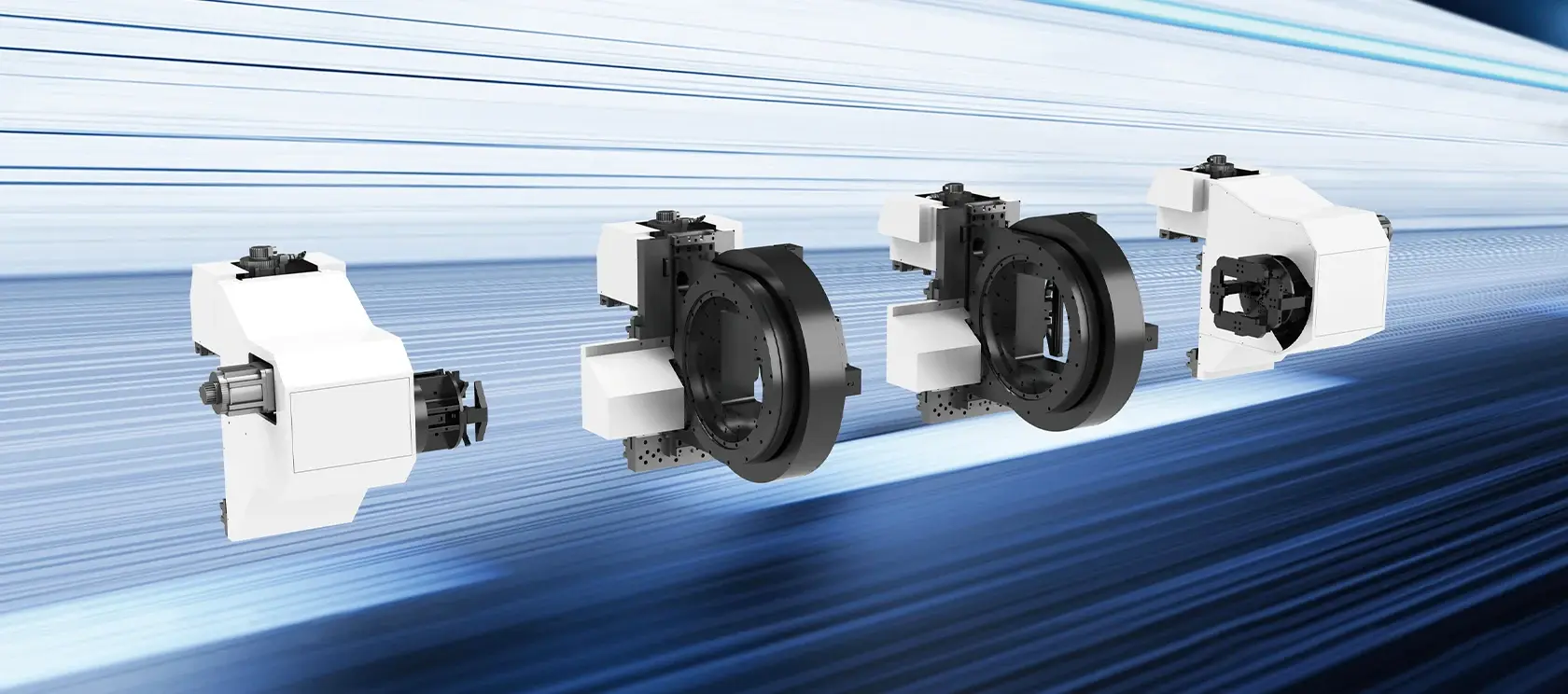

Synchronized four-chuck clamping ensures ultra-stable tube processing and high-precision cutting, while adaptive control intelligently adjusts gripping force and position for various tube types.
Maximizes material utilization by eliminating leftover waste at the tube end, achieving seamless full-length cutting to reduce costs and boost efficiency.

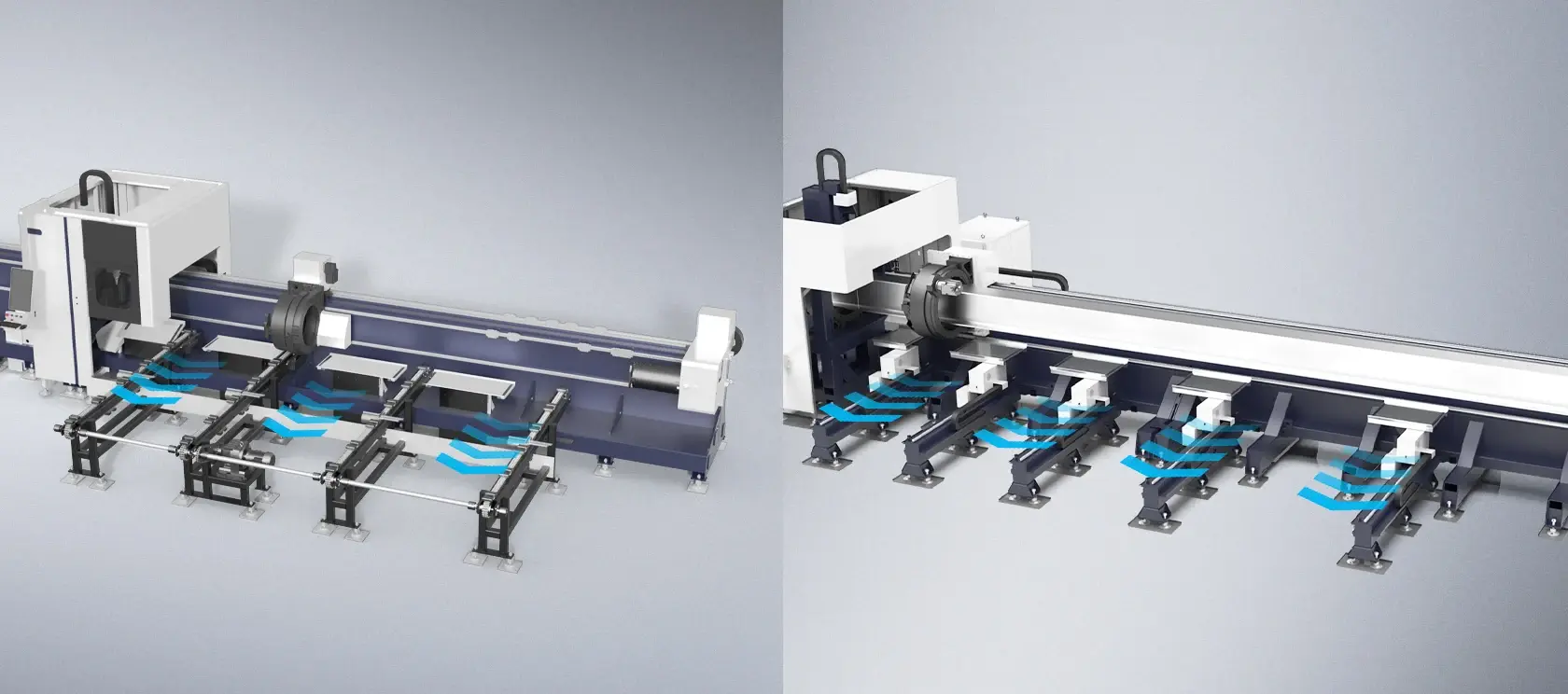

Integrated automation enables continuous operation with high efficiency and consistency, reducing labor dependency and ensuring smooth handling.

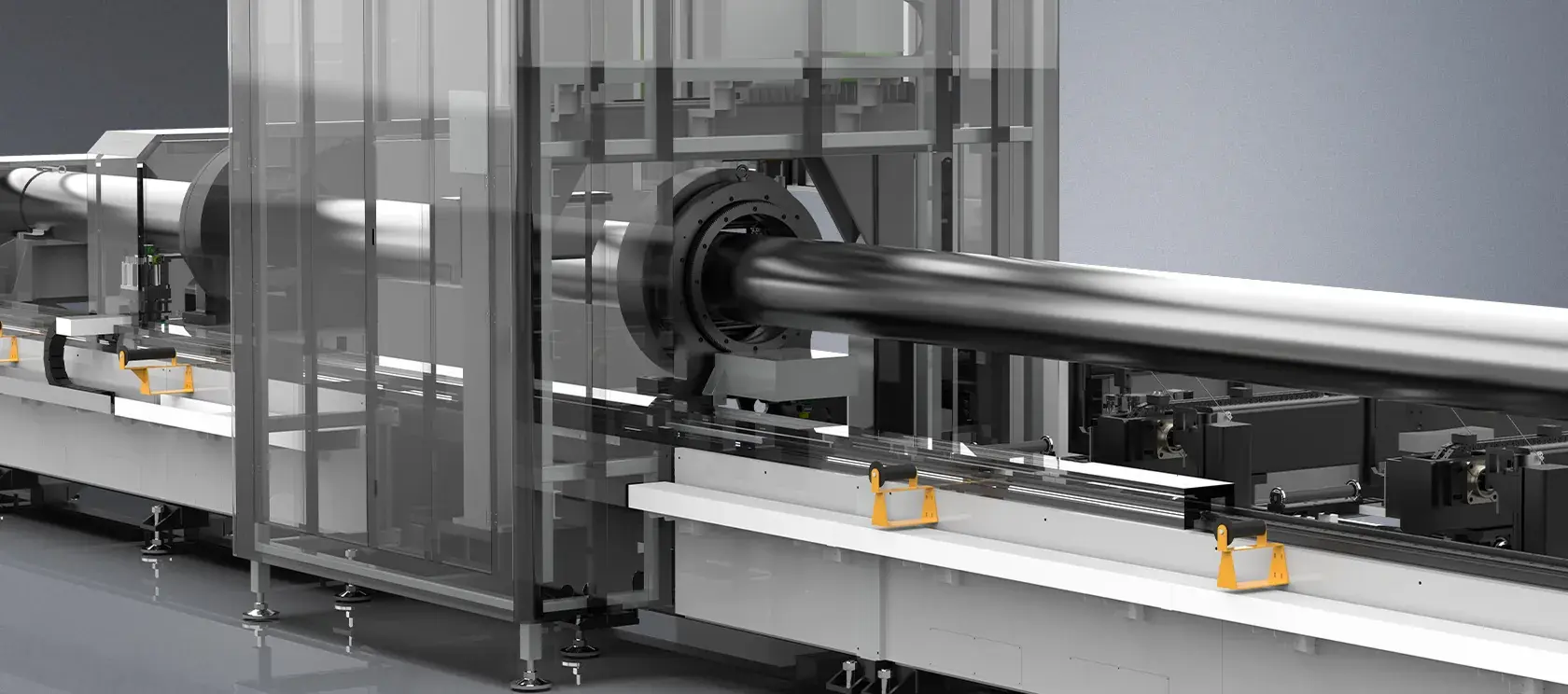

Ensures stable and secure tube handling under heavy loads, maintaining consistent performance and precision in continuous operation while improving production reliability.

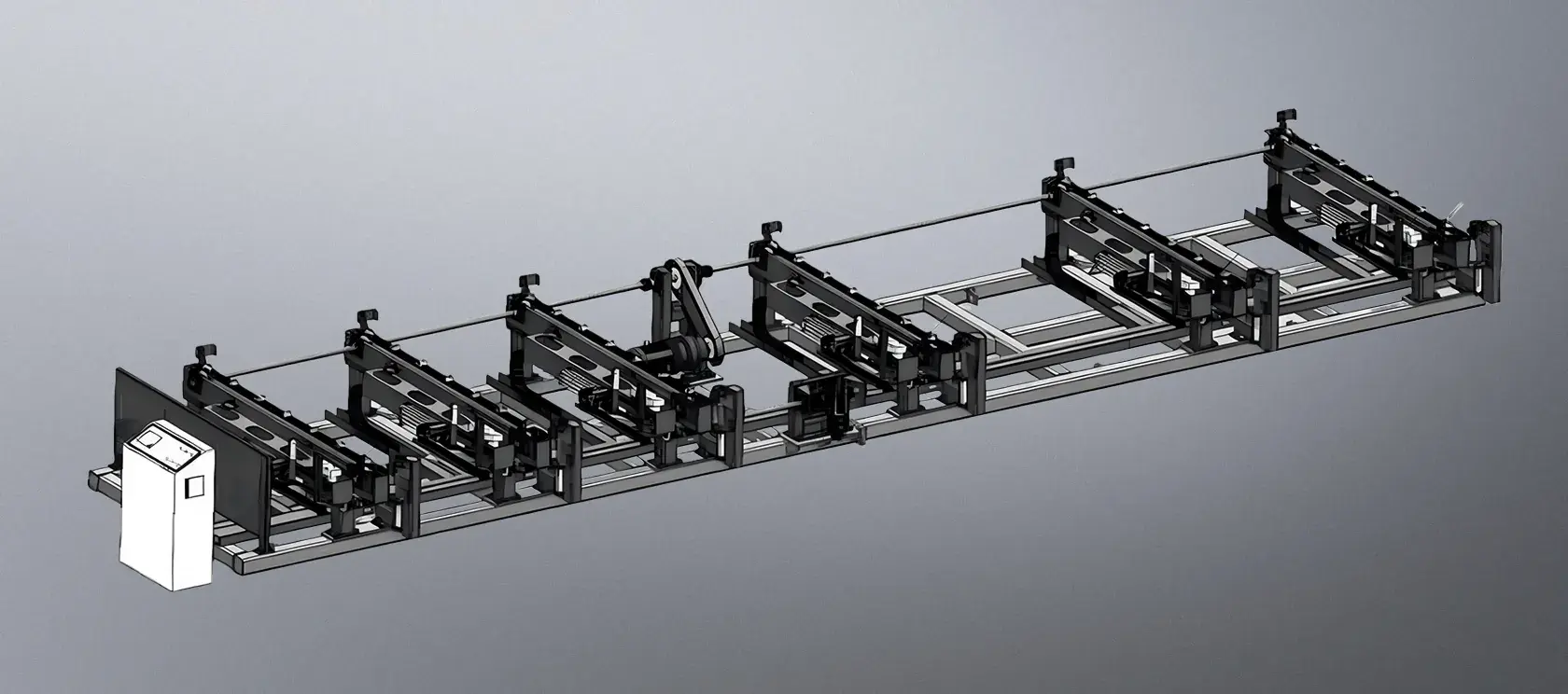

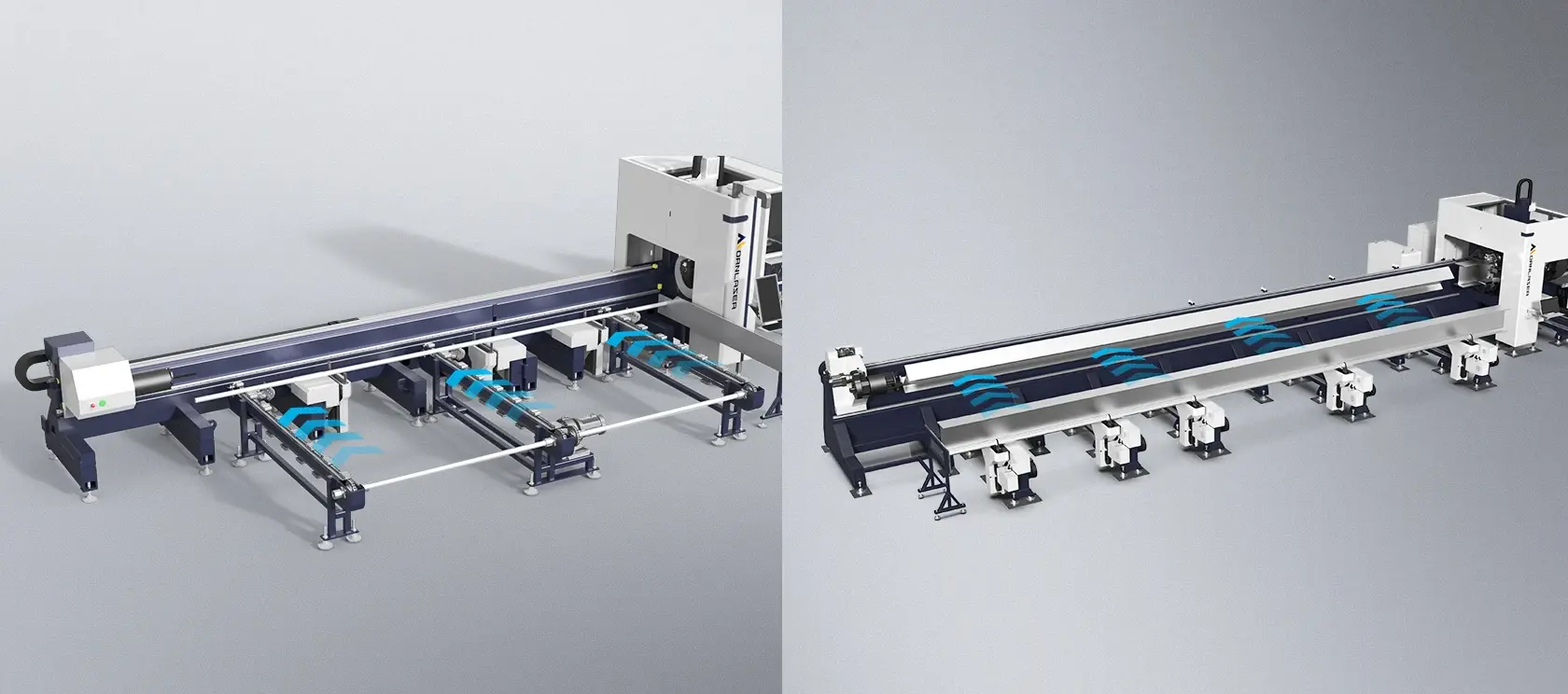

Seamlessly feeds multiple tubes with high efficiency and minimal manual intervention, ensuring stable positioning for continuous, high-speed production while reducing downtime and improving overall processing consistency.

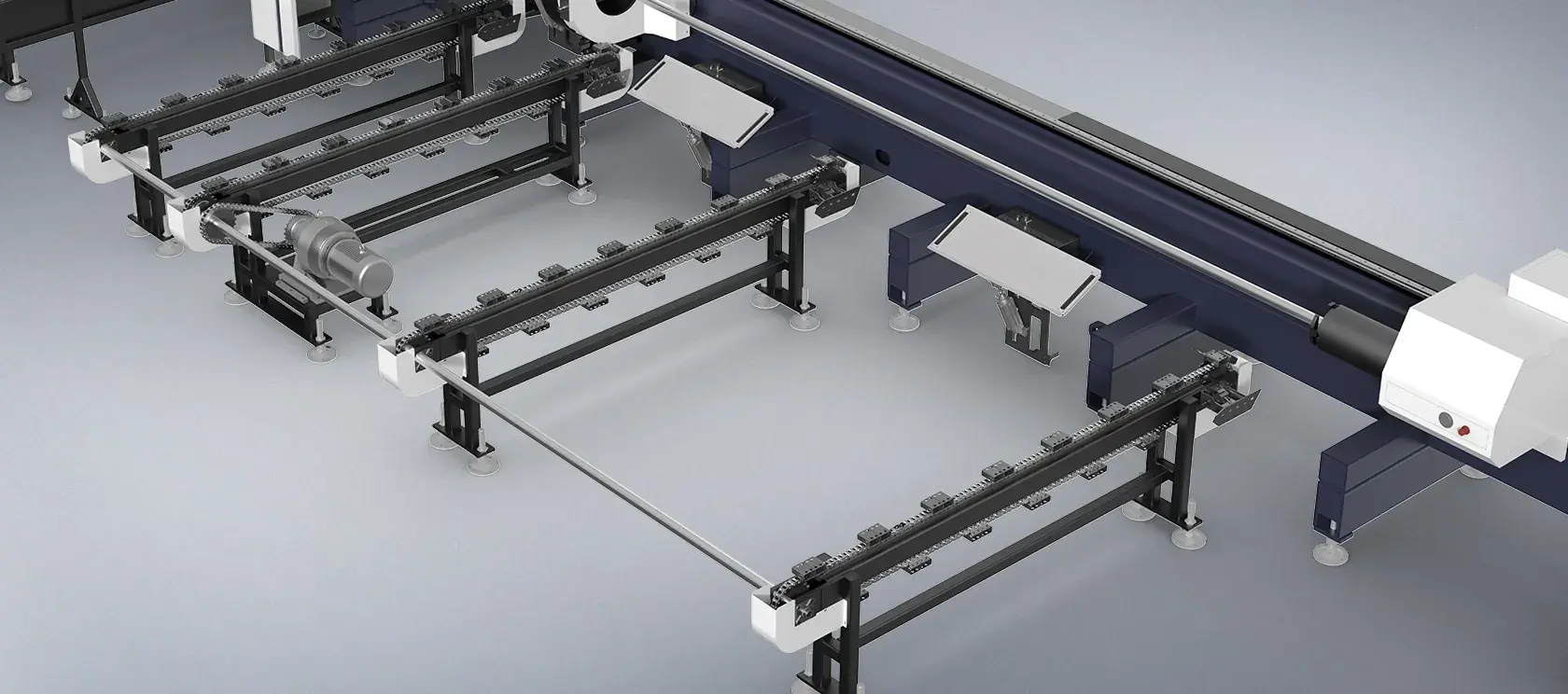

Automatically collects and sorts finished tubes to reduce labor intensity, improving workflow efficiency while protecting workpieces from damage and enabling smoother, more organized production flow.
Advanced four-chuck coordination enables near-zero tail cutting for maximum yield, minimizing material waste and significantly lowering production costs while enhancing material utilization and overall profitability.

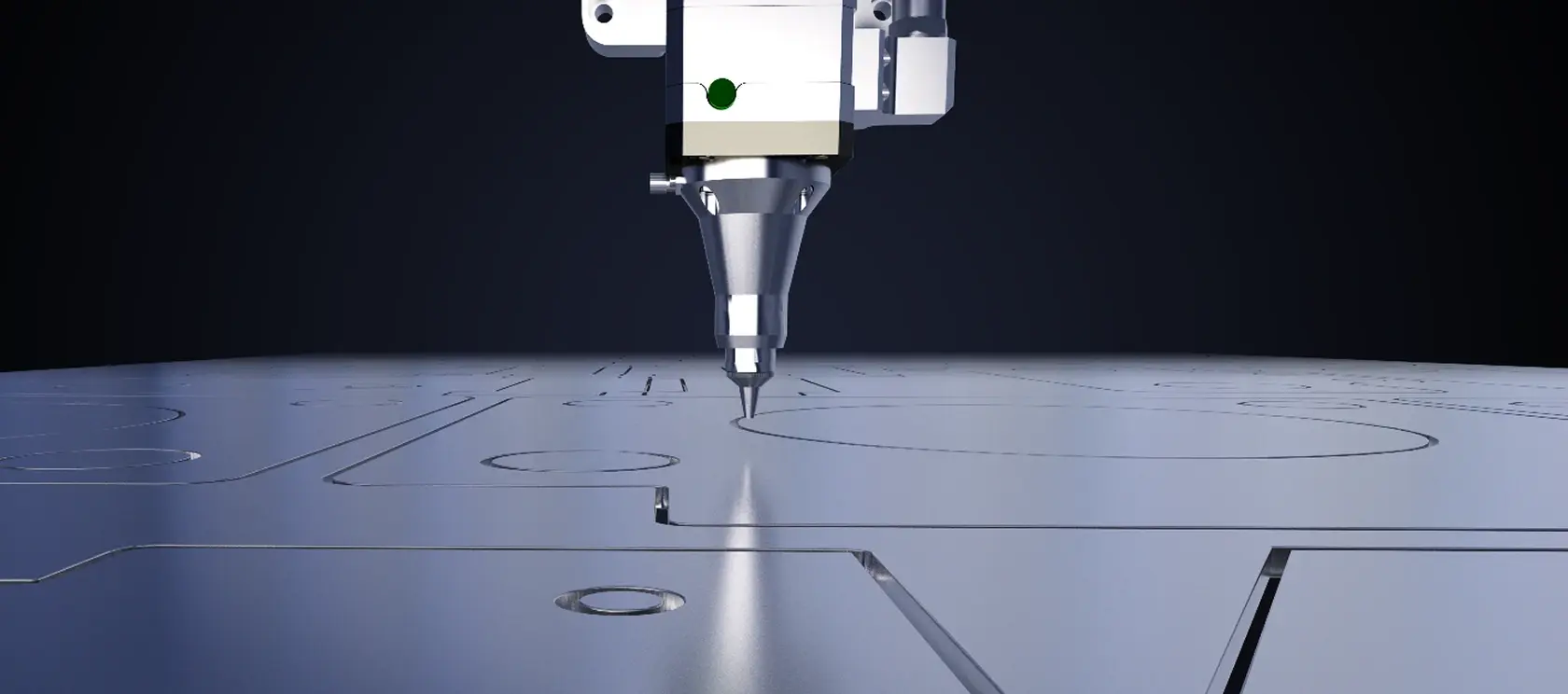

Automatically adjusts focal position according to material thickness for consistent and high-precision cutting results, improving processing speed and stability while reducing manual adjustment and ensuring reliable performance in enclosed operation.
Model | 360 Chuck | 450 Chuck | 520 Chuck |
|---|---|---|---|
Laser Power | 3000W-20000W | 3000W-20000W | 3000W-20000W |
Bevel Cutting Angle | ±45° | ±45° | ±45° |
Round Tube Diameter | Φ20-Φ360mm | Φ20-Φ450mm | Φ20-Φ500mm |
Square Tube Diameter | □20*20-□360*360mm | □50*50-□450*450mm | □40*40-□500*500mm |
Max. Tube Weight | 1500kg | 1500kg | 2200kg |
Max. Chuck Speed | 110r/min | 80r/min | 40r/min |
Max. Linkage Acceleration | 0.8G | 0.7G | 0.5G |
