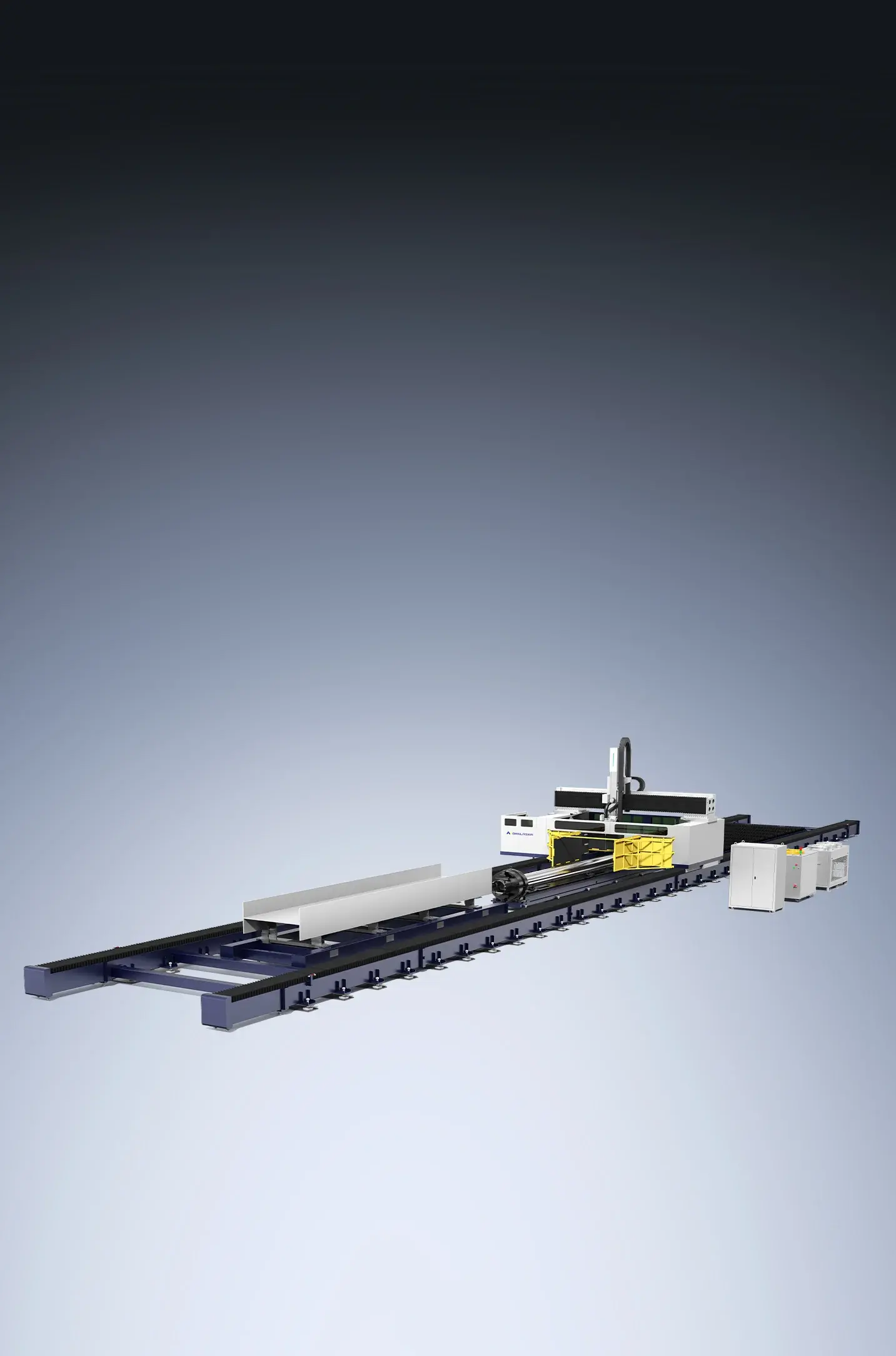

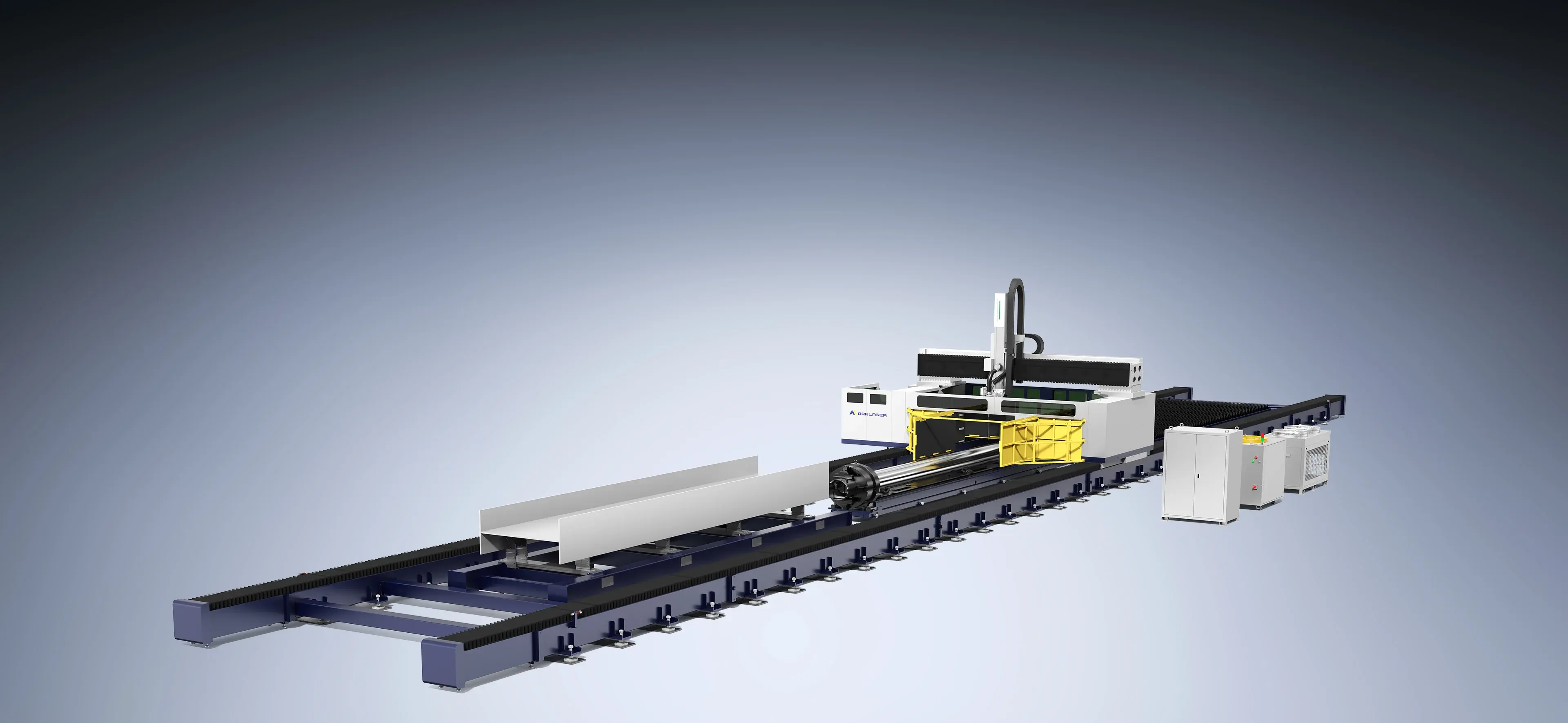

Engineered for heavy-duty structural applications, ensuring stable and precise cutting of large profile steel such as H-beams, I-beams, channels, and angles.

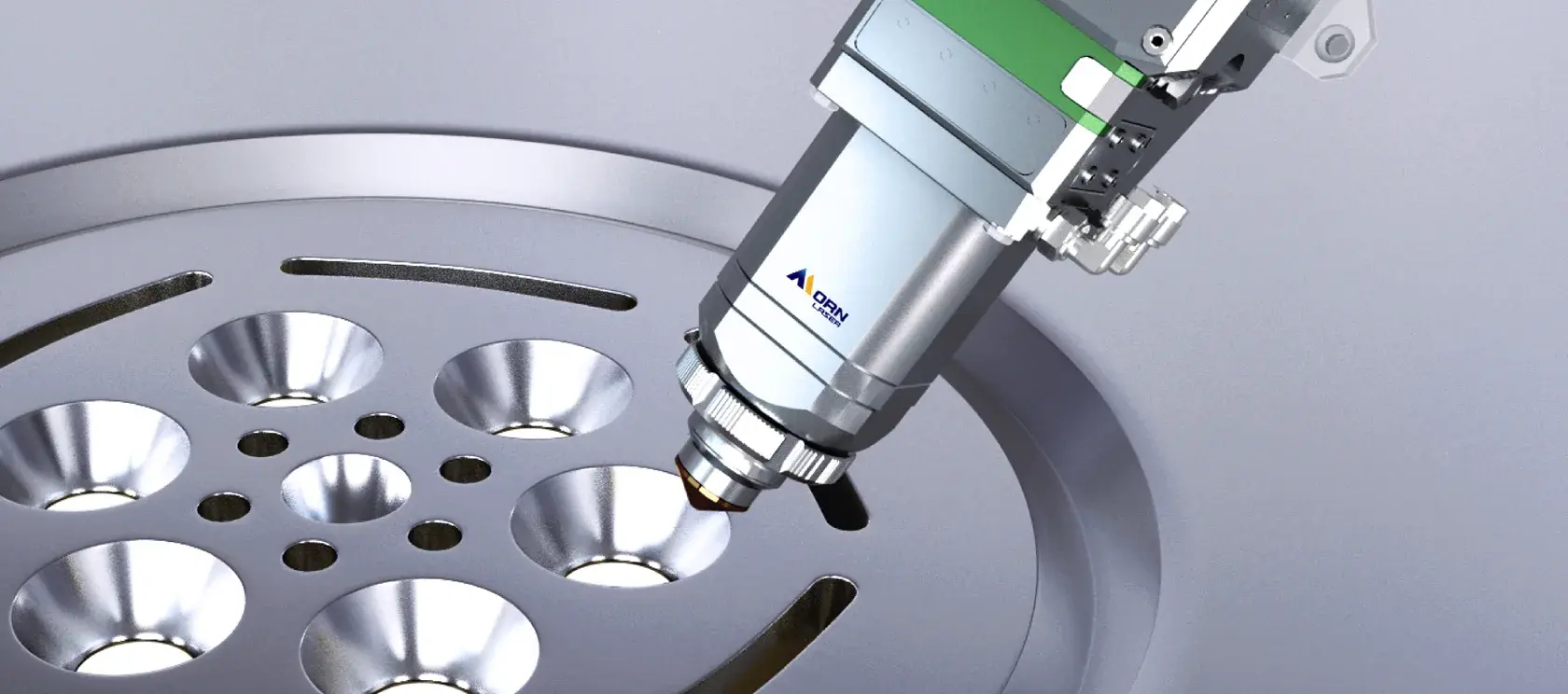

Delivers precise, smooth bevels on large structural steel, minimizing post-processing and boosting assembly efficiency.
Automatically finds the optimal cutting route and avoids obstacles, ensuring efficient, uninterrupted steel profile cutting.
Mark weld positions instantly with a single click, ensuring precise and efficient assembly.

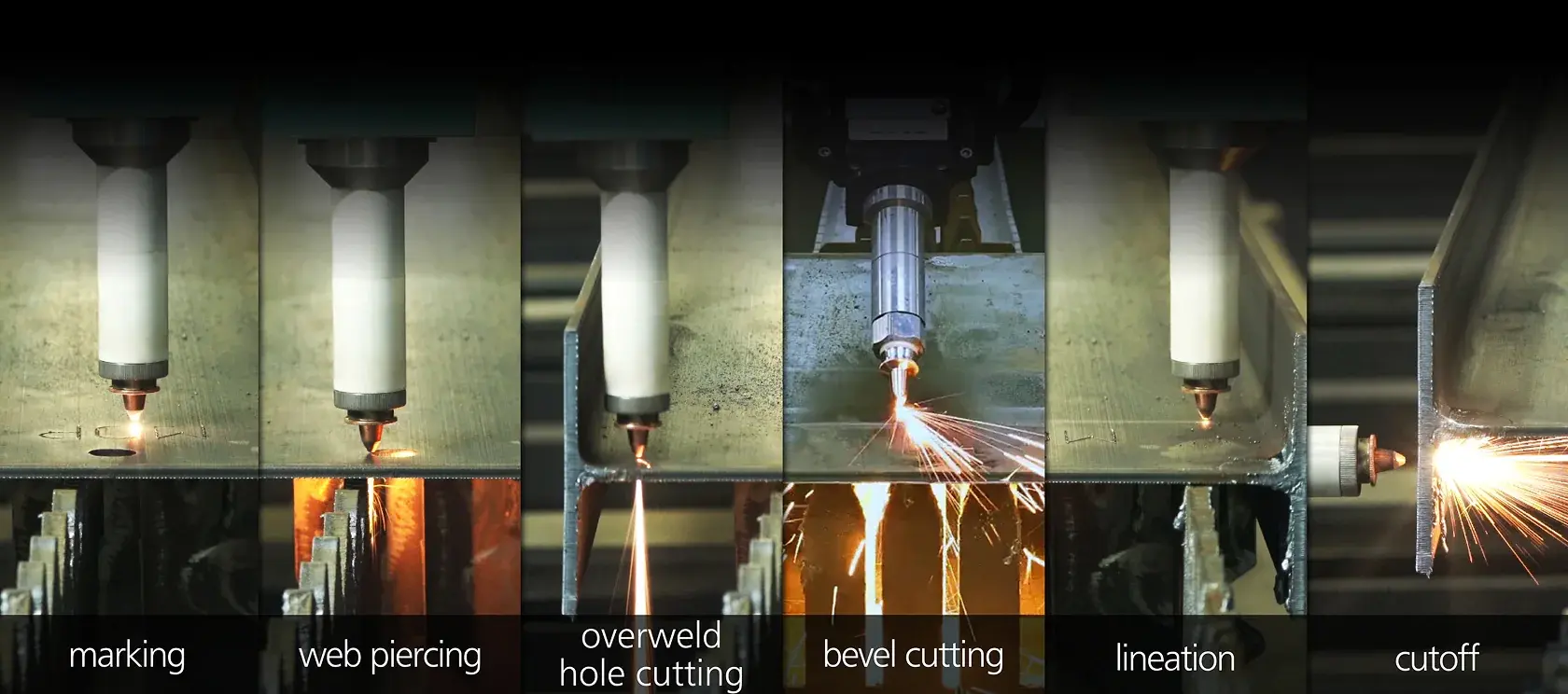

Marking, web piercing, overweld hole cutting, bevel cutting, cutoff, and other processes can all be performed with a single machine, providing versatile and efficient metal processing capabilities.

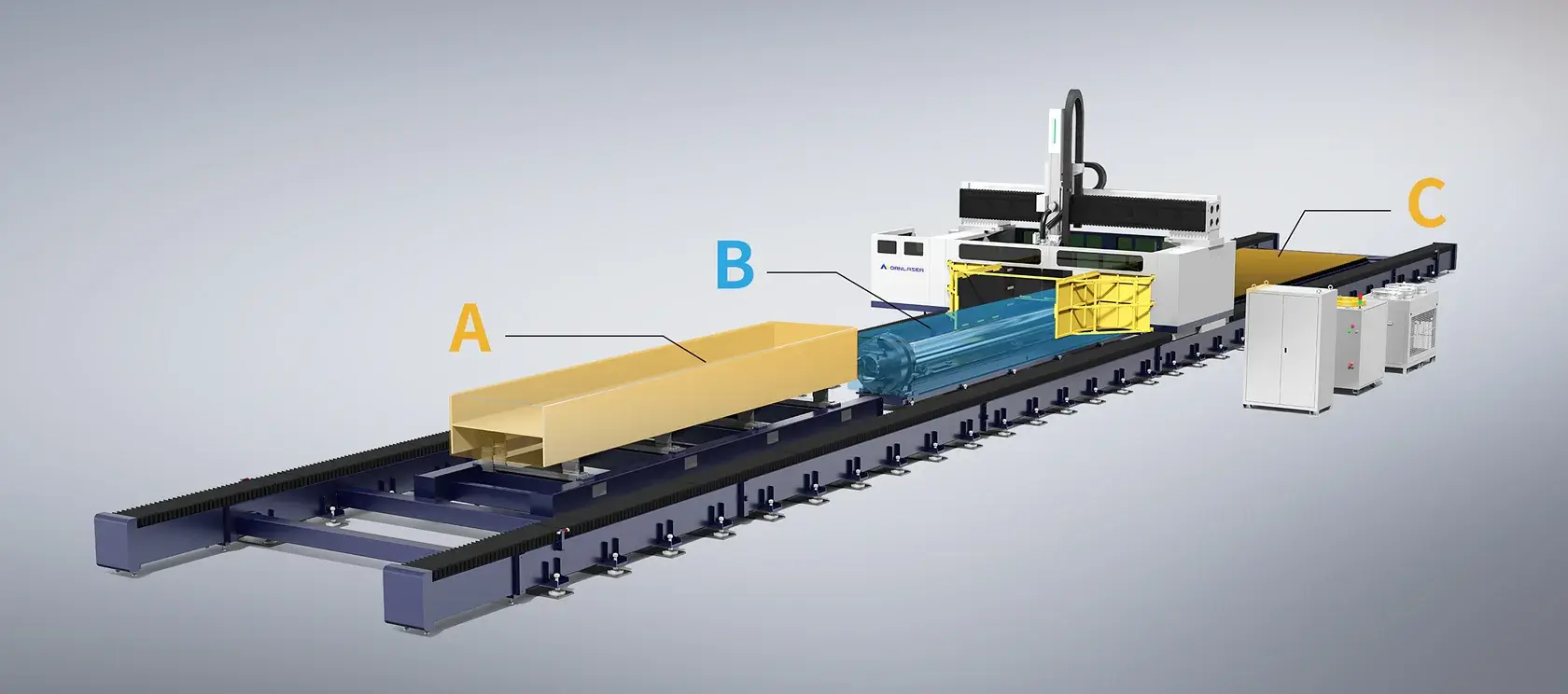

Ection steel cutting machines offer flexible station configurations to match actual processing needs. Each station can be customized with three options:
· Plate cutting – Modular design compatible with standard flat cutting platforms
· Profile cutting – Pneumatic table for H-profiles
· Tube cutting – Dedicated table for heavy-duty round tubes
Cutting parameters can be adjusted in real time during operation, supporting workpiece surface height tracking, ±45° bevel cutting, multiple cutting modes, and various piercing methods for maximum flexibility and precision.

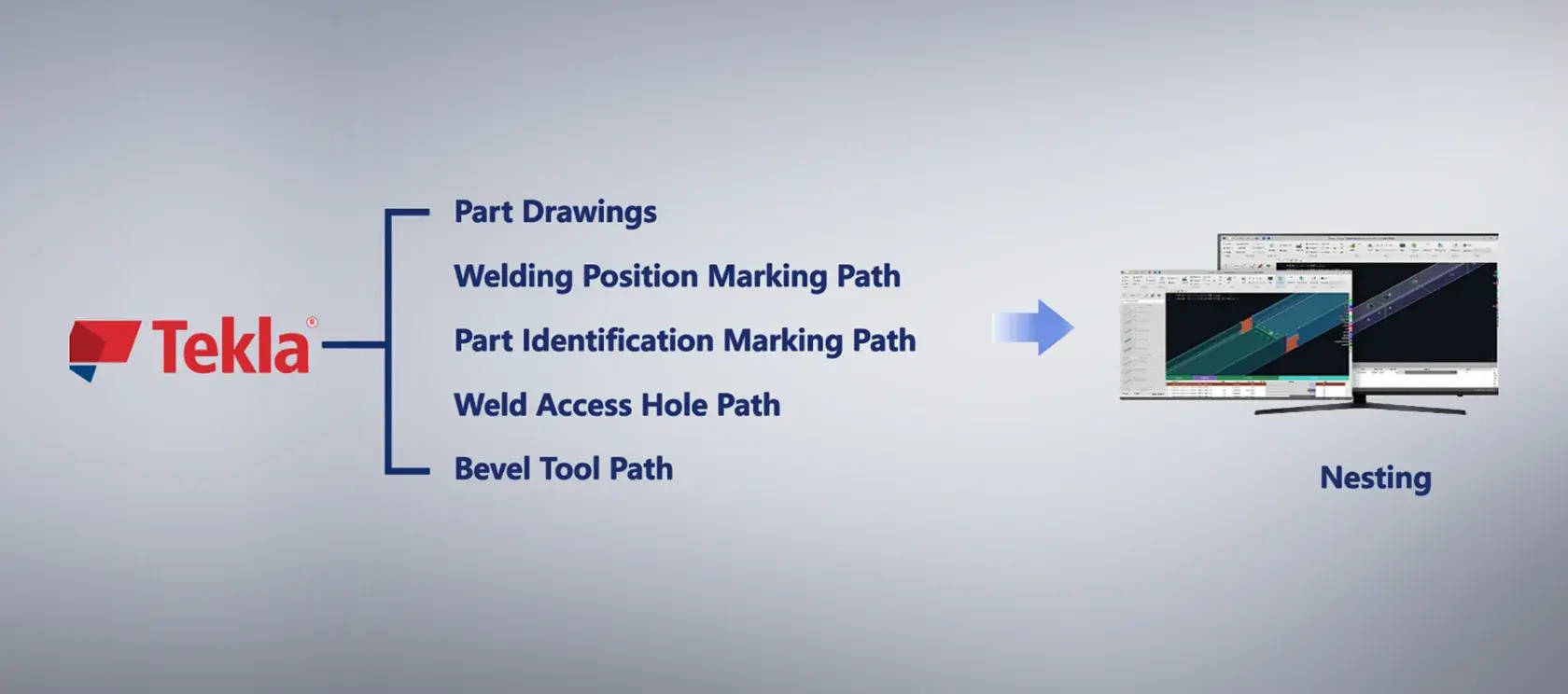

Paired with TubesT steel profile nesting software, it seamlessly integrates with Tekla for efficient drawing, nesting and optimized toolpaths. It automatically prints part names and welding positions on each piece, simplifying traditional workflows and boosting efficiency.
Model | H45100 | HD60120 |
|---|---|---|
Profile steel Cutting Range (Customizable) | Width: 150mm≤h≤1000mm Height: 100mm≤b≤450mm | Width: 150mm≤h≤1200mm Height: 100mm≤b≤600mm |
Maximum pipe length | 13000mm (Single Station) | 13000mm (Single Station) |
Laser Power | 12-40kW | 12-40kW |
Machining area(length×width) (Vertical cutting) | 13000×2000mm | 13000×2500mm |
Machining area(length×width) (bevel cutting) | 12400×1400mm(F250) 12400×1350mm(F300) | 12400×1900mm(F250) 12400×1850mm(F300) |
