Advanced control system and quality components ensure consistent laser performance and cutting accuracy, delivering reliable results in long-term, high-load production.
Fully enclosed design isolates laser radiation, smoke, and dust, improving operator safety while meeting international safety standards.
Optimized energy use and intelligent gas control reduce operating costs, minimizing material waste and maintenance for better return.
High-speed motion system with a powerful laser source improves cutting efficiency, enabling fast processing while maintaining excellent edge quality.

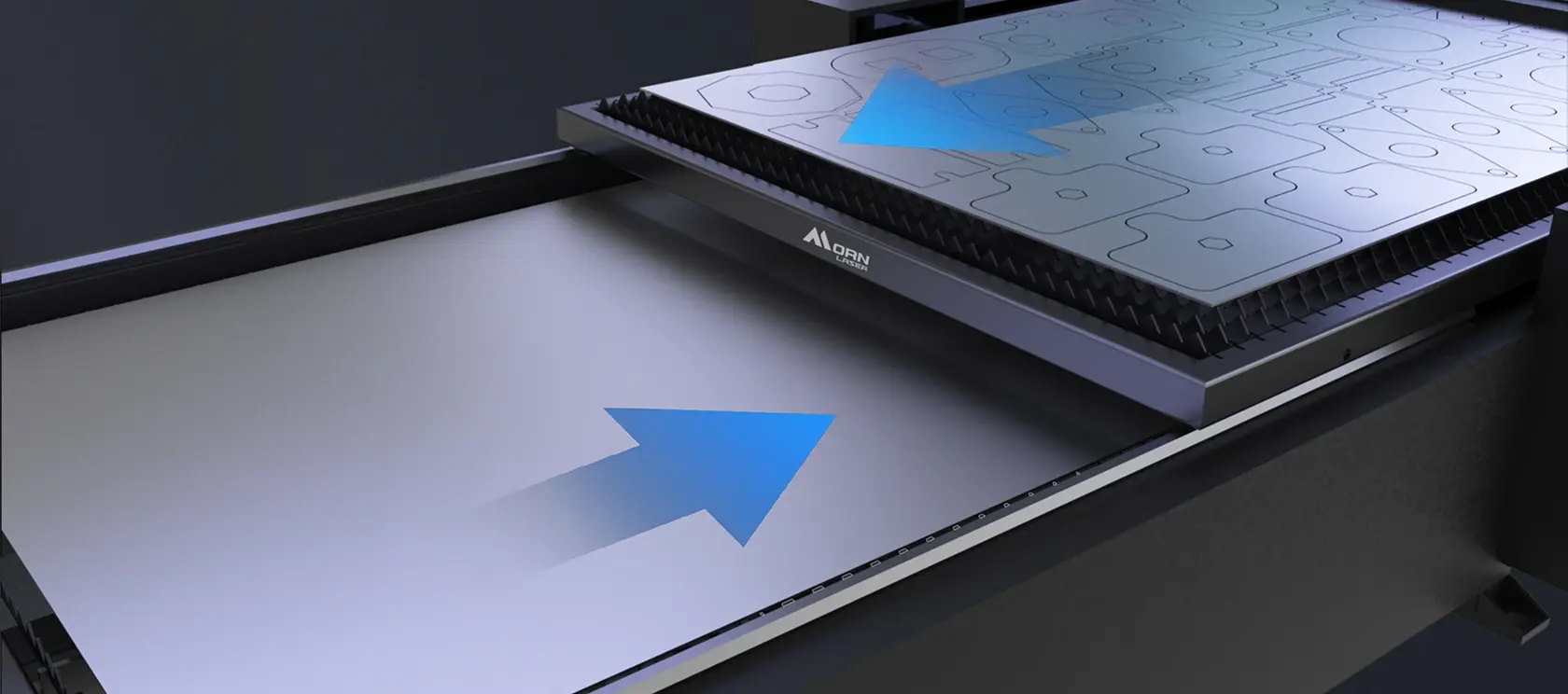

Dual-Motor, Dual-Control Exchange Table System
Enables flexible and efficient material handling with simultaneous dual or single input/output operations.

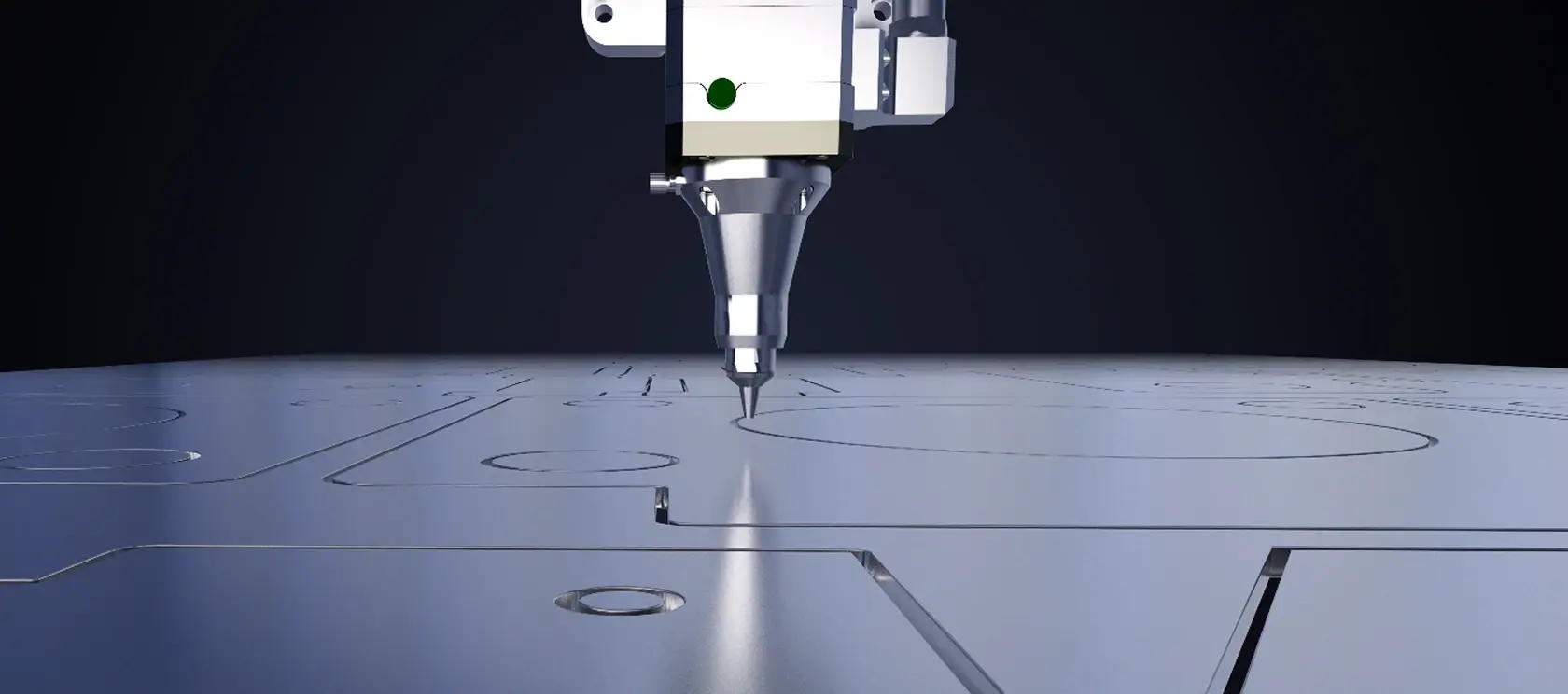

Automatically adjusts focal position according to material thickness for consistent and high-precision cutting results, improving processing speed and stability while reducing manual adjustment and ensuring reliable performance in enclosed operation.

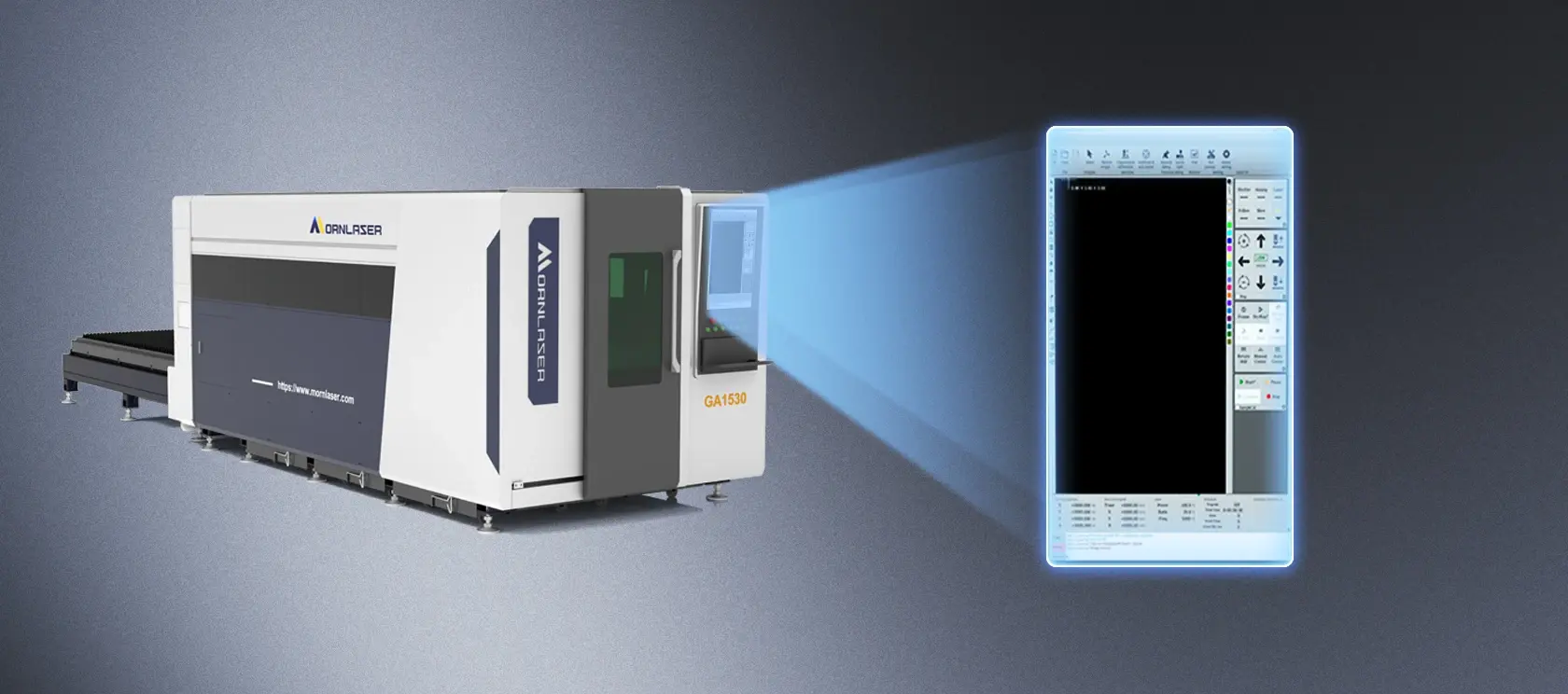

Advanced intelligent control system enables real-time monitoring and adaptive processing for optimized cutting performance, ensuring stable operation, higher efficiency, and precise coordination across all machining parameters in enclosed laser systems.

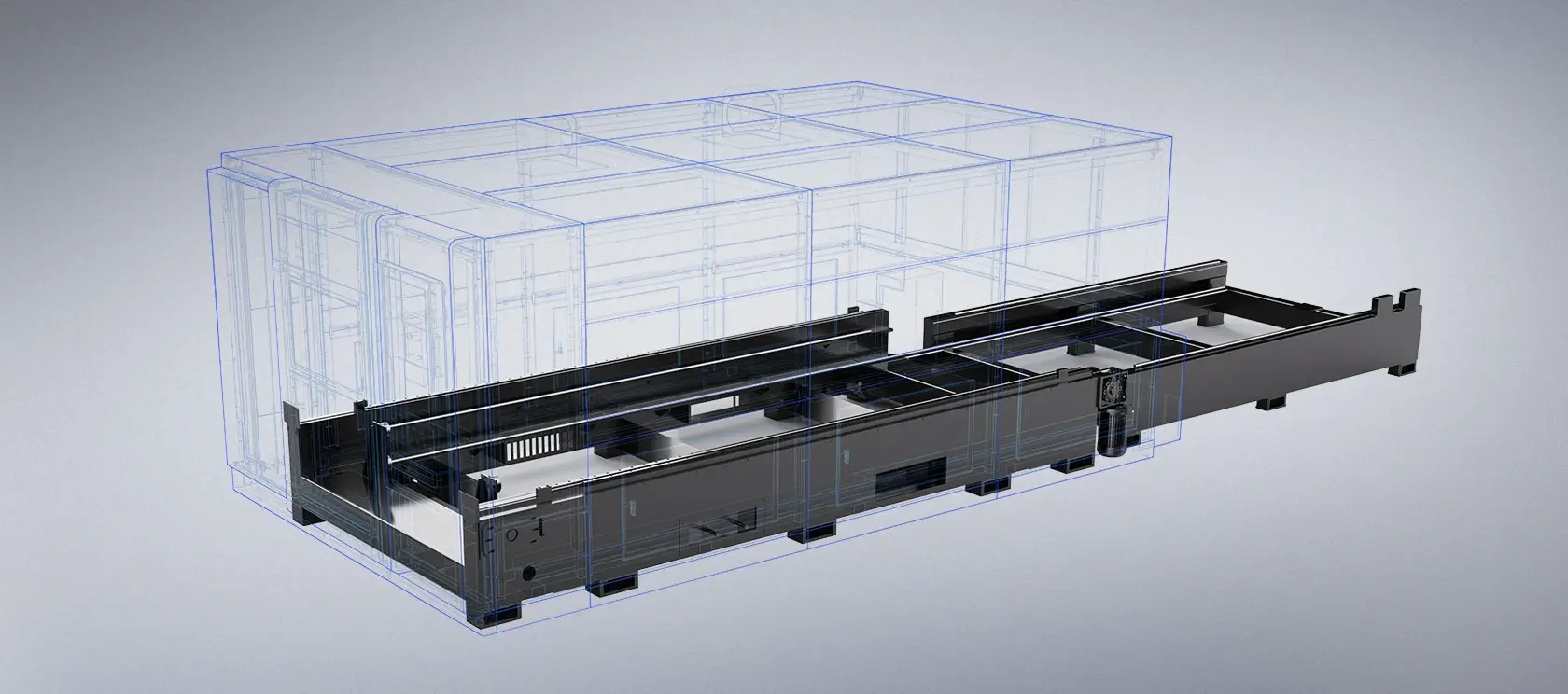

The bed undergoes high-temperature annealing to effectively eliminate welding stress, significantly enhance structural stability and shock resistance, and minimize cutting errors caused by vibration during high-speed operation.
Model | GA3015 | GA4015 | GA6015 | GA6020 | GA6025 |
|---|---|---|---|---|---|
Cutting Area(Length×Width) | 1500mm×3050mm | 1530mm×4100mm | 1530mm×6100mm | 2100mm×6100mm | 2600mm×6100mm |
Laser Power | 3-12kW | 3-12kW | 12kW | 12kW | 12kW |
X/Y Axis Positioning Accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
X/Y Axis Re-positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Max. Linkage Speed | 95m/min | 95m/min | 95m/min | 110m/min | 110m/min |
Max. Linkage Acceleration | 1.1G | 1.1G | 1.1G | 1.5G | 1.5G |
