Flexible table size options adapt to different sheet sizes and production needs, supporting large-format processing while improving material utilization.
Optimized cutting parameters enable stable and efficient thick plate cutting, ensuring smooth edges and reducing secondary finishing.
Robust machine structure and high-quality components ensure stability, delivering consistent cutting accuracy and dependable operation.
High-speed motion system combined with optimized control improves overall throughput, enabling faster processing cycles and higher productivity.

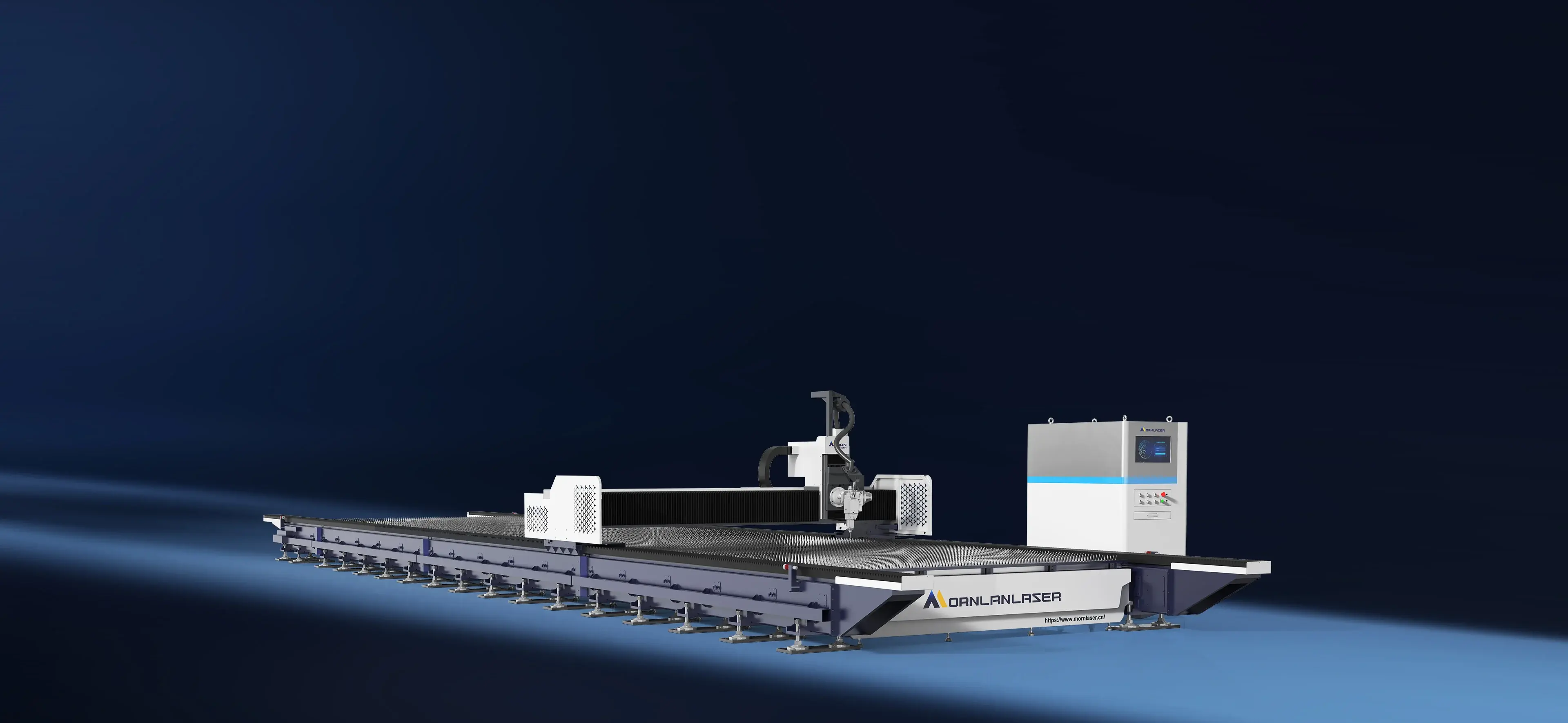

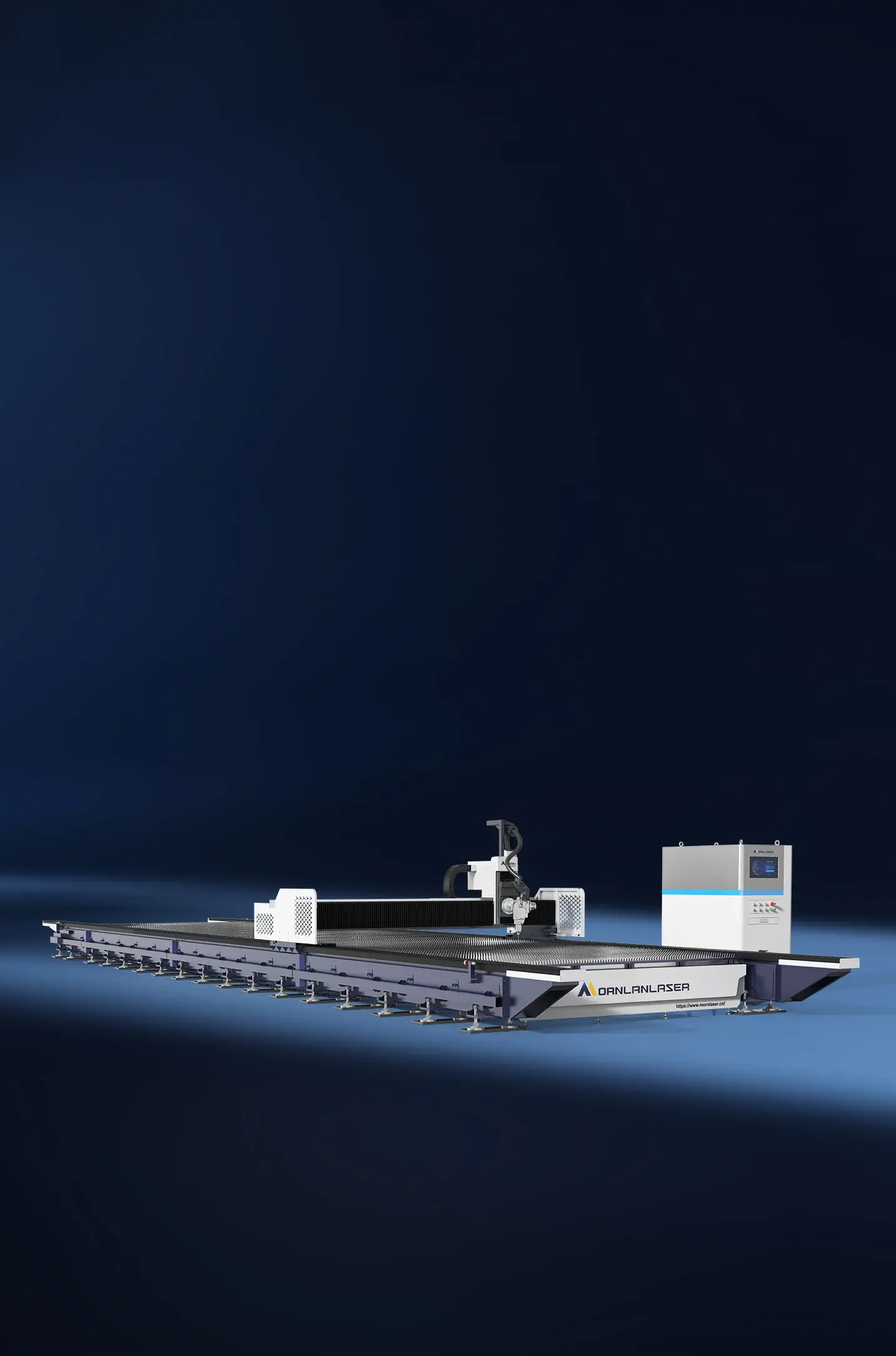

Ultra-Large Format Precision Cutting Capability

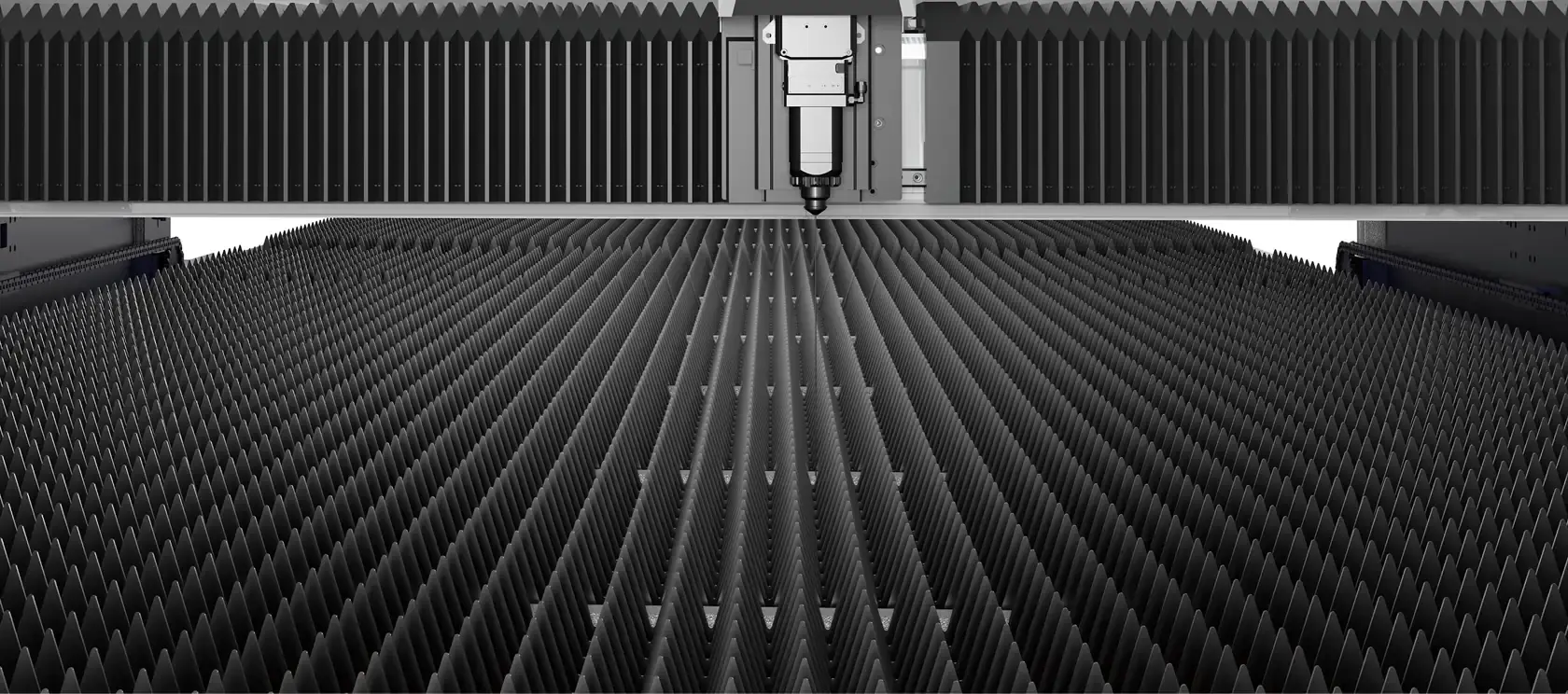

Extra-large cutting area accommodates oversized metal sheets and large structural components, enabling efficient large-format processing while improving material utilization.

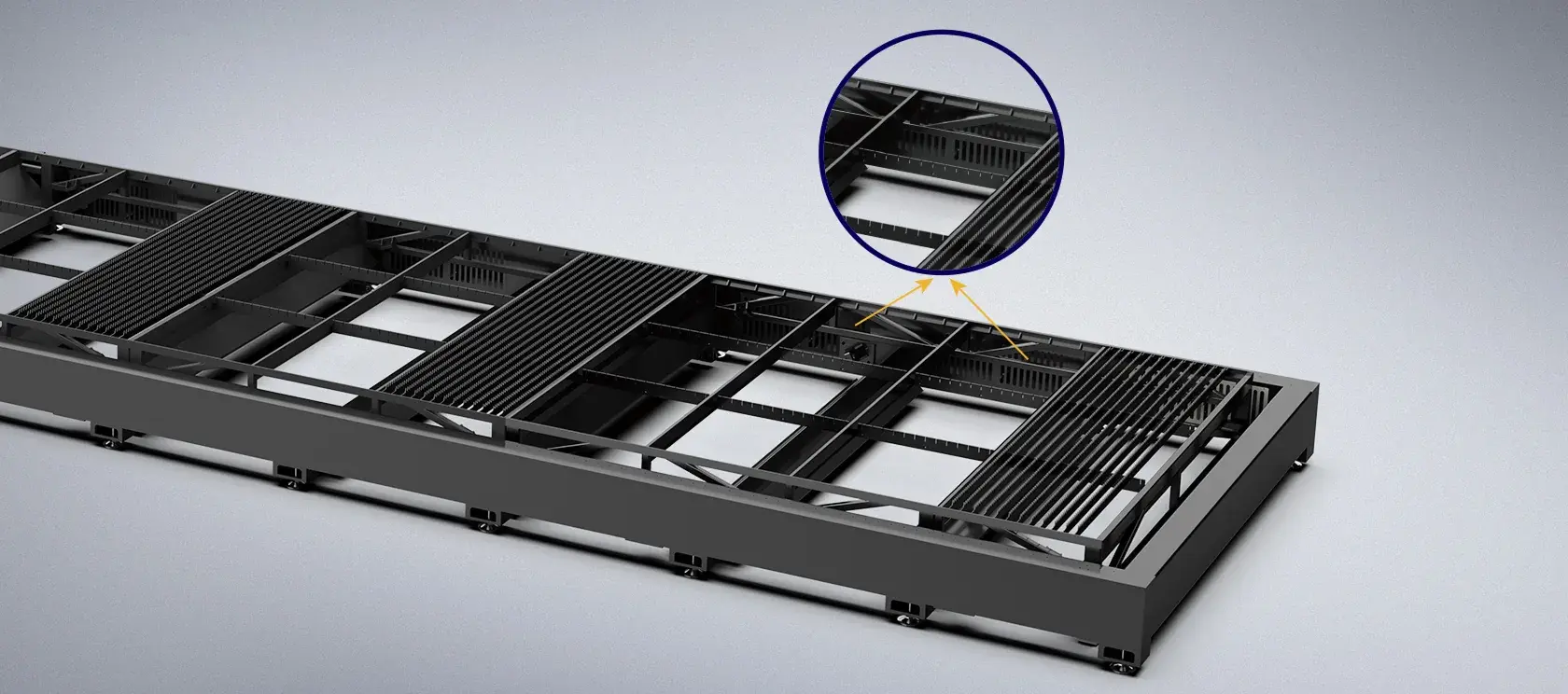

Advanced partitioned extraction structure efficiently removes fumes and dust from the cutting zone, ensuring a cleaner working environment and stable processing conditions.

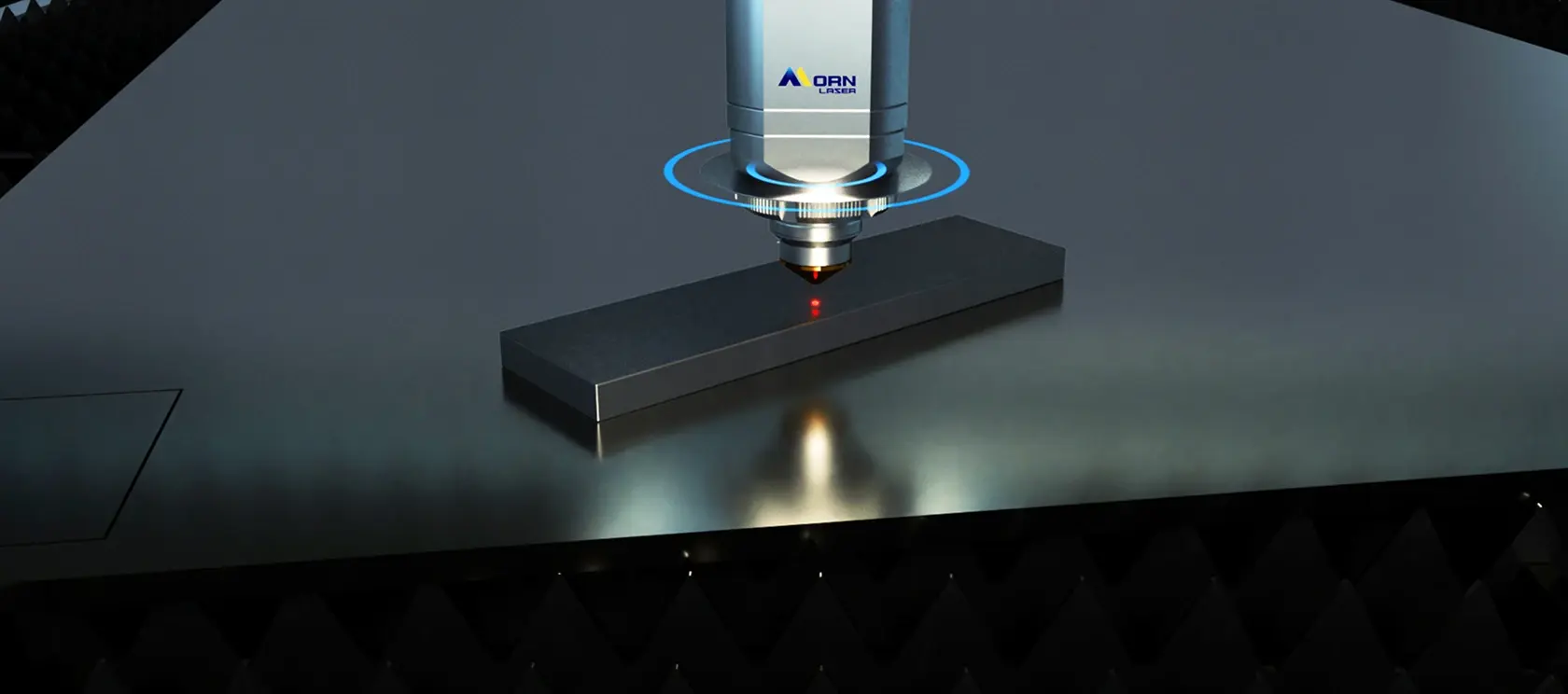

Automatically adjusts the focal position according to material thickness, delivering stable cutting performance, faster piercing, and consistently high edge quality.

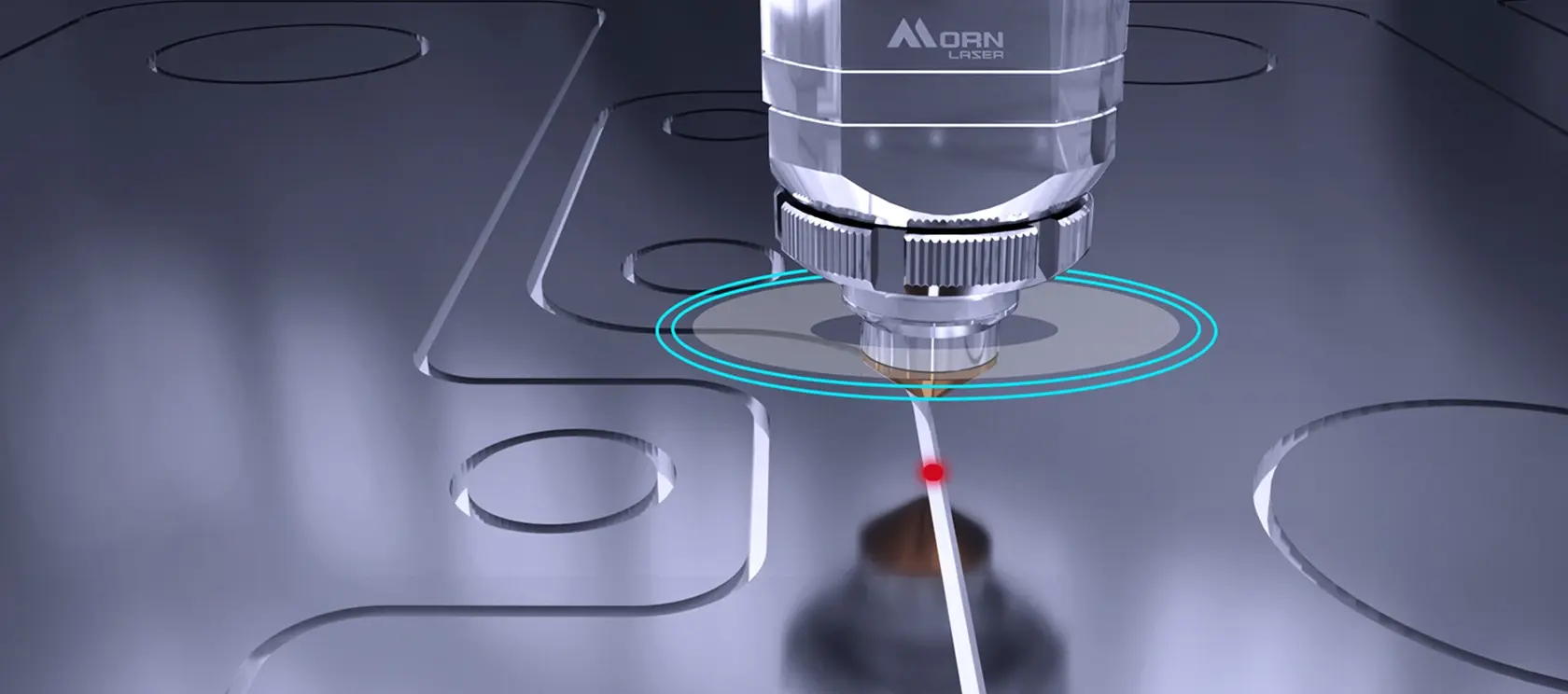

An intelligent collision avoidance system detects obstacles during machine travel, effectively protecting the cutting head and ensuring safe and stable operation.

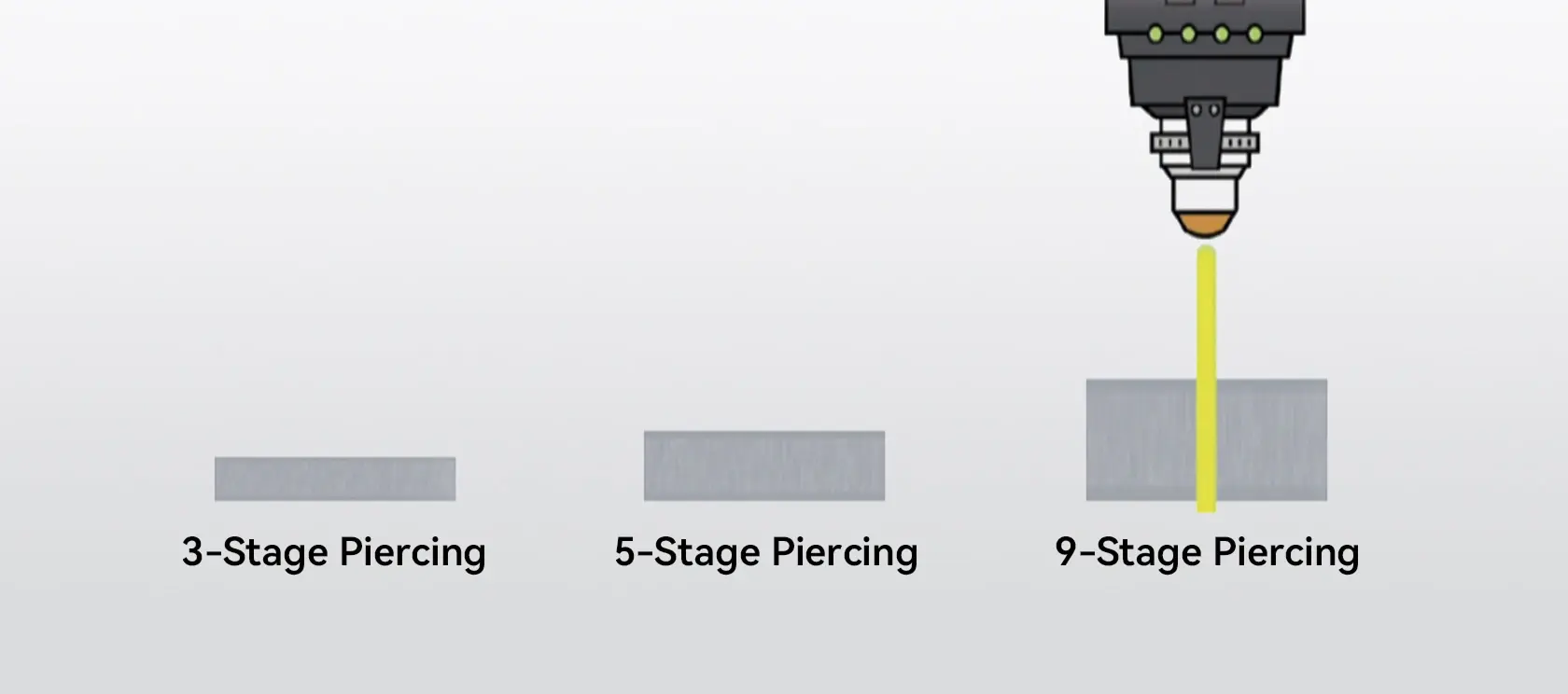

The advanced 9-stage piercing process optimizes parameters step by step, enabling faster piercing with reduced spatter and improved cutting quality on thick plates.
Model | FL12025 | FL14031 | FL20035 | FH12025 | FH14031 | FH20035 |
|---|---|---|---|---|---|---|
Cutting Area(Length×Width) | 12200mm×2600mm | 14200mm×3200mm | 20200㎜×3600㎜ | 12200mm×2600mm | 14200mm×3200mm | 20200㎜×3600㎜ |
Laser Power | 12-40kW | 12-40kW | 12-40kW | 60kW | 60kW | 60kW |
X/Y Axis Positioning Accuracy | ±0.08mm/m | ±0.08mm/m | ±0.08mm/m | ±0.08mm/m | ±0.08mm/m | ±0.08mm/m |
X/Y Axis Re-positioning Accuracy | ±0.06mm | ±0.06mm | ±0.06mm | ±0.06mm | ±0.06mm | ±0.06mm |
Max. Linkage Speed | 80m/min | 80m/min | 80m/min | 80m/min | 80m/min | 80m/min |
Max. Linkage Acceleration | 0.8G | 0.8G | 0.8G | 0.8G | 0.8G | 0.8G |
