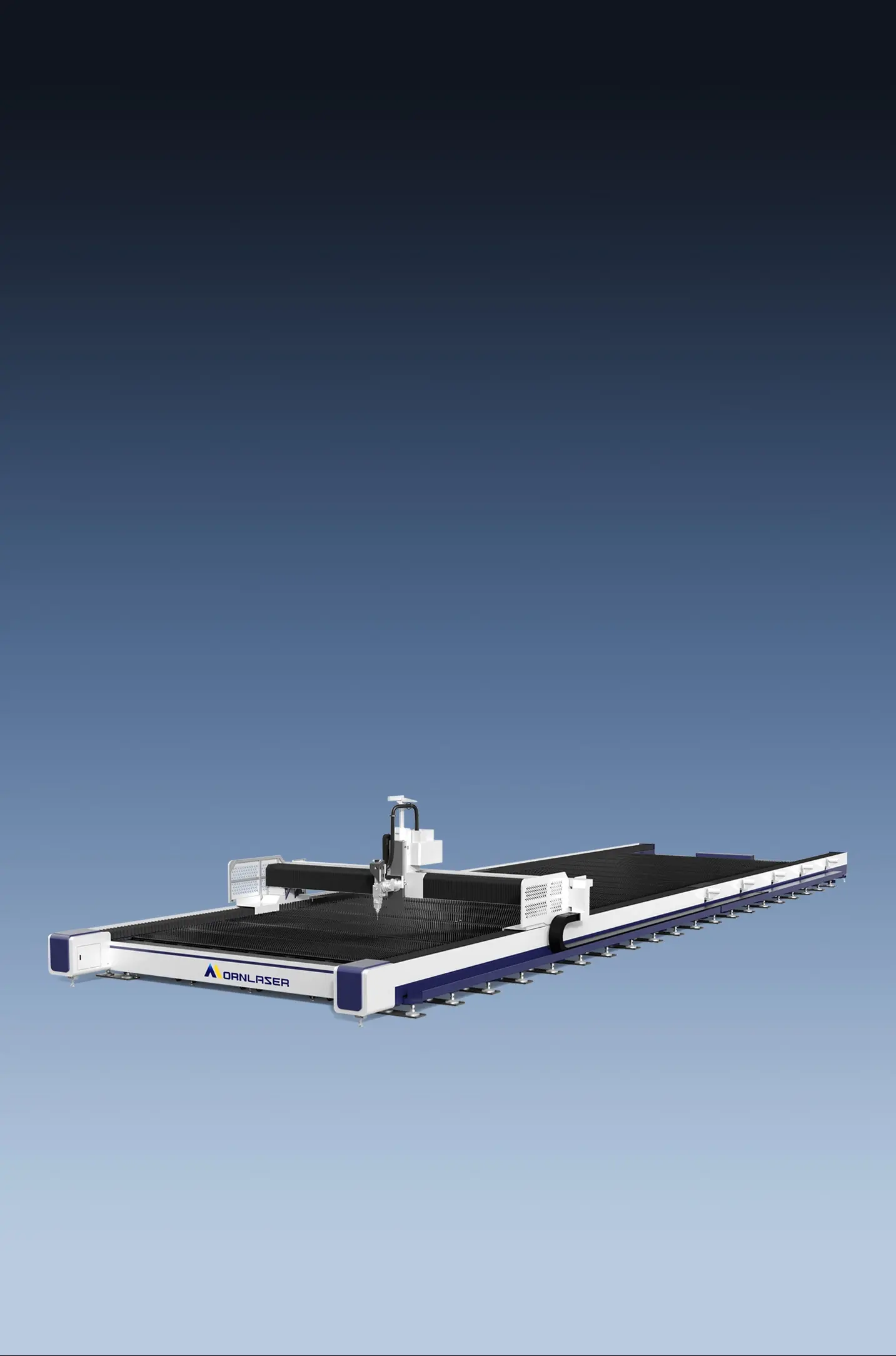

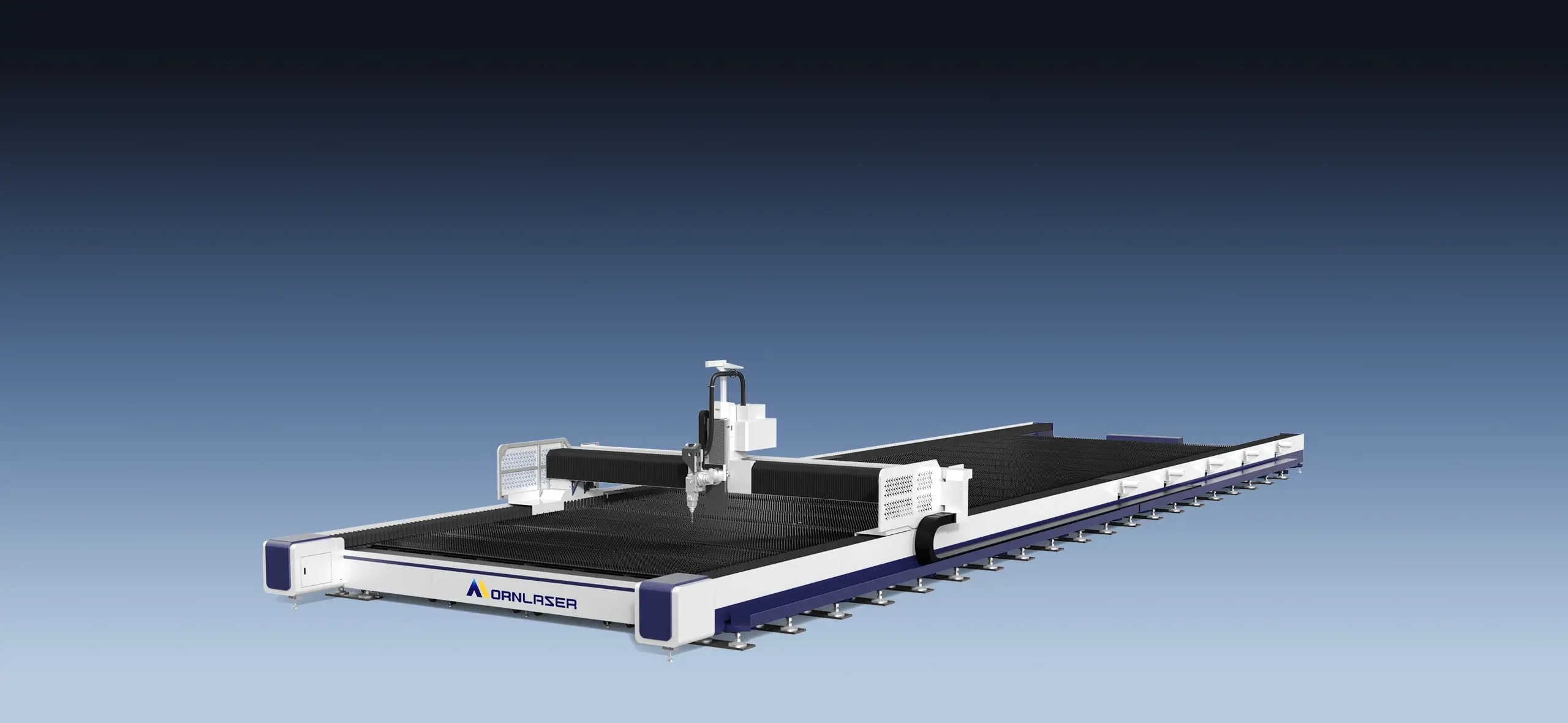

Laser–flame hybrid cutting technology, capable of efficiently processing both thin and thick plates
Max. O₂ Cutting Thickness (Positive Focus): 50 mm Max. Composite Edge-Start Cutting Thickness: 200 mm
±45° bevel cutting capability, enabling one-pass bevel forming and reducing secondary machining
Intelligent control system featuring automatic ignition, vertical compensation, and automatic slag removal for stable and efficient operation

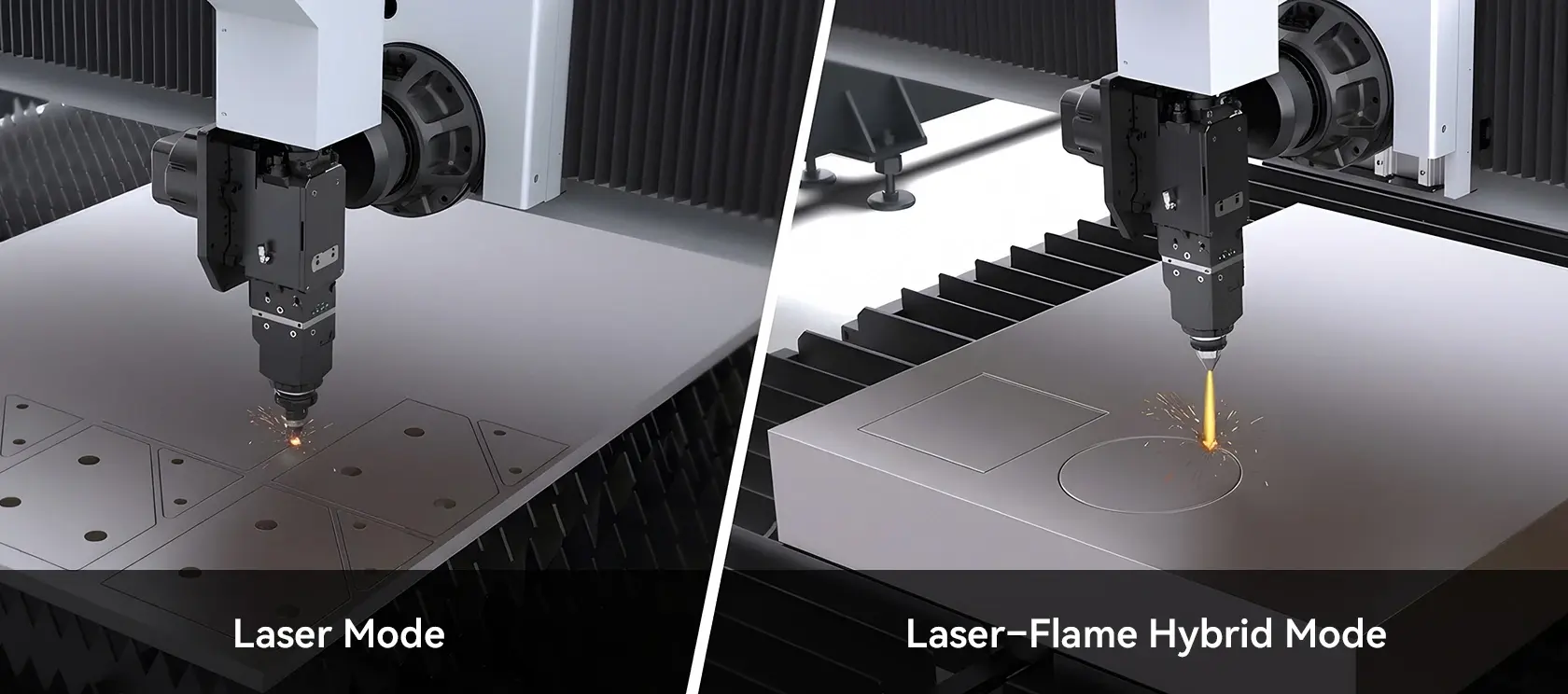

Laser Mode: High-speed air cutting for medium and thin plates, easily processing stainless steel.
Hybrid Mode: Laser piercing + flame expansion enables effortless thick plate cutting.

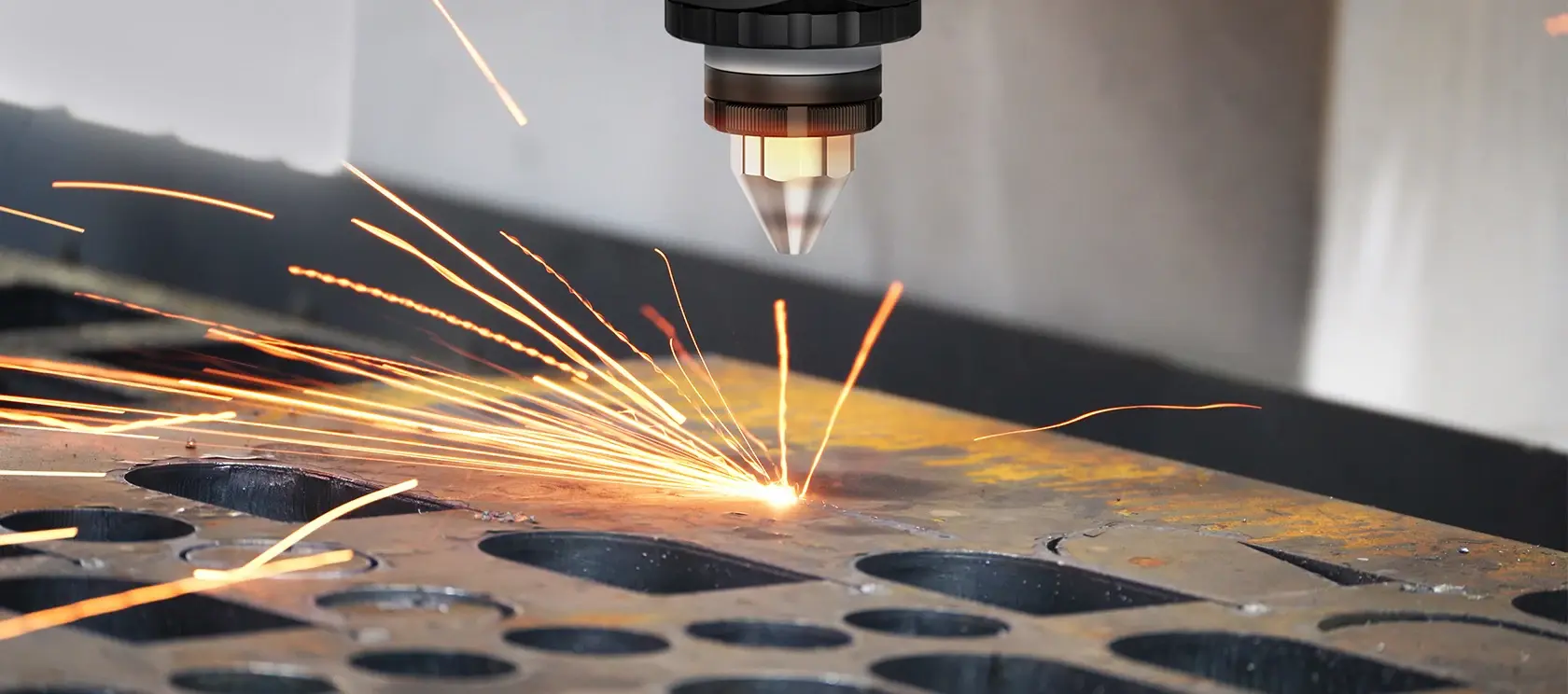

Traditional flame piercing requires preheating and is inefficient.The laser-flame hybrid technology enables instant piercing with automatic slag removal,
eliminating blowholes and slag adhesion while improving efficiency by over 50%.

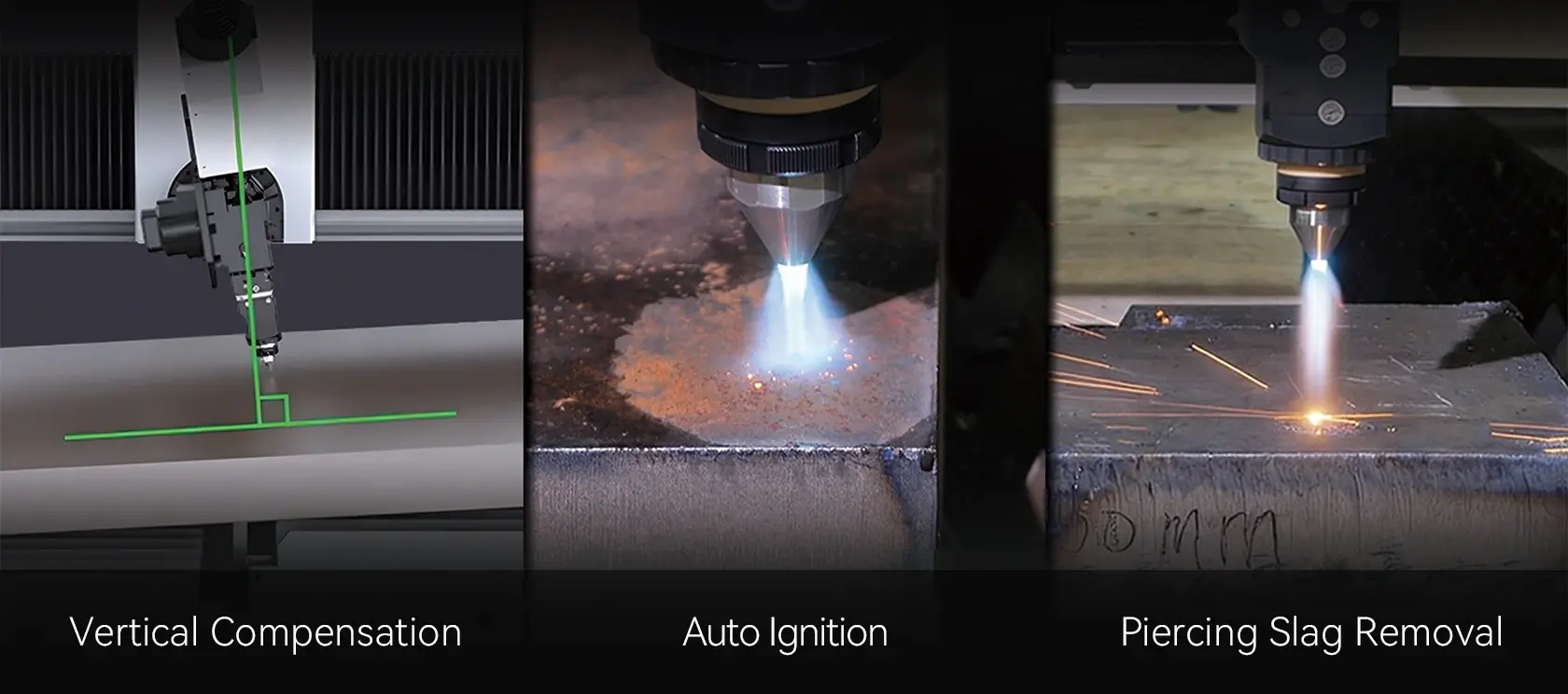

Vertical Compensation: Automatic perpendicularity adjustment for clean cuts.
Auto Ignition: One-touch start for safe operation.
Piercing Slag Removal: Auto slag discharge, no manual handling required.

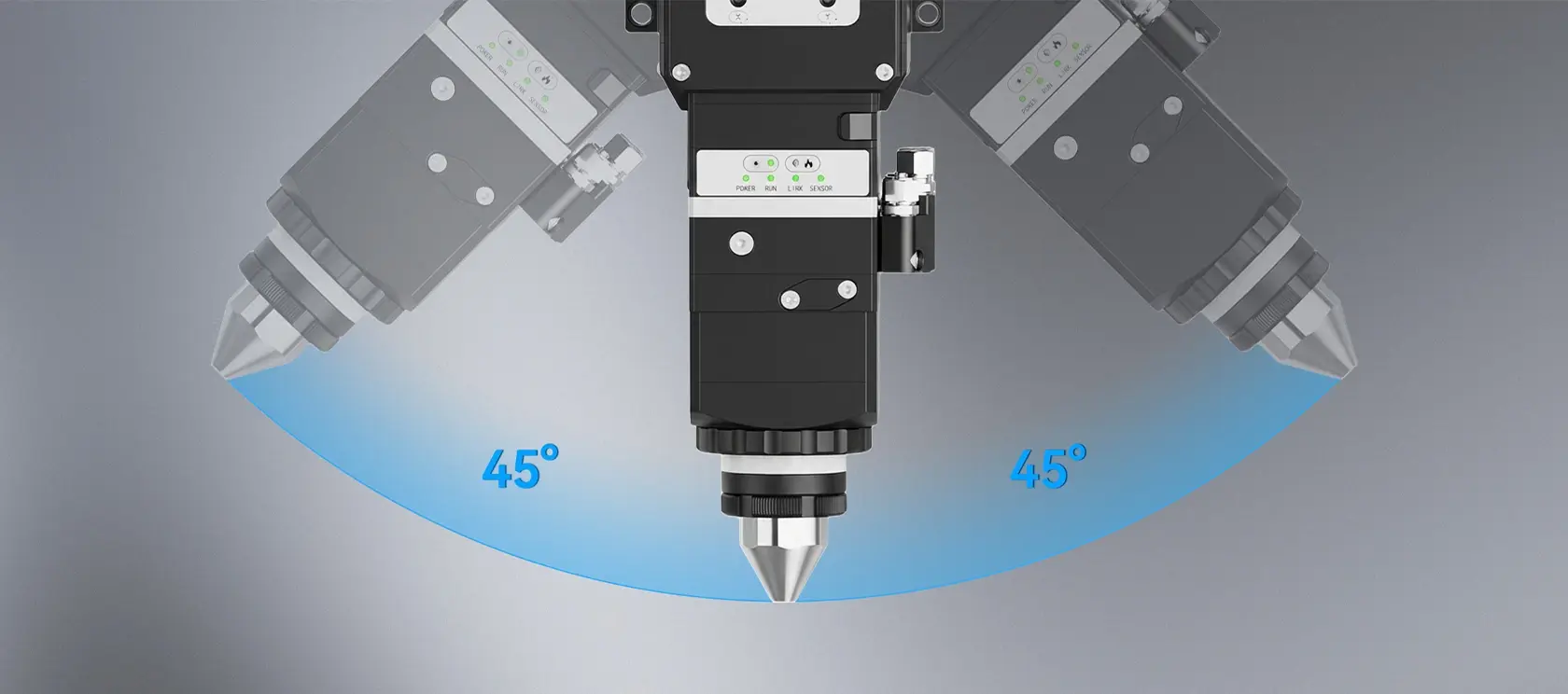

Supports ±45° V / X / Y / K bevel cutting, reducing secondary machining, shortening processing steps, and improving overall efficiency.

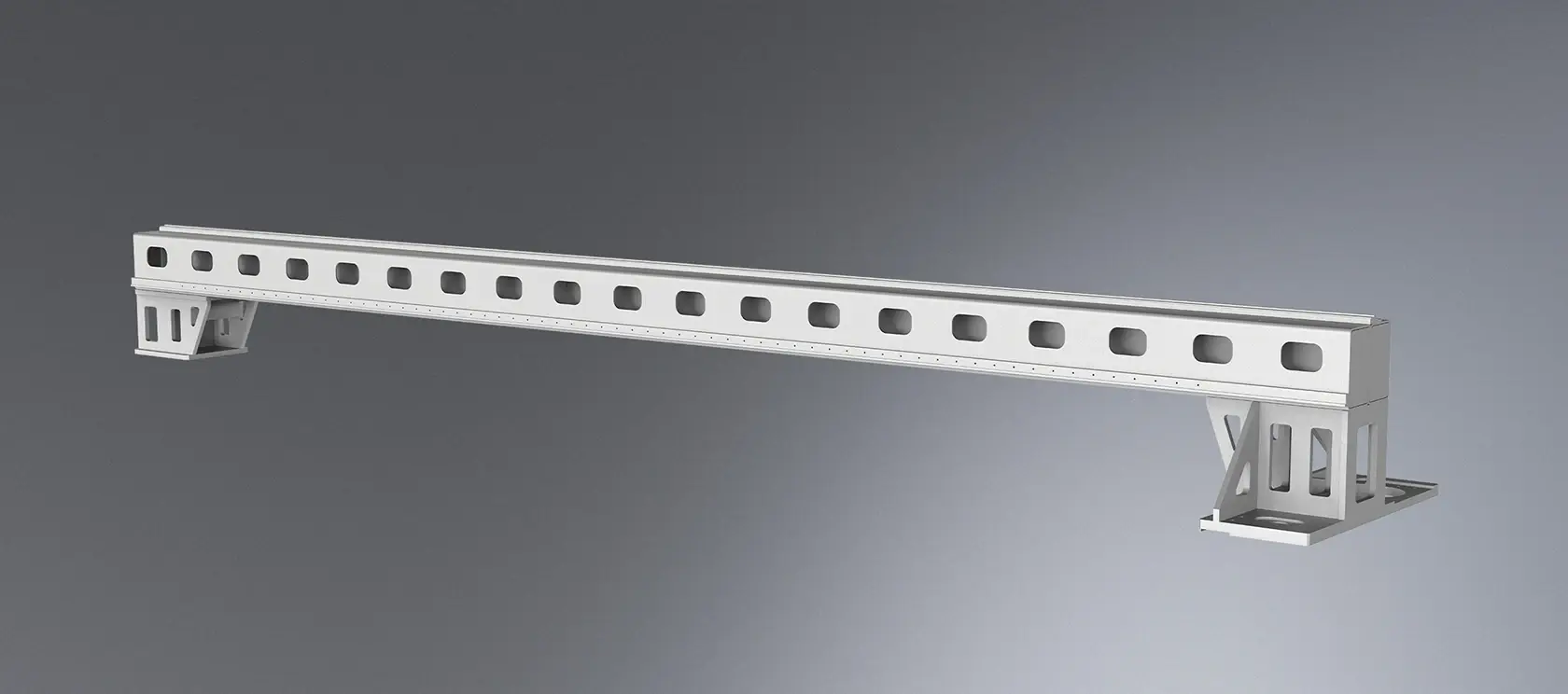

Aerospace-grade honeycomb aluminum beam for high strength and low weight.
Precision reducer & Inovance servo.
FSCUT9100 bus control, modular and expandable.
Model | FH-X12025 / 13031 / 20035 |
|---|---|
Sheet Cutting Range | 12200×2600mm / 13200×3200mm / 20200×3600mm |
Laser Power | 6kW / 20kW |
X/Y Positioning Accuracy | ±0.08mm/m |
X/Y Repeat Positioning Accuracy | ±0.06mm/m |
Max. X/Y Axis Speed | 80m/min |
Bevel Cutting Angle | 0–±45° |
Carbon Steel Cutting Capacity (Thickness) | Max. Air Cutting: 6mm(6kW) / 20mm(20kW) Max. O₂ Positive Focus Cutting: 25mm(6kW) / 50mm(20kW) Max. Hybrid Mode Pierce Cutting: 180mm(6kW / 20kW) Max. Hybrid Mode External Cutting: 200mm(6kW / 20kW) |
