Integrated bevel cutting technology significantly reduces secondary processing steps, improving overall production efficiency by up to 75% compared with traditional machining methods.
Advanced motion control and high-performance laser components ensure stable cutting accuracy and consistent processing quality for complex parts.
Completes bevel cutting in a single process without additional machining, delivering smooth edges and weld-ready parts directly from the machine.
Optimized cutting algorithms and an intelligent control system enable faster cutting speeds, stable performance, and efficient processing for high-volume industrial production.

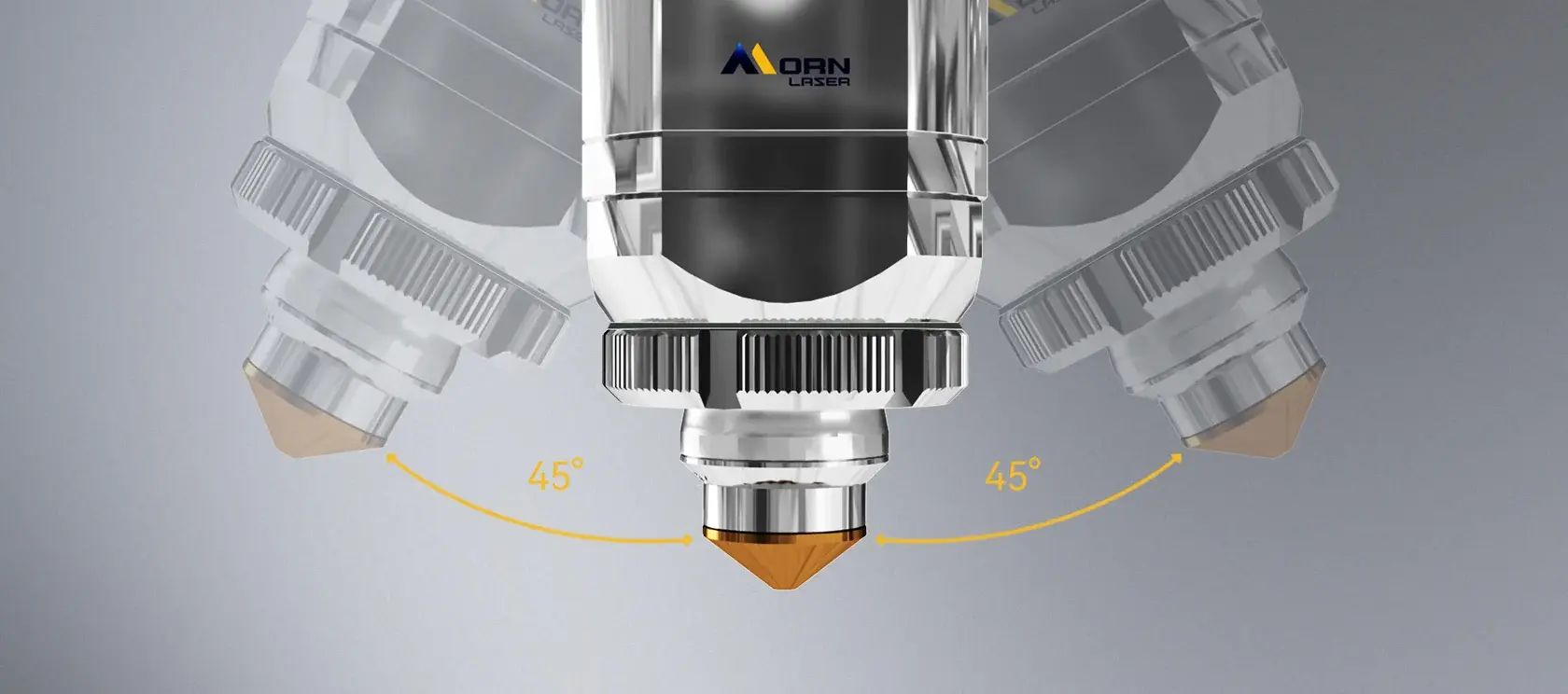

+45° Bevel Cutting Capability
Supports up to +45° bevel cutting, enabling accurate bevel preparation directly during the cutting process. It eliminates additional machining and improves overall processing efficiency by up to 75% compared with traditional methods.

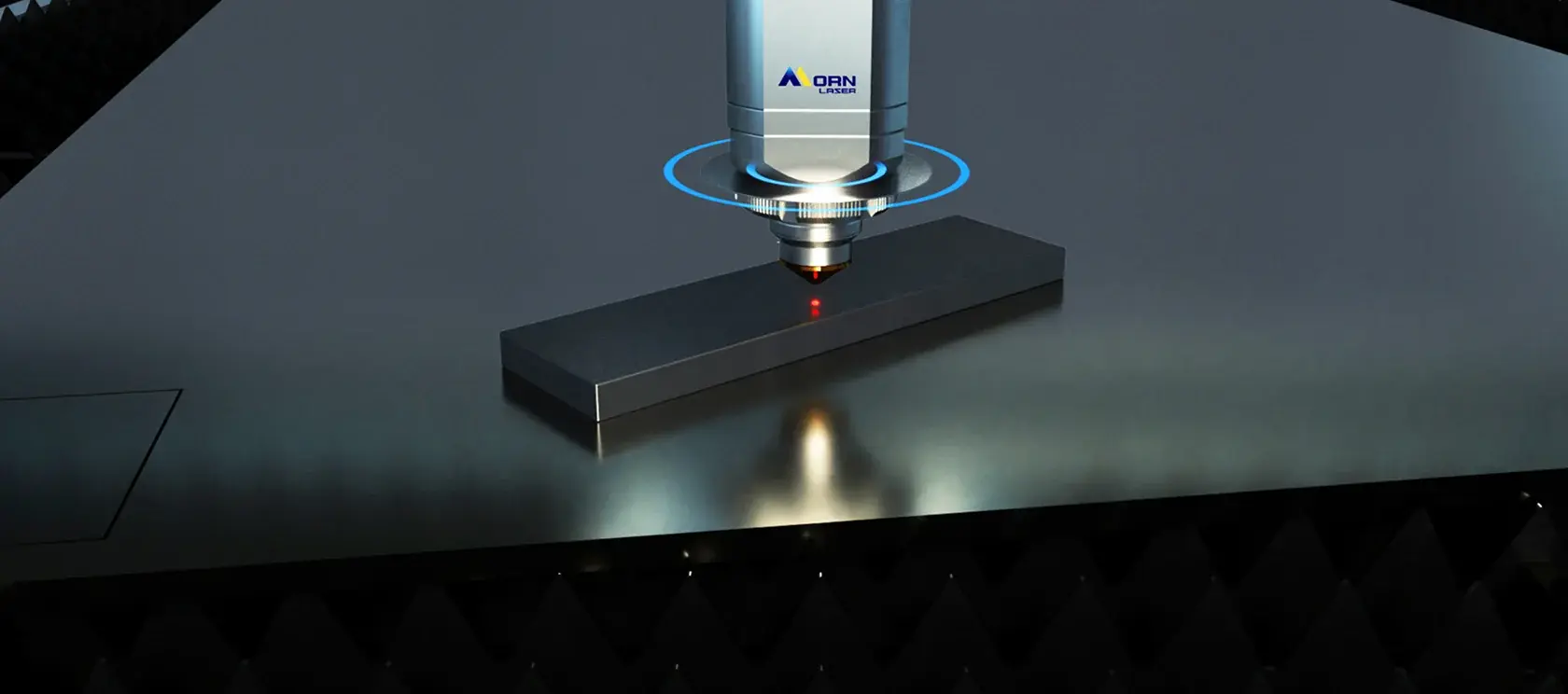

An intelligent collision avoidance system detects obstacles during machine travel, effectively protecting the cutting head and ensuring safe and stable operation.

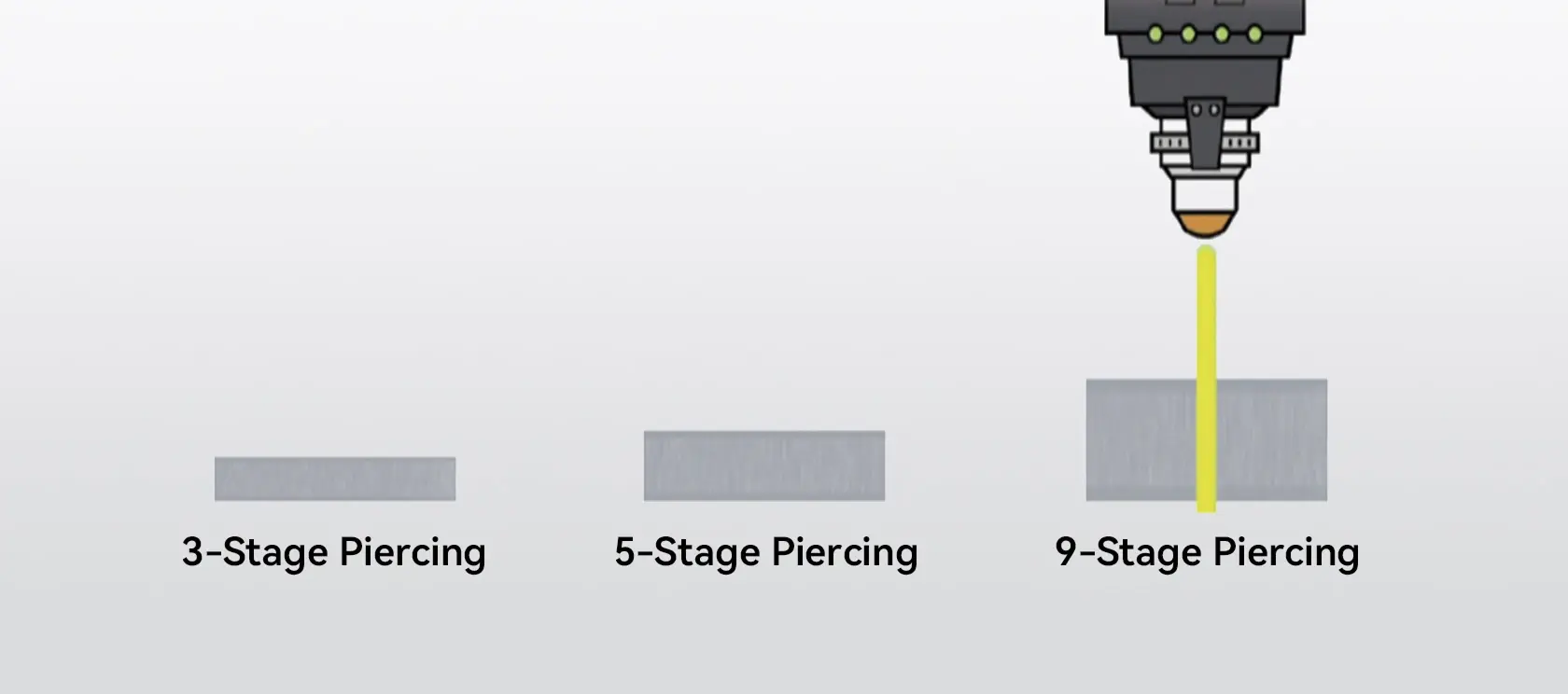

The advanced 9-stage piercing process optimizes parameters step by step, enabling faster piercing with reduced spatter and improved cutting quality on thick plates.

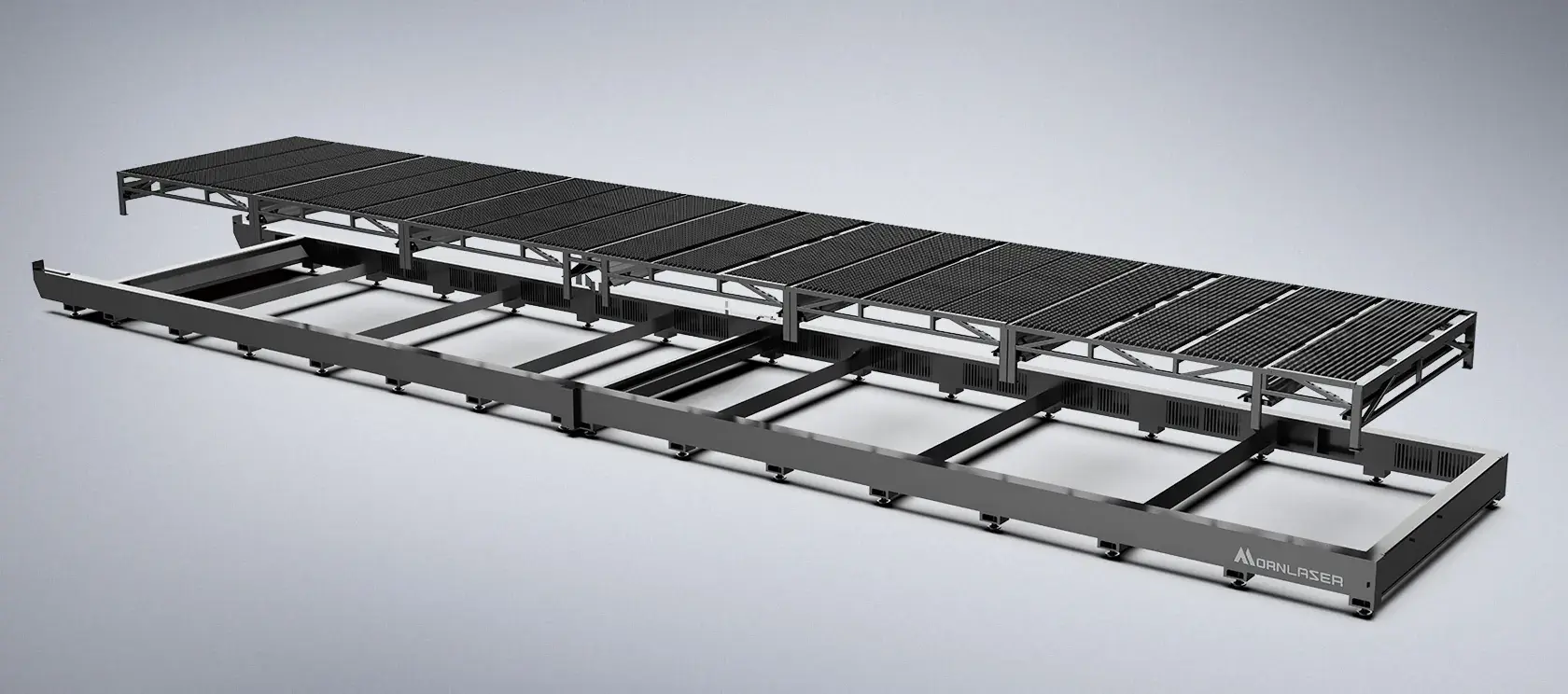

The ultra-large cutting area accommodates oversized plates and complex parts, improving material utilization and enabling efficient processing for large-scale production.

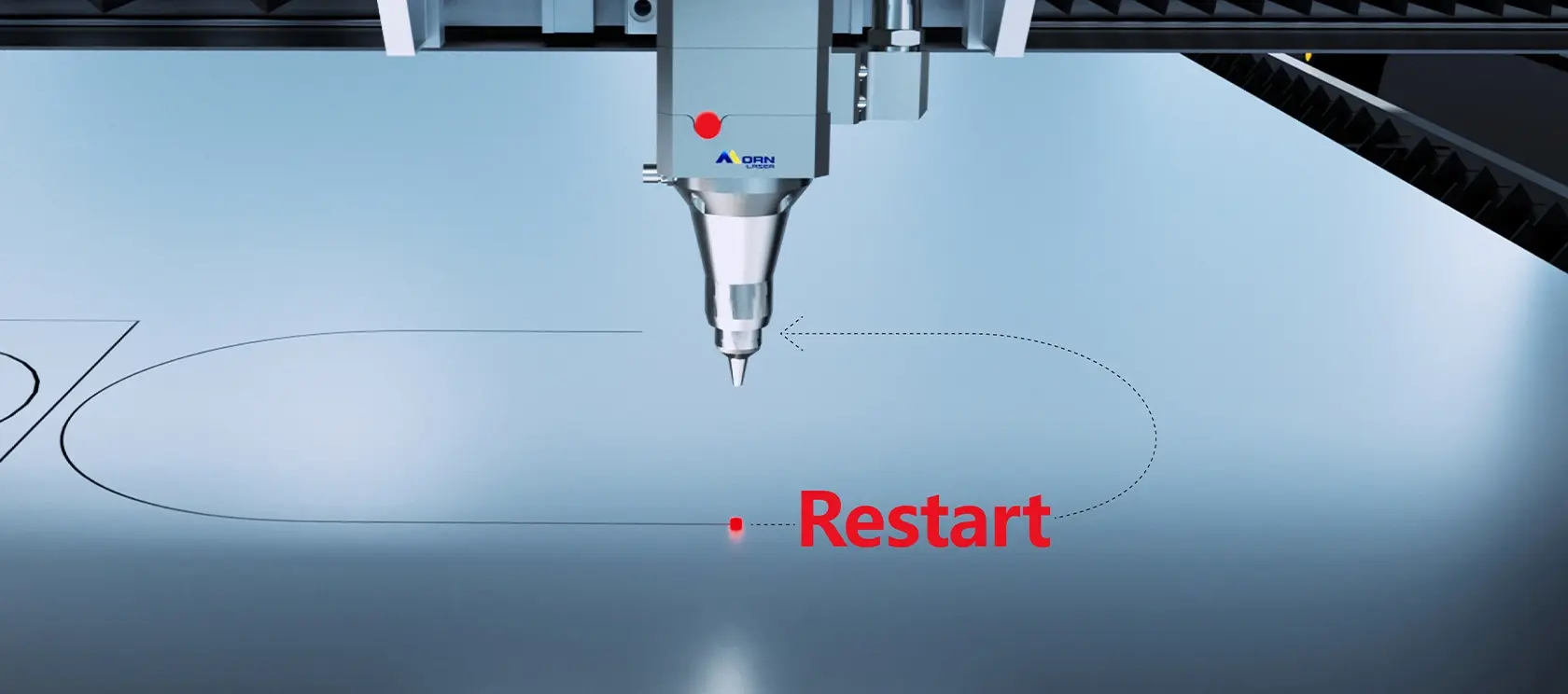

The intelligent power-off memory function automatically records the cutting position and locates the breakpoint after restart, allowing cutting to resume seamlessly and minimizing material waste.
Model | FD6025 | FD8025 | FD12025 | FD14031 |
|---|---|---|---|---|
Cutting Area(Length×Width) | 6100mm×2600mm | 8100mm×2600mm | 12200mm×2600mm | 14200mm×3200mm |
Laser Power | 3-40kW | 3-40kW | 20-40kW | 60kW |
Bevel Cutting | +45° (Expandable) | +45° (Expandable) | +45° (Expandable) | +45° (Expandable) |
X/Y Axis Re-positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.05mm |
Max. Linkage Speed | 80m/min | 80m/min | 80m/min | 110m/min |
Max. Linkage Acceleration | 0.8G | 0.8G | 0.8G | 1.4G |
