Maintains precise focus automatically, continuously reducing manual adjustment and ensuring consistently high-quality cutting performance efficiently.
Quickly identifies material edges for accurate alignment, minimizing errors and maximizing material use.
Optimizes part layout and automatically generates efficient cutting paths to reduce waste and cutting time.
Engineered for stable, reliable, and efficient operation with advanced built-in safety features that fully protect operators and sensitive equipment.
Automatically adjusts to optimal focus for varying material types and thicknesses, reducing setup time and enhancing piercing performance on thick plates. Delivers consistent, high-quality cuts with minimal manual intervention.
Optimized motion control enables rapid and precise part cut-off, reducing non-cutting time and improving overall processing efficiency for high-volume production..
Fly Cut technology enables continuous cutting of thin sheet patterns without repeated piercing, significantly increasing cutting speed and productivity while maintaining stable cutting quality.
Precision light grating detects crossbeam movement in real time and halts operation if an object enters the risk zone. Provides reliable protection for operators and equipment, maintaining uninterrupted, safe production.
Each suction port operates independently, efficiently targeting specific zones to maximize smoke and dust removal. Ensures a safer, cleaner cutting environment even during continuous heavy-duty operation.

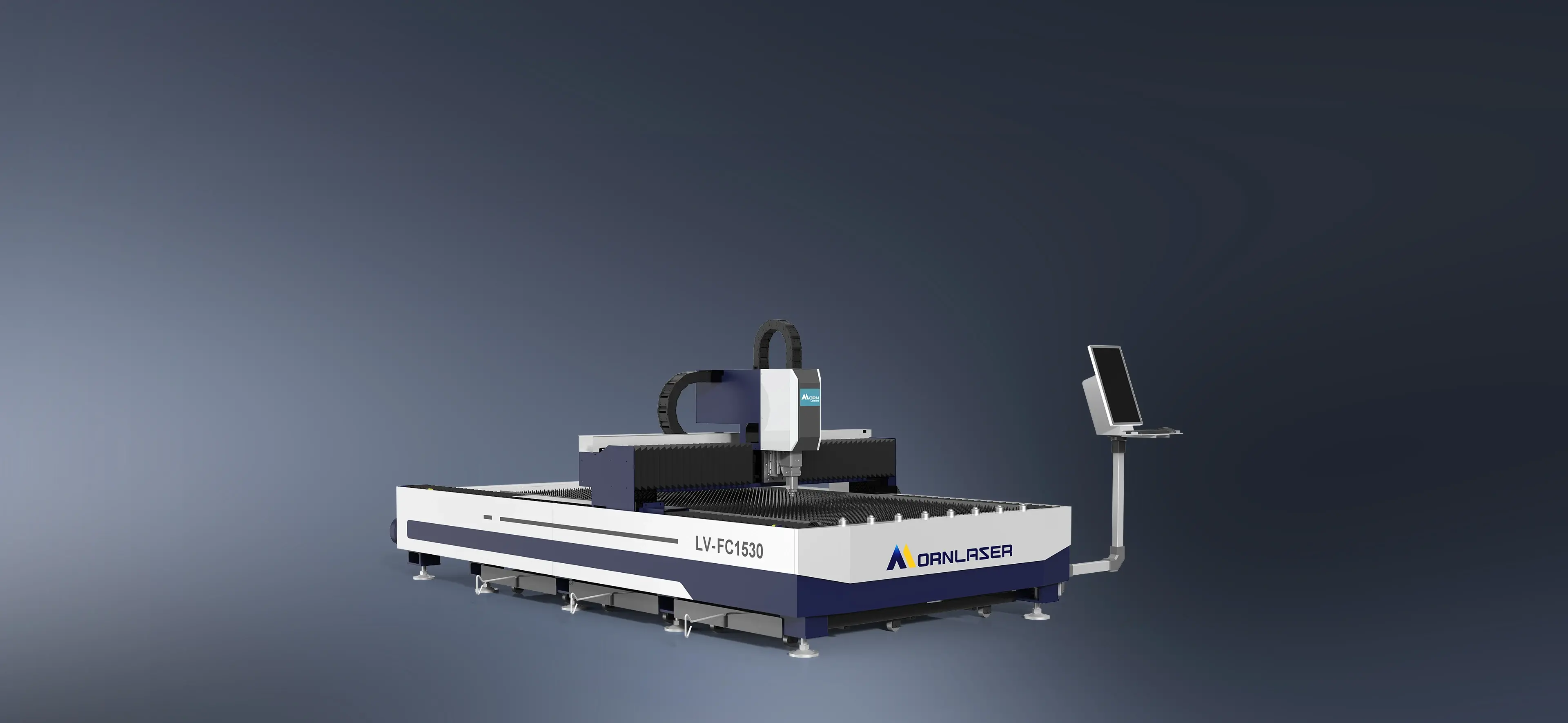

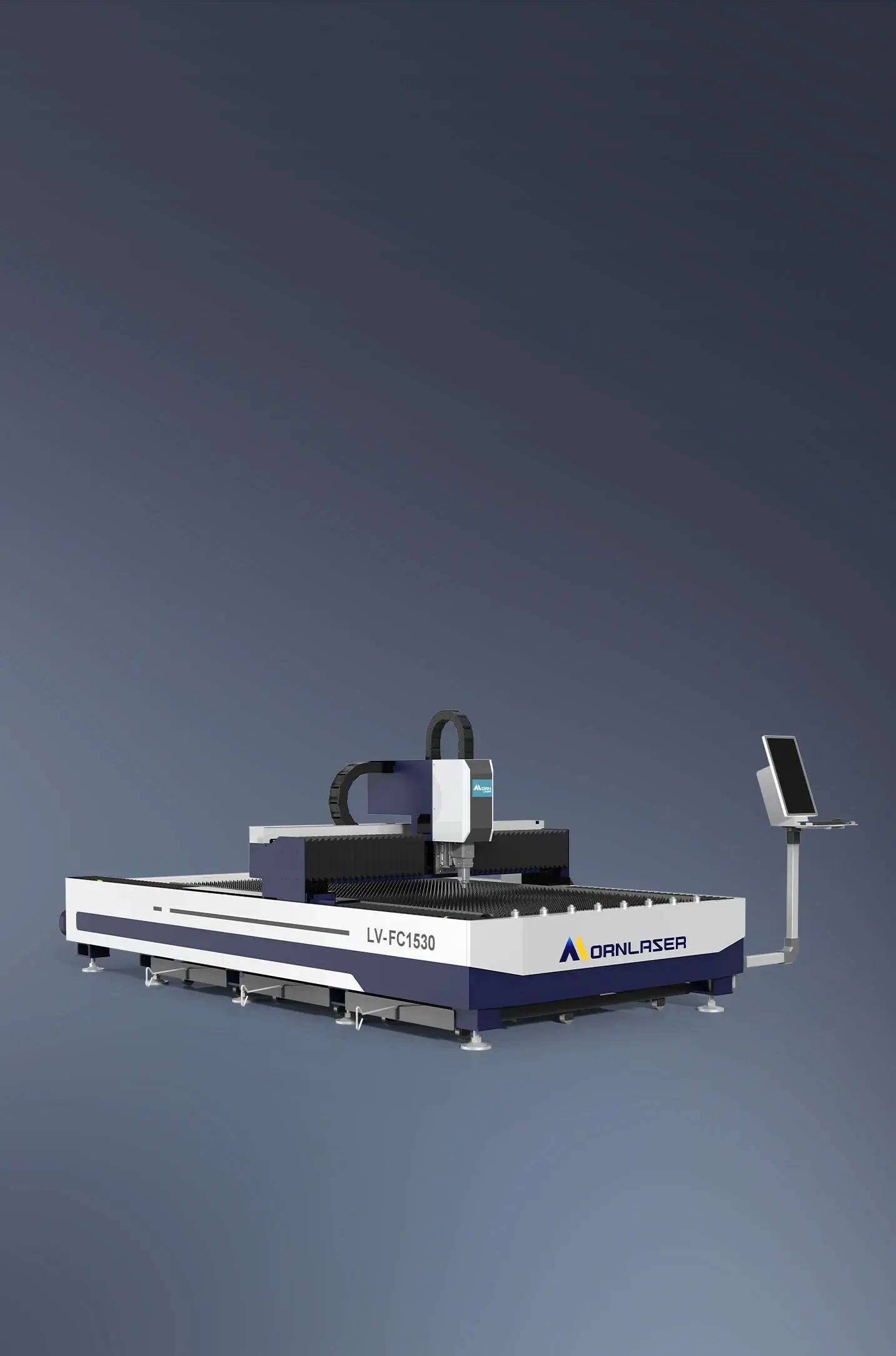

Model | FC3015 |
|---|---|
Cutting Area(Length×Width) | 3020mm×1500mm |
Laser Power | 1-3kW |
X/Y Axis Positioning Accuracy | ±0.05mm/m |
X/Y Axis Re-positioning Accuracy | ±0.03mm |
Max. Linkage Speed | 70m/min |
Max. Linkage Acceleration | 0.8G |
