Integrated plate and tube cutting reduces footprint and optimizes workshop layout, eliminating multiple setups while saving space and improving workflow efficiency.
One machine handles both sheet and tube processing with seamless switching, enhancing production flexibility and maximizing machine utilization.
All-in-one solution reduces equipment investment and maintenance costs, boosting productivity and material efficiency for higher return on investment.
High-speed cutting and intelligent control enable fast processing and stable performance, improving throughput and ensuring consistent, high-quality output.

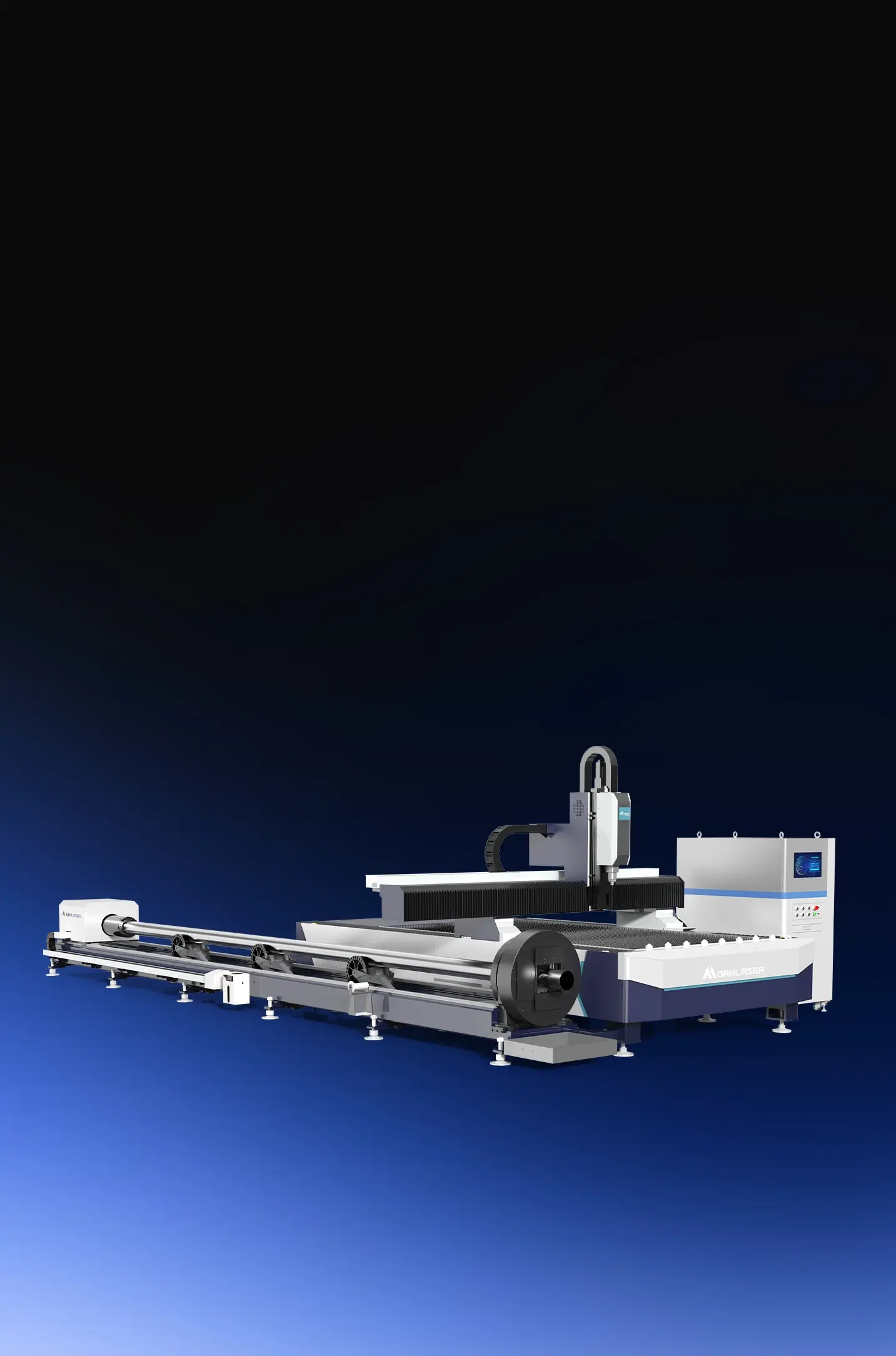

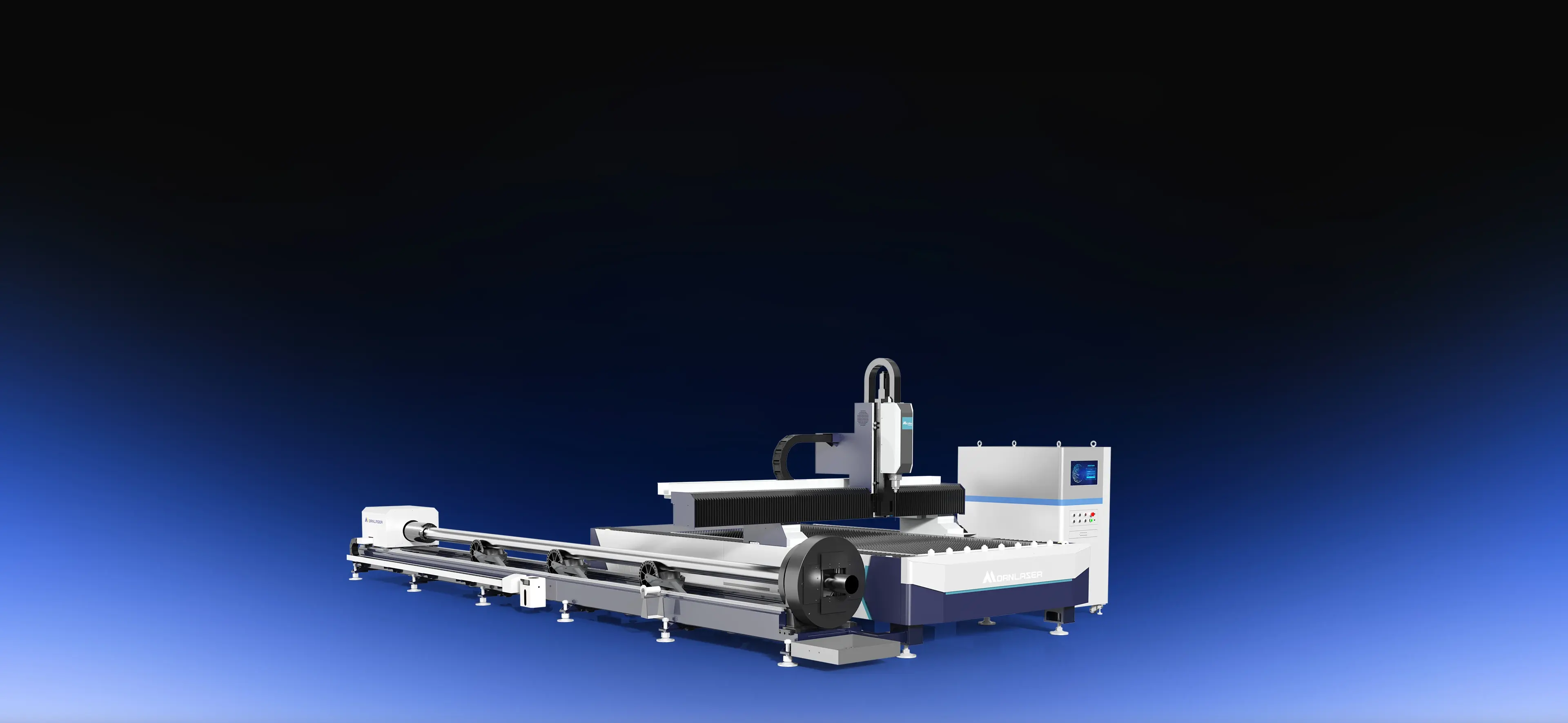

Sheet & Tube Integration

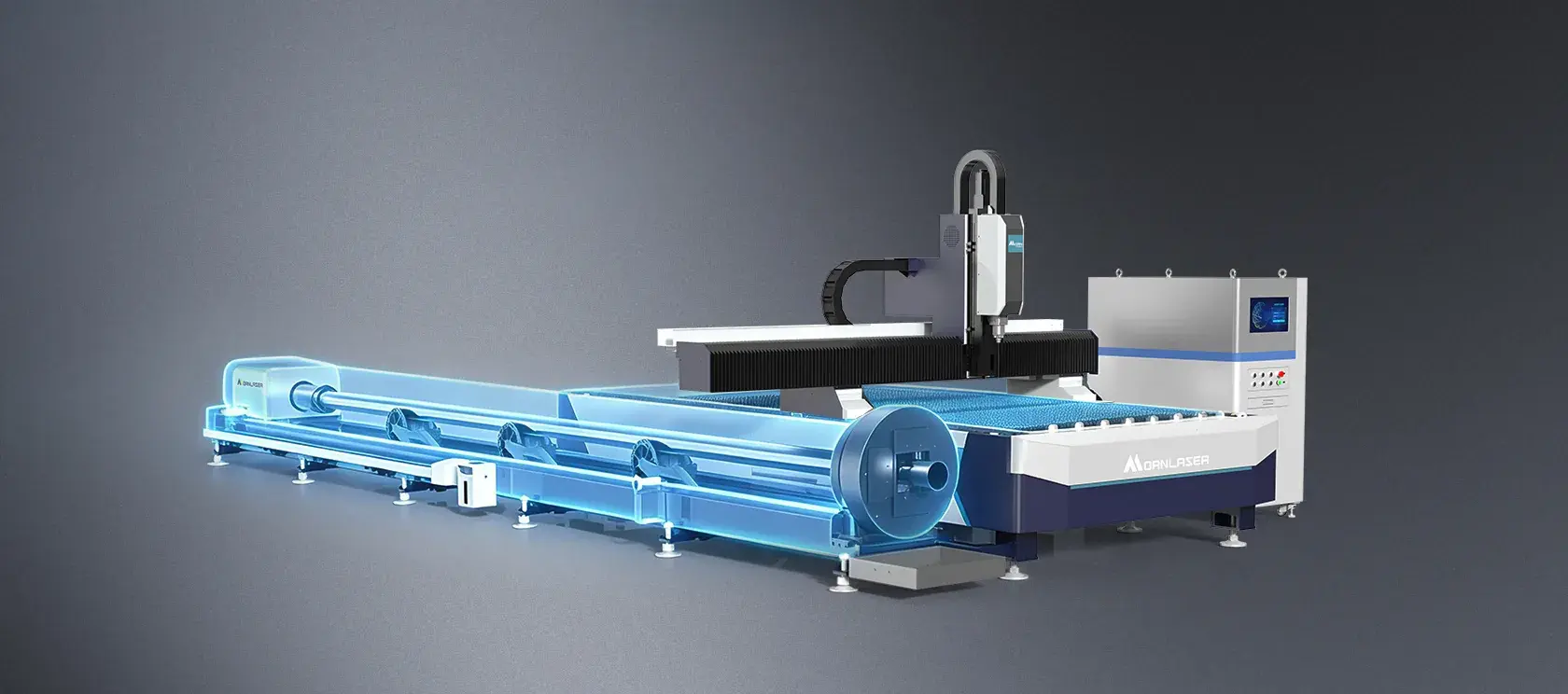

Combines sheet metal and tube cutting in one machine, offering a cost-effective and versatile solution for diverse processing needs. Compact design reduces footprint and optimizes workspace efficiency.

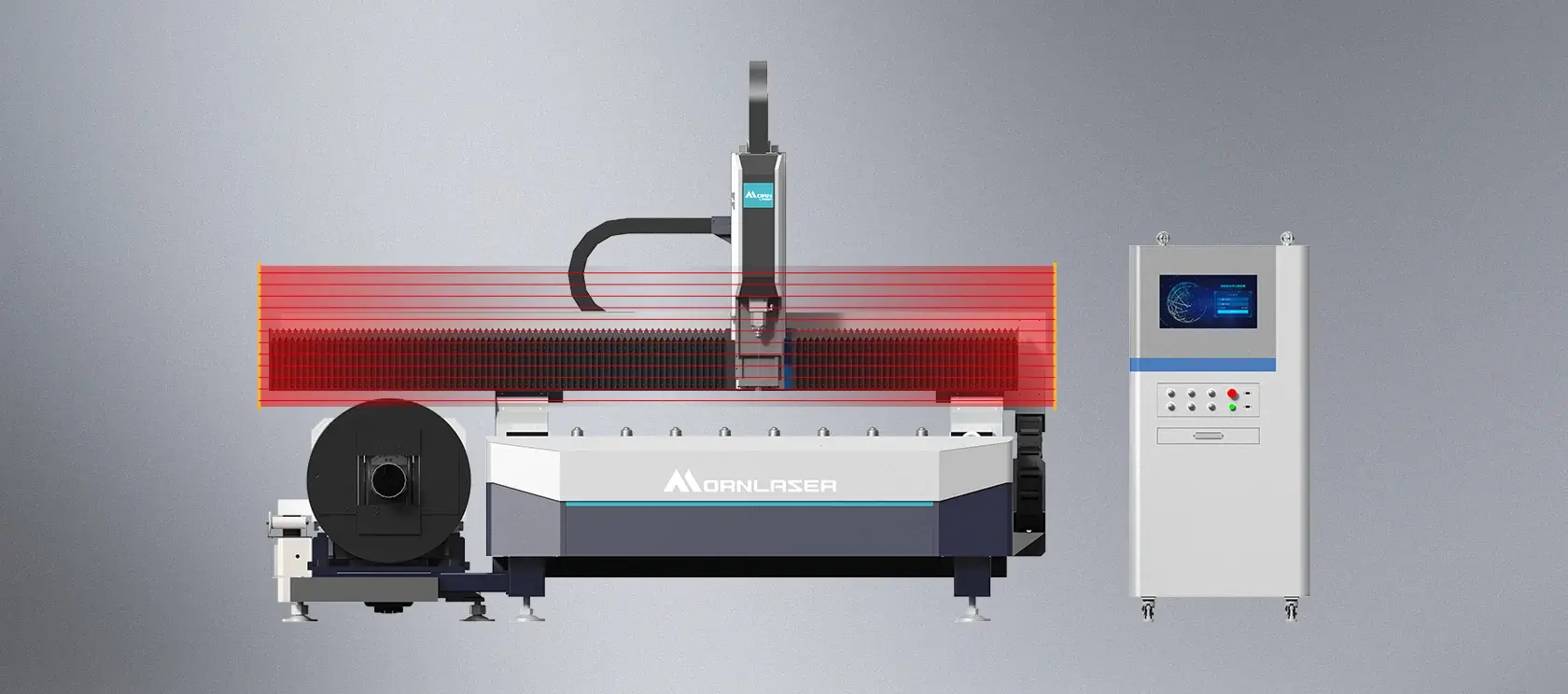

High-sensitivity safety light curtain ensures maximum protection for operators and equipment. The machine automatically stops when intrusion is detected in the working area.

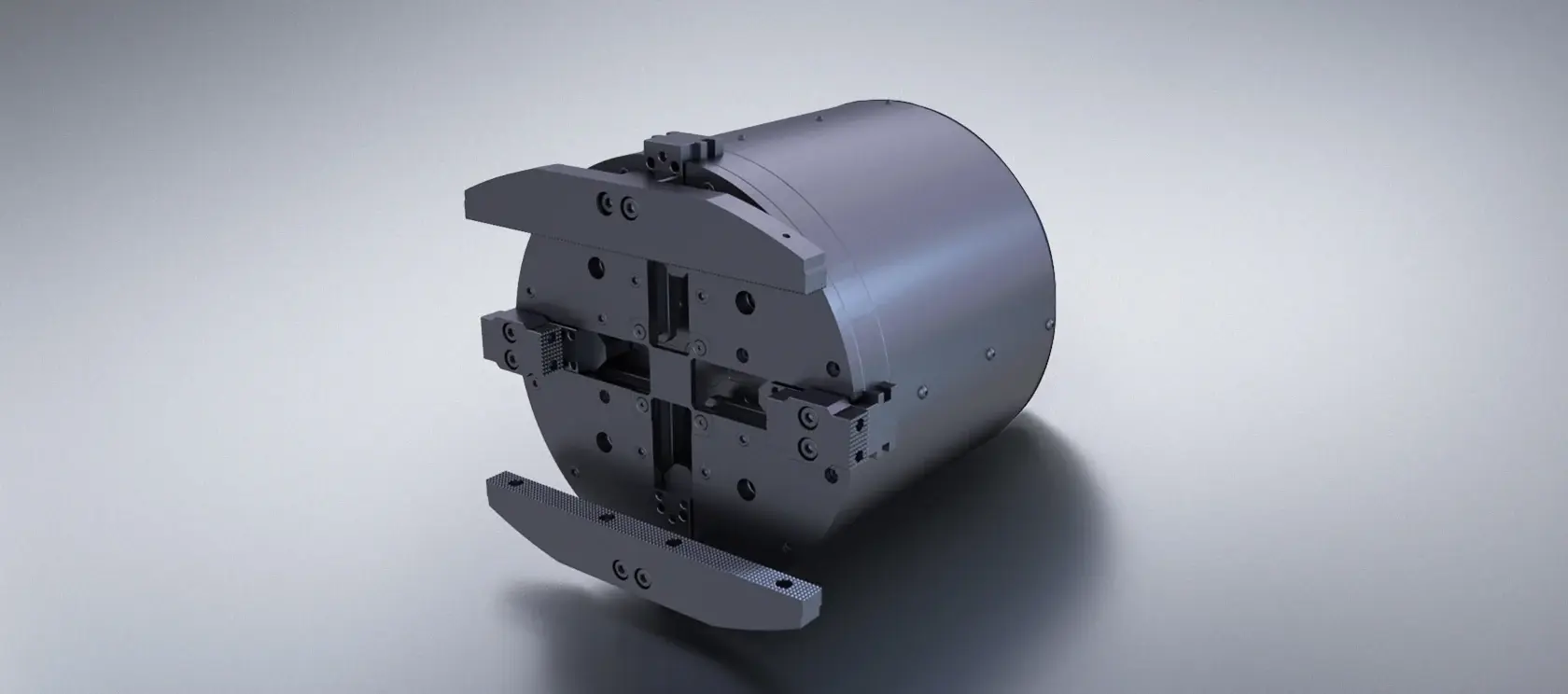

Automatically centers and clamps tubes with high precision, ensuring stable and accurate cutting. Quick pneumatic operation improves efficiency while reducing manual adjustment time.

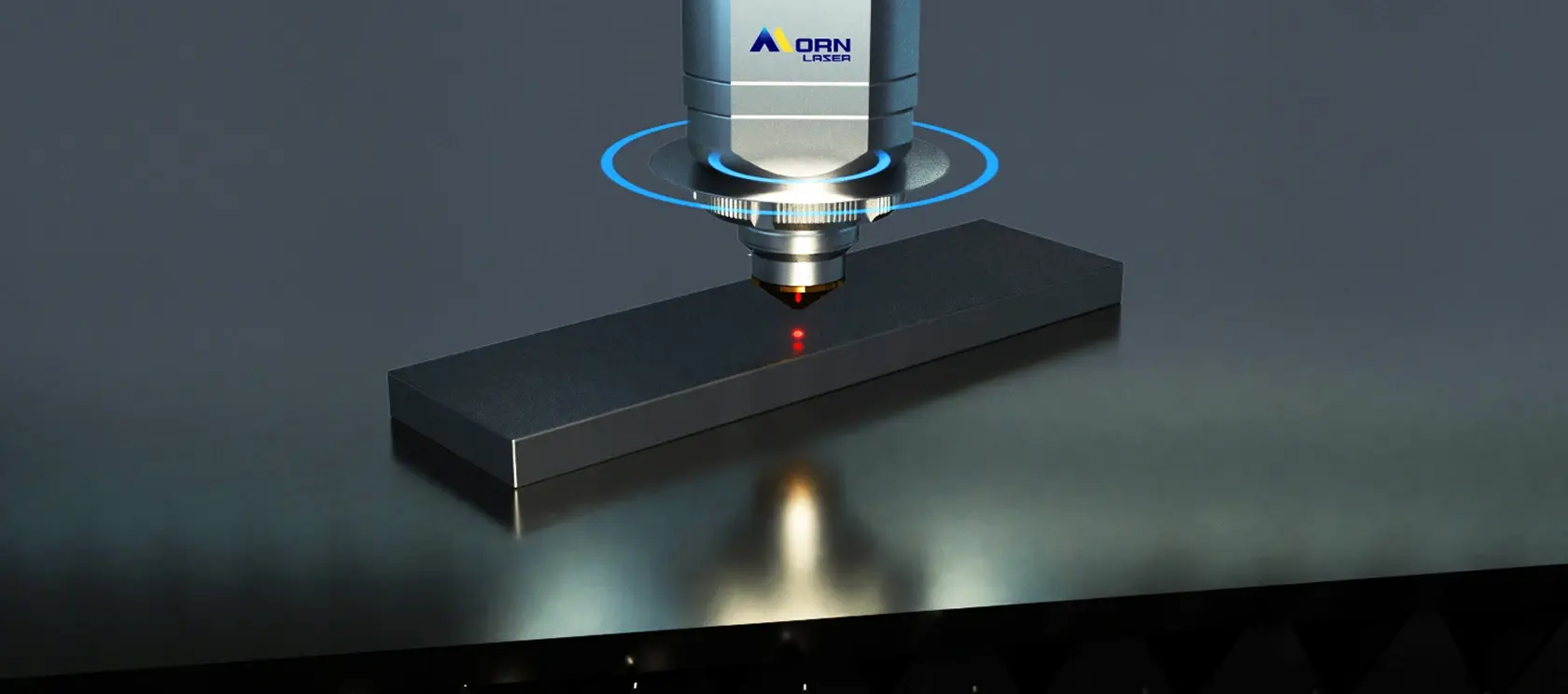

An intelligent collision avoidance system detects obstacles during machine travel, effectively protecting the cutting head and ensuring safe and stable operation.
Model | FA3015-FT63 | FA4020-FT63 | FA6025-FT63 |
|---|---|---|---|
Cutting Area(Length×Width) | 3050x1530mm | 4100x2100mm | 6100x2600mm |
Laser Power | 1000W-12000W | 1000W-12000W | 1000W-12000W |
Tube Diameter | Φ20mm-350mm | Φ20mm-350mm | Φ20mm-350mm |
X/Y Axis Re-positioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Max. Linkage Acceleration | 1.5G | 1.5G | 1.5G |
